75210 - Toro 48" TimeCutter HD MyRide Zero-Turn Mower (SN: 401000000 - 404313999) Deck Assembly Parts Diagram

48" TimeCutter HD MyRide Zero-Turn Mower

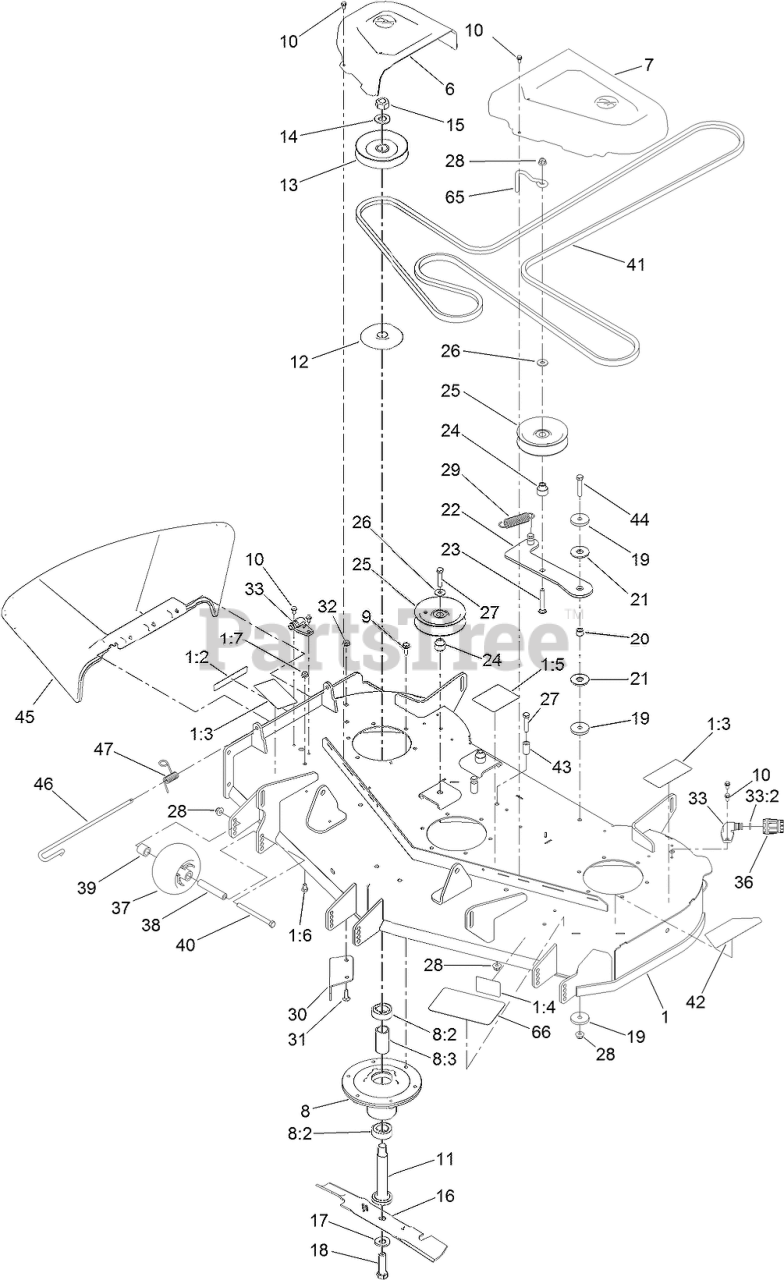

Deck Assembly Parts Diagram

  • Title

1

Toro 133-7066

DECK ASM

$1714.99

$

Usually ships in 3-6 days

0

1:2

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

1:3

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 5

0

1:4

Toro 130-0765

DECAL-SCALP, ANTI

$2.99

$

Usually ships in 3-6 days

0

1:5

Toro 117-1194

DECAL-ROUTING, BELT

$11.99

$

In Stock, only 2 left!

0

1:6

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

1:7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 133-9283

COVER-BELT, RH

$22.99

$

In Stock, only 1 left!

0

7

Toro 133-9282

COVER-BELT, LH

$26.99

$

In Stock, only 2 left!

0

8

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$117.99

$

In Stock, Qty 20+

0

8:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

8:3

Toro 115-2641

SPACER-BEARING
(Superseded to 138-7220)

$8.99

$

In Stock, Qty 18

0

9

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 115-2642

SHAFT-SPINDLE

$59.99

$

In Stock, Qty 20+

0

12

Toro 117-7210

SHIELD-BEARING
(Superseded to 138-7221)

$5.99

$

In Stock, Qty 20+

0

13

Toro 117-7326

PULLEY

$94.99

$

In Stock, Qty 10

0

14

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

15

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

16

Toro 117-7277-03

BLADE-HI FLO, 16.50 INCH

$25.99

$

In Stock, Qty 12

0

17

Toro 125-1736

WASHER-BELLEVILLE

$4.99

$

In Stock, Qty 20+

0

18

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

19

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

20

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

21

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

22

Toro 115-5054

ARM-IDLER

$79.99

$

In Stock, only 4 left!

0

23

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

24

Toro 115-2577

BUSHING-IDLER

$6.99

$

In Stock, Qty 20+

0

25

Toro 132-4718

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

0

26

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 108-4056

SPRING-EXTENSION

$9.49

$

In Stock, Qty 20+

0

30

Toro 117-7418-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

0

31

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro 133-9289

FITTING-WASHOUT

$7.49

$

In Stock, Qty 20+

0

33:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

36

Toro 95-3270

CONNECTOR-HOSE

$27.99

$

In Stock, Qty 20+

0

37

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

38

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

39

Toro 104-0892

SPACER-AXLE, REAR

$5.99

$

In Stock, Qty 17

0

40

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

41

Toro 133-7075

V-BELT

$175.99

$

In Stock, only 2 left!

0

42

Toro 119-3382

DECAL-DECK

$13.99

$

Usually ships in 3-6 days

0

43

Toro 1-603401

SPACER

$7.49

$

In Stock, Qty 20+

0

44

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 133-1212

DEFLECTOR-DISCHARGE

$88.99

$

In Stock, only 4 left!

0

46

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 4 left!

0

47

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, Qty 17

0

65

Toro 136-5615

GUIDE-BELT, IDLER

$7.49

$

In Stock, Qty 14

0

66

Toro 133-9313

TREAD-STEP

$4.49

$

Usually ships in 3-6 days
