75210 - Toro 48" TimeCutter HD MyRide Zero-Turn Mower (SN: 404314000 - 999999999) Deck Lift Assembly Parts Diagram

48" TimeCutter HD MyRide Zero-Turn Mower

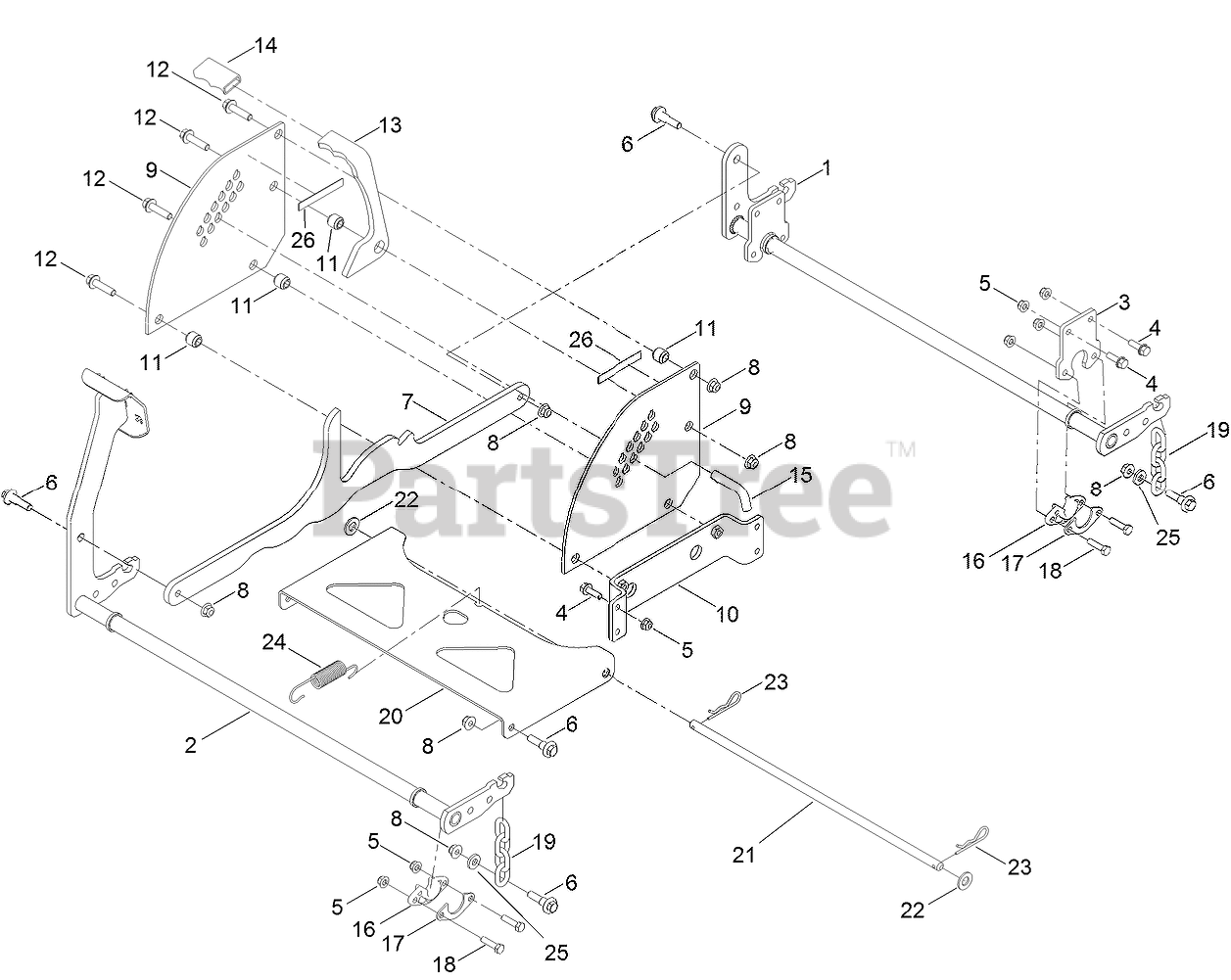

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 137-2020-03

PIVOT-REAR

$85.99

$

Usually ships in 3-6 days

0

2

Toro 133-4430-03

PIVOT-FRONT

$125.99

$

In Stock, only 2 left!

0

3

Toro 137-2021-03

PLATE

$8.99

$

Usually ships in 3-6 days

0

4

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

7

Toro 127-3390-03

LINK-HOC

$117.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 127-3389-03

PLATE-DECK, LIFT

$60.99

$

Usually ships in 3-6 days

0

10

Toro 133-7049

PLATE-LIFT

$25.99

$

Usually ships in 3-6 days

0

11

Toro 138-7201

SPACER-DOUBLE STEP

$2.99

$

Usually ships in 3-6 days

0

12

Toro 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

13

Toro 138-7202

TRANSPORT LOCK-HOC

$12.99

$

Usually ships in 3-6 days

0

14

Toro 116-4312

GRIP-FLAT

$3.99

$

Usually ships in 3-6 days

0

15

Toro 138-7203

PIN-HOC

$4.99

$

Usually ships in 3-6 days

0

16

Toro 115-5065

BUSHING-FLANGE

$8.49

$

In Stock, Qty 20+

0

17

Toro 138-7204

GUSSET-DECK LIFT

$2.99

$

In Stock, only 2 left!

0

18

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19

Toro 138-7205

CHAIN-DECKLIFT, 4-LINK

$8.49

$

Usually ships in 3-6 days

0

20

Toro 133-4311-01

PAN-PIVOT, DECK

$67.99

$

In Stock, only 2 left!

0

21

Toro 133-7071

ROD-PIVOT, DECK

$19.99

$

In Stock, only 2 left!

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

24

Toro 138-7206

SPRING-EXTENSION

$7.49

$

In Stock, only 2 left!

0

25

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 7

0

26

Toro 130-0734

PAD-RUBBER

$2.99

$

Usually ships in 3-6 days

0
