Toro 75316 TA (MR 4800) - Toro 48" Titan Zero-Turn Mower (SN: 413000000 - 999999999) 48 Inch Deck Assembly Parts Lookup with Diagrams

1

Toro 140-0352

48in DECK ASM

$1691.99

$

Usually ships in 3-6 days

6

Toro 133-9283

COVER-BELT, RH

$22.99

$

In Stock, only 1 left!

7

Toro 133-9282

COVER-BELT, LH

$26.99

$

In Stock, only 2 left!

8

Toro 139-2357

SPINDLE ASM

$117.99

$

In Stock, Qty 20+

8:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

8:3

Toro 138-7220

SPACER-BEARING

$8.99

$

In Stock, Qty 18

9

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

11

Toro 115-2642

SHAFT-SPINDLE

$59.99

$

In Stock, Qty 20+

12

Toro 138-7221

SHIELD-BEARING

$5.99

$

In Stock, Qty 20+

13

Toro 139-7456

PULLEY

$25.99

$

Usually ships in 3-6 days

14

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

15

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

16

Toro 117-7277-03

BLADE-HI FLO, 16.50 INCH

$25.99

$

In Stock, Qty 12

18

Toro 145-0412

SCREW-BLADE

$7.49

$

In Stock, Qty 12

19

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

20

Toro 138-7225

SPACER

$5.99

$

In Stock, only 2 left!

21

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

22

Toro 138-7226

IDLER ARM ASM

$52.99

$

In Stock, only 2 left!

23

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

24

Toro 138-7227

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

25

Toro 132-4718

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

26

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

29

Toro 138-7228

SPRING-EXTENSION

$5.99

$

In Stock, Qty 20+

30

Toro 117-7418-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

31

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

37

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

38

Toro 138-7229

TUBE-SPANNER

$6.99

$

In Stock, Qty 9

39

Toro 104-0892

SPACER-AXLE, REAR

$5.99

$

In Stock, Qty 17

40

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

41

Toro 133-7075

V-BELT

$175.99

$

In Stock, only 2 left!

42

Toro 140-2148

DECAL-DECK

$8.49

$

Usually ships in 3-6 days

43

Toro 138-7230

SPACER-FENDER

$5.49

$

Usually ships in 3-6 days

44

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

45

Toro 117-1270

DEFLECTOR

$87.99

$

Usually ships in 3-6 days

46

Toro 138-7231

PIN-CHUTE

$9.49

$

In Stock, only 2 left!

47

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, Qty 17

48

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

65

Toro 136-5615

GUIDE-BELT, IDLER

$7.49

$

In Stock, Qty 14

66

Toro 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 2 left!

67

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 1 left!

68

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

69

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$66.99

$

In Stock, only 2 left!

70

Toro 115-5048-03

PLATE-DEFLECTOR

$49.99

$

In Stock, only 2 left!

71

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

72

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

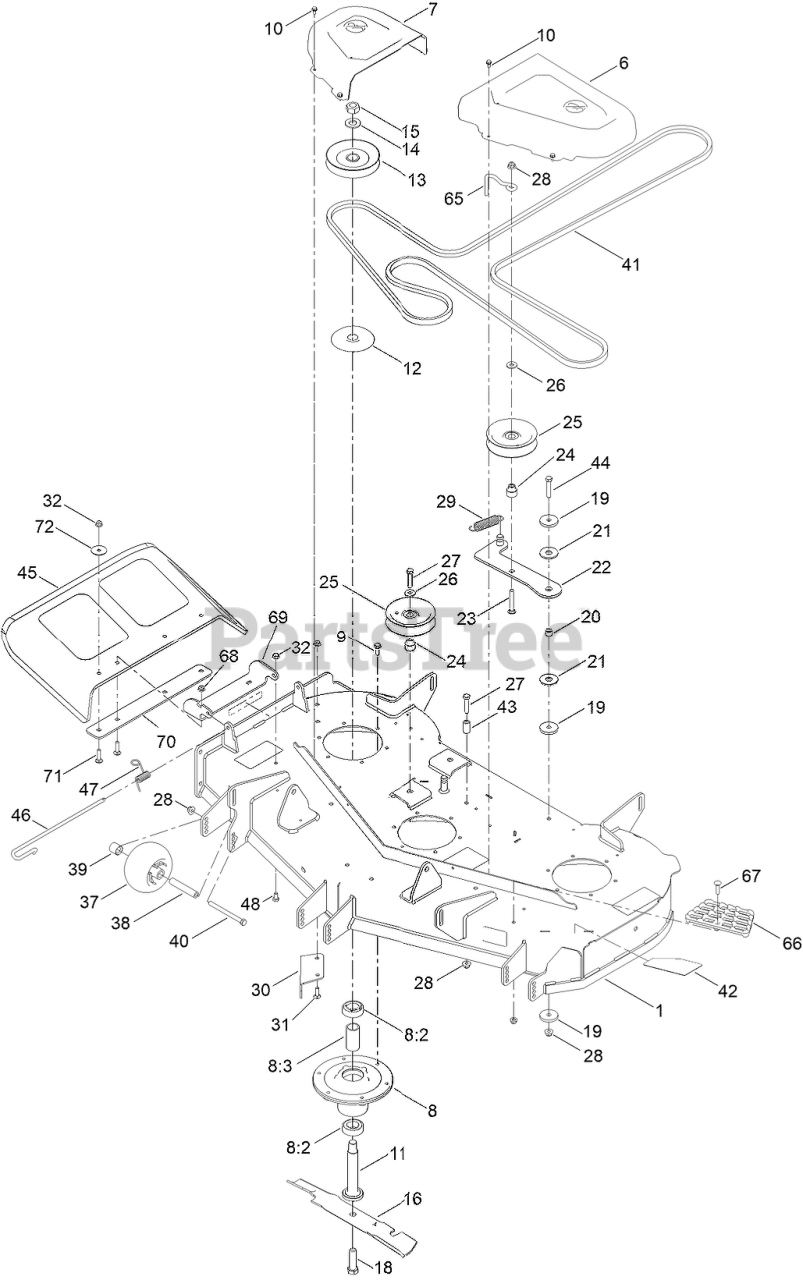

75316 TA (MR 4800) - Toro 48" Titan Zero-Turn Mower (SN: 413000000 - 999999999) 48 Inch Deck Assembly Parts Diagram

48 Inch Deck Assembly Parts Diagram
