75734 - Toro 34" TimeCutter Zero-Turn Mower (SN: 414000000 - 414557041) Fuel Pod Assembly Parts Diagram

34" TimeCutter Zero-Turn Mower

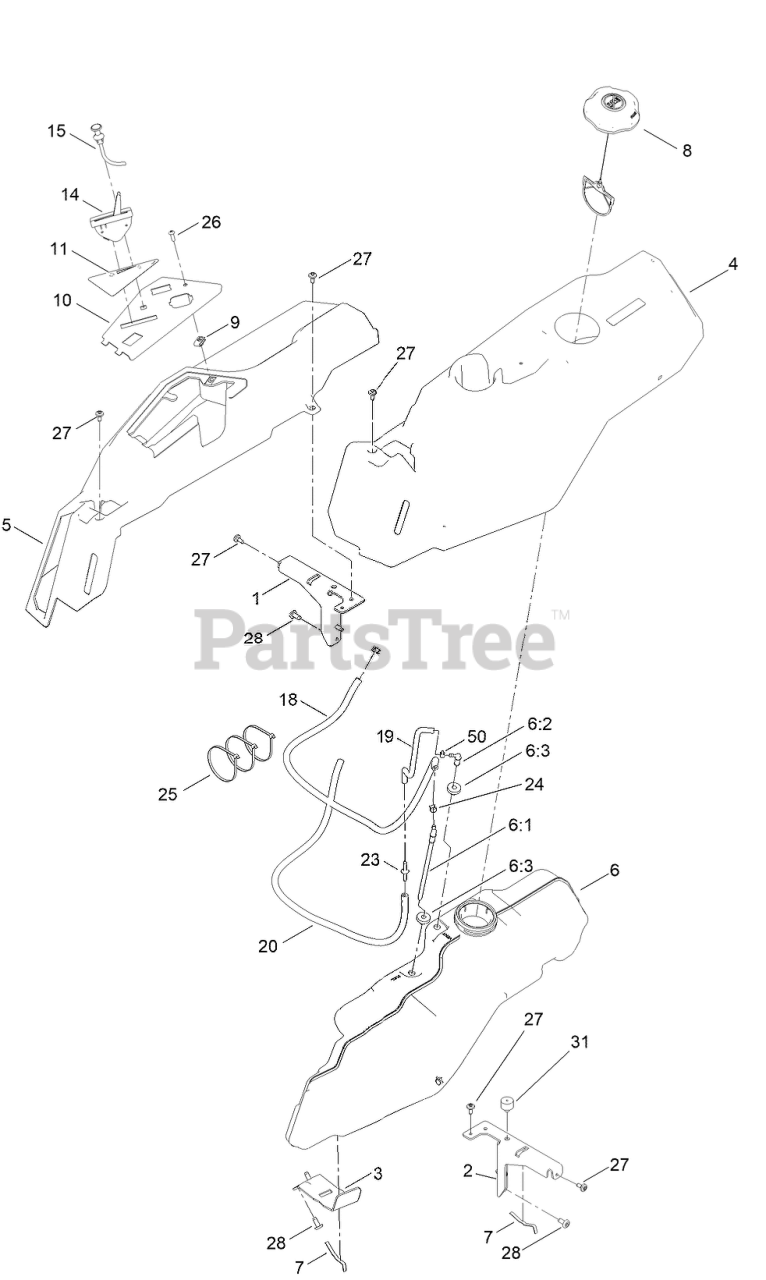

Fuel Pod Assembly Parts Diagram

  • Title

1

Toro 138-6070-03

SUPPORT-POD, RH

$19.99

$

Usually ships in 3-6 days

0

2

Toro 138-6071-03

SUPPORT-POD, LH

$19.99

$

Usually ships in 3-6 days

0

3

Toro 139-3271-03

SUPPORT-TANK, FUEL

$10.99

$

Usually ships in 3-6 days

0

4

Toro 138-6074

POD-LH

$71.99

$

In Stock, only 1 left!

0

5

Toro 138-6075

POD-RH

$71.99

$

Usually ships in 3-6 days

0

6

Toro 144-5304

TANK-FUEL ASM

$193.99

$

In Stock, only 1 left!

0

6:1

Toro 139-1091

CONNECTOR-ELBOW, 90 DEG

$9.49

$

In Stock, only 2 left!

0

6:2

Toro 144-5302

FITTING-ELBOW 90

$7.49

$

Usually ships in 3-6 days

0

6:3

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

7

Toro 609830

SPRING

$5.99

$

In Stock, Qty 11

0

8

Toro 137-4119

CAP-FUEL, RATCHETING

$30.99

$

In Stock, Qty 20+

0

9

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Toro 139-2380-03

PANEL - CONTROL

$25.99

$

Usually ships in 3-6 days

0

11

Toro 139-2391

DECAL-PANEL, CONTROL

$5.99

$

In Stock, only 2 left!

0

14

Toro 139-3267

CABLE-THROTTLE
(Superseded to 147-7696)

$39.99

$

In Stock, Qty 5

0

15

Toro 139-2402

CABLE-CHOKE

$25.99

$

In Stock, Qty 6

0

18

Toro 109-0307

HOSE-FUEL

$25.99

$

In Stock, only 2 left!

0

19

Toro 136-6345

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

20

Toro 119-6074

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

23

Toro 144-1983

ADAPTER ORIFICE

$1.49

$

In Stock, only 2 left!

0

24

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

25

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

26

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

27

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

28

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

31

Toro 120-7893

BUMPER-GROMMET

$5.99

$

Usually ships in 3-6 days

0

50

Toro 2412-80

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 6

0
