75762 - Toro 60" TimeCutter Zero-Turn Mower (SN: 414000000 - 999999999) Deck Lift Assembly Parts Diagram

60" TimeCutter Zero-Turn Mower

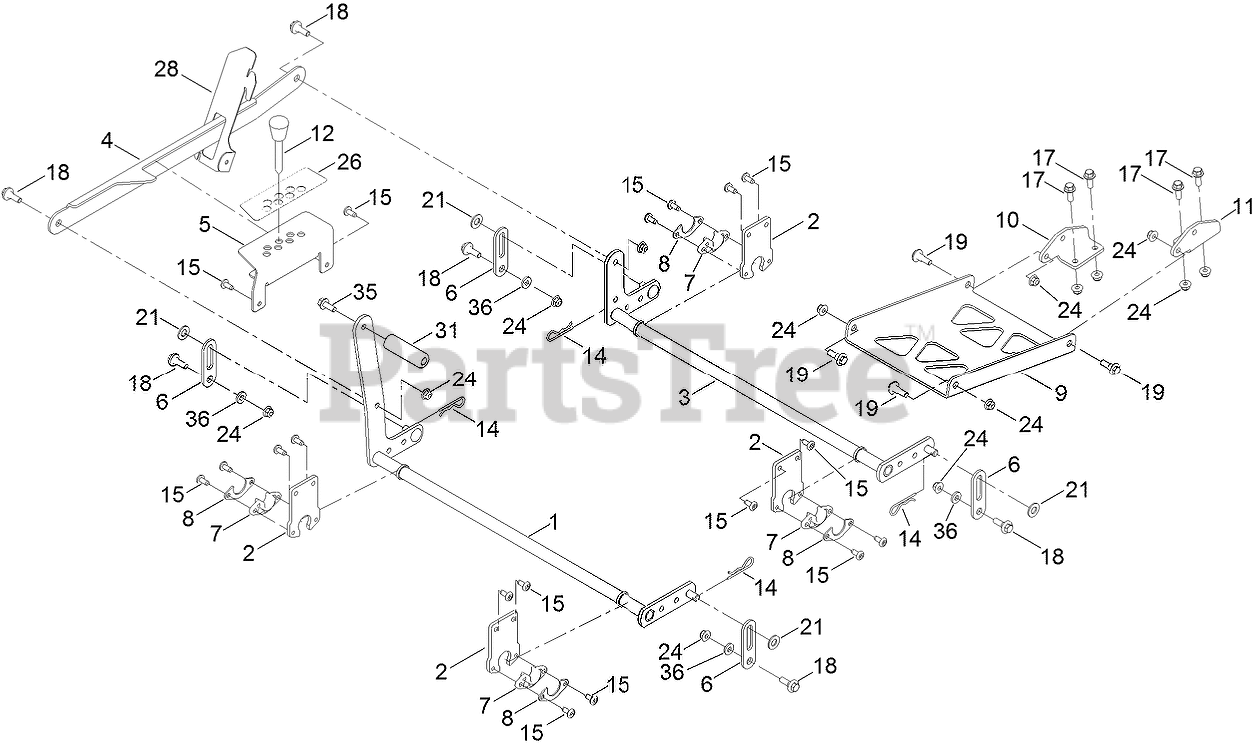

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 138-2503-03

PIVOT FRONT ASM

$96.99

$

Usually ships in 3-6 days

0

2

Toro 138-9804-03

SUPPORT-CROSS, SHAFT

$12.99

$

Usually ships in 3-6 days

0

3

Toro 138-2504-03

REAR PIVOT ASM

$68.99

$

Usually ships in 3-6 days

0

4

Toro 137-5091-03

LINK-HOC

$49.99

$

Usually ships in 3-6 days

0

5

Toro 137-5092-03

BRACKET-HOC

$38.99

$

Usually ships in 3-6 days

0

6

Toro 137-7001-03

LINK-DECKLIFT

$26.99

$

Usually ships in 3-6 days

0

7

Toro 139-5872

BEARING-FLANGE

$1.99

$

In Stock, Qty 6

0

8

Toro 138-7204

GUSSET-DECK LIFT

$2.99

$

In Stock, only 2 left!

0

9

Toro 139-2435-03

PAN-DECK PIVOT

$125.99

$

Usually ships in 3-6 days

0

10

Toro 139-3200-01

MOUNT-PAN, LH

$27.99

$

Usually ships in 3-6 days

0

11

Toro 139-3201-01

MOUNT-PAN, RH

$27.99

$

Usually ships in 3-6 days

0

12

Toro 140-2146

HOC PIN ASM

$18.99

$

In Stock, only 2 left!

0

14

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

15

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

17

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

18

Toro 137-9847

SCREW-SHOULDER

$1.49

$

In Stock, Qty 20+

0

19

Toro 109-9840

SCREW-SHOULDER, HHF

$5.99

$

In Stock, Qty 20+

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 139-5892

DECAL-HOC

$8.99

$

Usually ships in 3-6 days

0

28

Toro 139-5804-03

BRACKET-HOC

$28.99

$

Usually ships in 3-6 days

0

31

Toro 139-7452

PEDAL-FOOT LIFT

$25.99

$

Usually ships in 3-6 days

0

35

Toro 139-2597

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

36

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0
