75841 - Toro 42" eTimeCutter Zero-Turn Mower (SN: 416499999 - 417399999) Frame Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

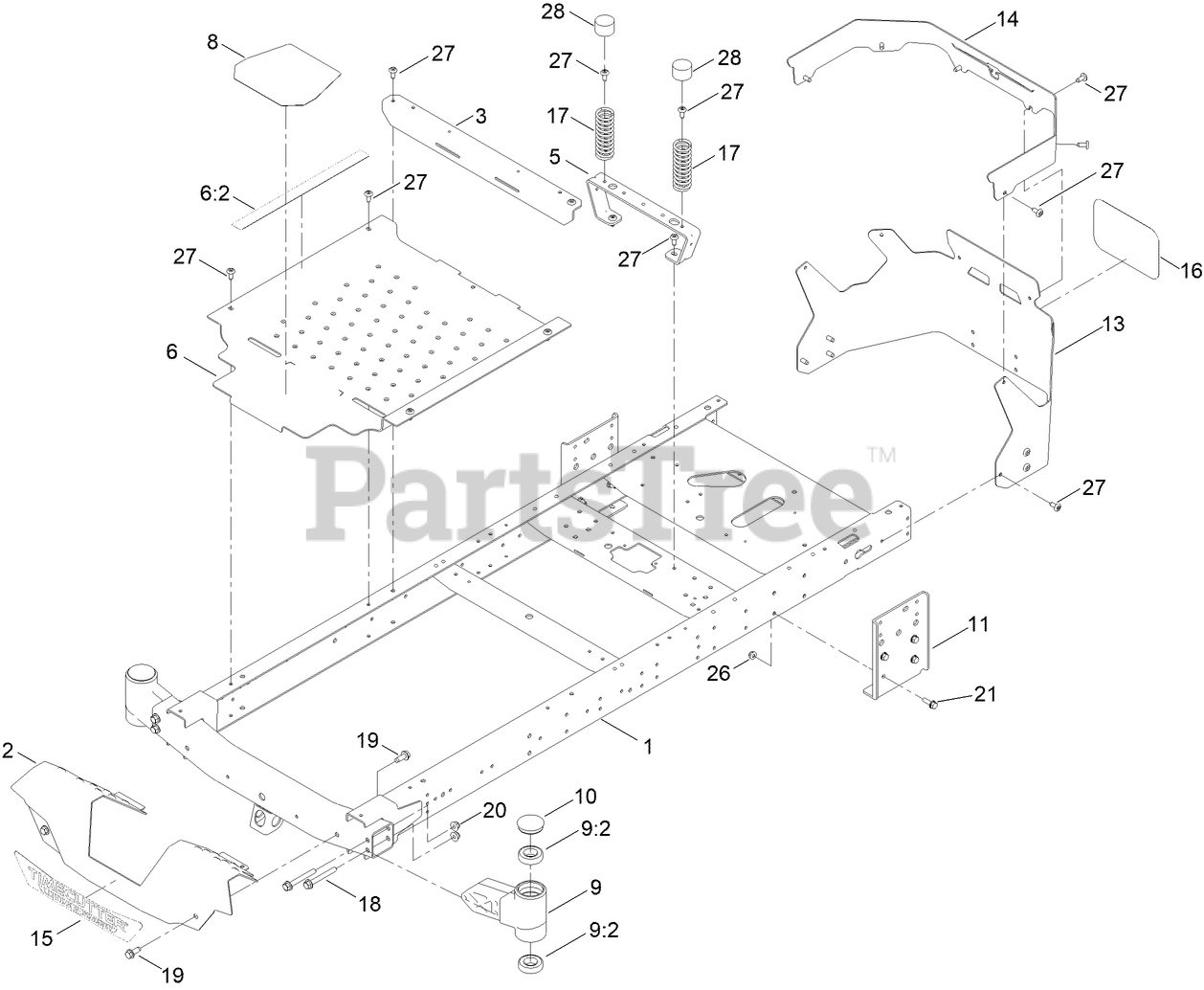

Frame Assembly Parts Diagram

  • Title

1

Toro 147-3005-01

FRAME ASM [RED]

$563.99

$

Usually ships in 3-6 days

0

2

Toro 138-9827-07

FOOTREST

$64.99

$

Usually ships in 3-6 days

0

3

Toro 138-9791-01

BRACE-CROSS

$33.99

$

Usually ships in 3-6 days

0

5

Toro 138-6036-03

SUPPORT-SEAT

$22.99

$

Usually ships in 3-6 days

0

6

Toro 161-4457

PAN-FLOOR ASM

$223.99

$

Usually ships in 3-6 days

0

6:2

Toro 147-7617

DECAL - WARNING

$12.99

$

Usually ships in 3-6 days

0

8

Toro 139-3220

TREAD-STEP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 140-2098

AXLE STUB ASM

$65.99

$

In Stock, only 2 left!

0

9:2

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

10

Toro 138-7200

CAP-GREASE

$5.99

$

In Stock, only 2 left!

0

11

Toro 145-0415-01

PLATE-MOUNT, DRIVE

$40.99

$

Usually ships in 3-6 days

0

13

Toro 147-5205-07

GUARD-REAR

$124.99

$

Usually ships in 3-6 days

0

14

Toro 147-7579-01

GUARD-REAR, UPPER

$65.99

$

Usually ships in 3-6 days

0

15

Toro 147-8705

DECAL-TIMECUTTER

$25.99

$

Usually ships in 3-6 days

0

16

Toro 145-1978

DECAL-LOGO, SILVER

$9.49

$

Usually ships in 3-6 days

0

17

Toro 138-2548

SPRING-COMPRESSION

$8.99

$

In Stock, Qty 8

0

18

Toro 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

19

Toro 139-2428

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

20

Toro 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

21

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

26

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

28

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 15

0
