75841 - Toro 42" eTimeCutter Zero-Turn Mower (SN: 416499999 - 417399999) Motion Control Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

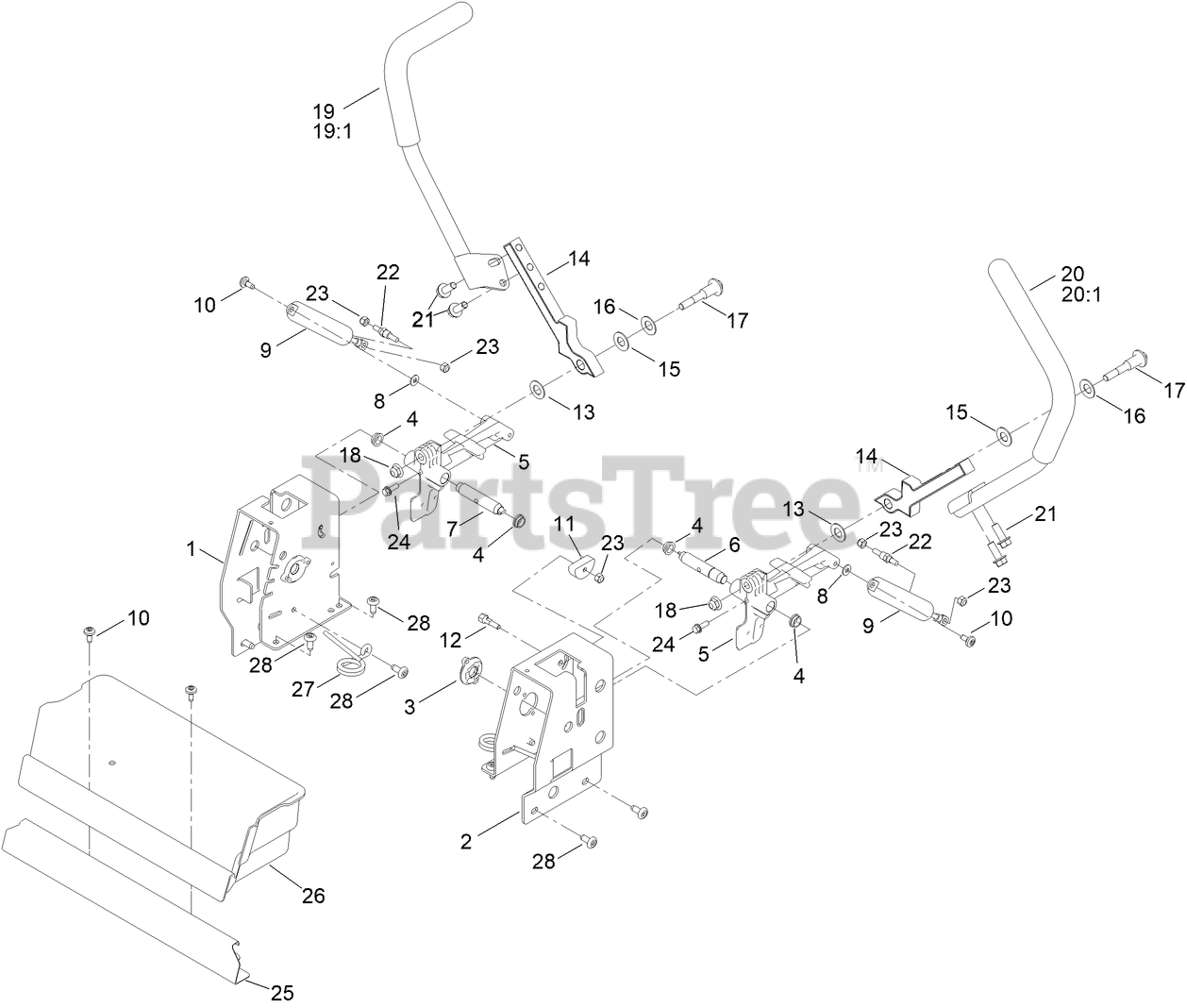

Motion Control Assembly Parts Diagram

  • Title

1

Toro 140-8322-03

PLATE-CONTROL BOX, RH

$39.99

$

Usually ships in 3-6 days

0

2

Toro 140-8342-03

PLATE-CONTROL BOX, LH

$39.99

$

Usually ships in 3-6 days

0

3

Toro 147-7552

SPACER-SENSOR

$0.99

$

Usually ships in 3-6 days

0

4

Toro 147-7551

BUSHING-FLANGE

$1.99

$

Usually ships in 3-6 days

0

5

Toro 147-2903

ARM-ACTUATOR

$38.99

$

Usually ships in 3-6 days

0

6

Toro 147-3009

PIN-LEVER PIVOT, LH

$20.99

$

Usually ships in 3-6 days

0

7

Toro 147-3010

PIN-LEVER PIVOT, RH

$20.99

$

Usually ships in 3-6 days

0

8

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

9

Toro 132-6853

DAMPER-NON CAVITATING

$38.99

$

In Stock, Qty 8

0

10

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Toro 139-5803

ECCENTRIC

$1.49

$

Usually ships in 3-6 days

0

12

Toro 139-5811

BOLT-PIVOT, ECCENTRIC

$1.99

$

Usually ships in 3-6 days

0

13

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, Qty 12

0

14

Toro 133-9299-05

ARM-CONTROL

$54.99

$

In Stock, Qty 20+

0

15

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 5

0

16

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

17

Toro 139-2556

BOLT-PIVOT

$5.99

$

In Stock, only 2 left!

0

18

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 133-7057

HANDLE-CONTROL, RH

$71.99

$

In Stock, Qty 7

0

19:1

Toro 121-0726

GRIP

$15.99

$

In Stock, Qty 7

0

20

Toro 133-7055

HANDLE-CONTROL, LH

$71.99

$

In Stock, Qty 7

0

20:1

Toro 121-0726

GRIP

$15.99

$

In Stock, Qty 7

0

21

Toro 139-2597

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

22

Toro 138-7215

STUD-DAMPER

$2.99

$

In Stock, Qty 20+

0

23

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

24

Toro 119-1138

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

25

Toro 139-3280-01

PLATE-KICK

$25.99

$

Usually ships in 3-6 days

0

26

Toro 145-0421

BOX-STORAGE

$18.99

$

Usually ships in 3-6 days

0

27

Toro 138-7539

SPRING-TORSION

$7.49

$

Usually ships in 3-6 days

0

28

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0
