75851 - Toro 54" eTimeCutter MyRide Zero-Turn Mower (SN: 416400000 - 417399999) Caster Wheel Assembly Parts Diagram

54" eTimeCutter MyRide Zero-Turn Mower

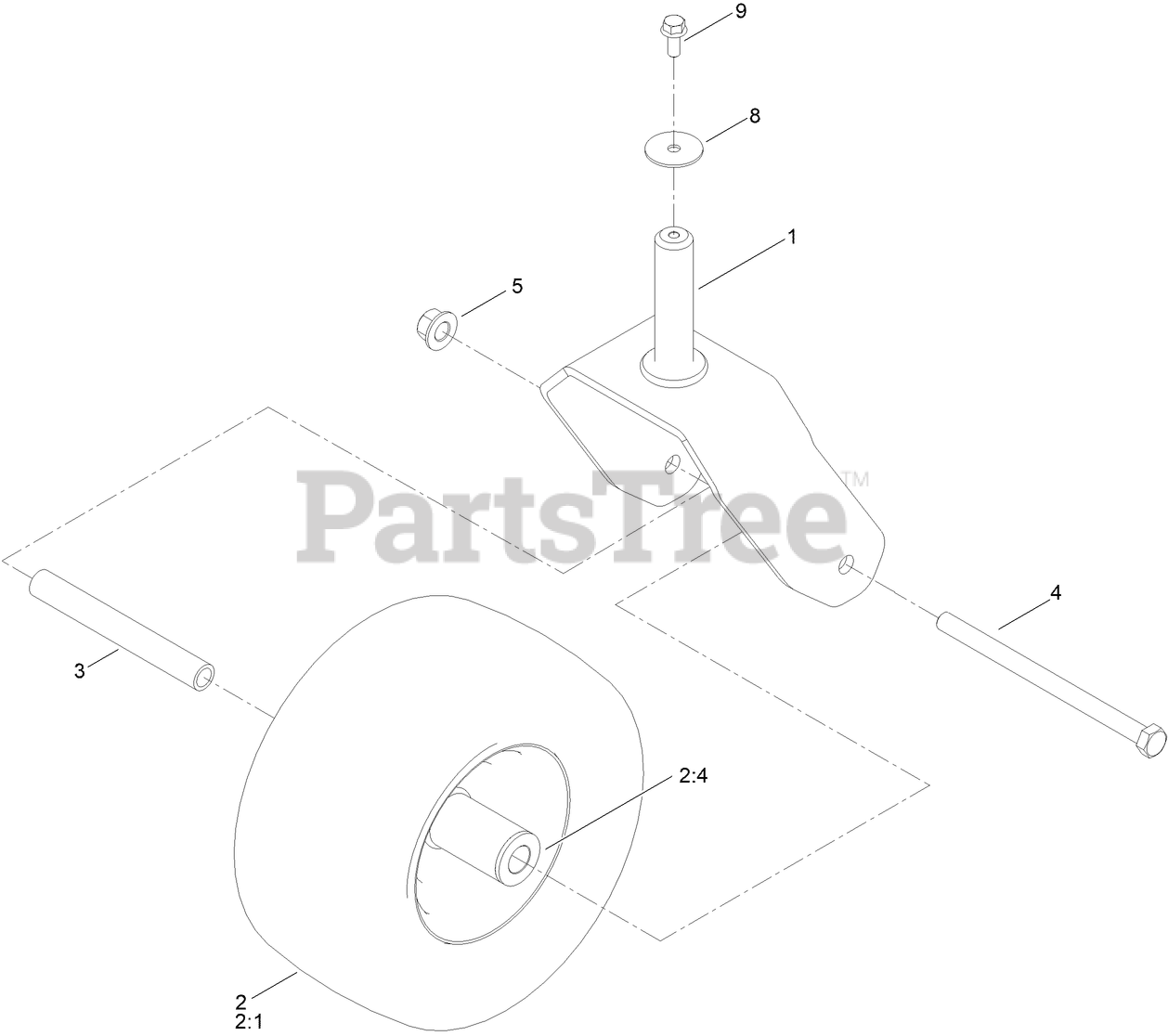

Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 138-9839-01

FORK ASM

$76.99

$

In Stock, Qty 6

0

2

Toro 139-5843

TIRE ASM

$102.99

$

In Stock, Qty 7

0

2:1

Toro 140-0374

TIRE

$75.99

$

In Stock, only 2 left!

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0

2:4

Toro 114-1640

BUSHING-FLANGE

$13.99

$

In Stock, Qty 20+

0

2:5

Toro 302-5

FITTING-GREASE

Note: Not illustrated

$3.99

$

In Stock, Qty 20+

0

3

Toro 138-9803

SPACER-SPANNER

$9.49

$

Usually ships in 3-6 days

0

4

Toro 139-2608

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

5

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 115-1151

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

9

Toro 139-2598

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0
