76401 - Toro 48" Titan Zero-Turn Mower (SN: 415400000 - 417199999) Decklift Assembly Parts Diagram

48" Titan Zero-Turn Mower

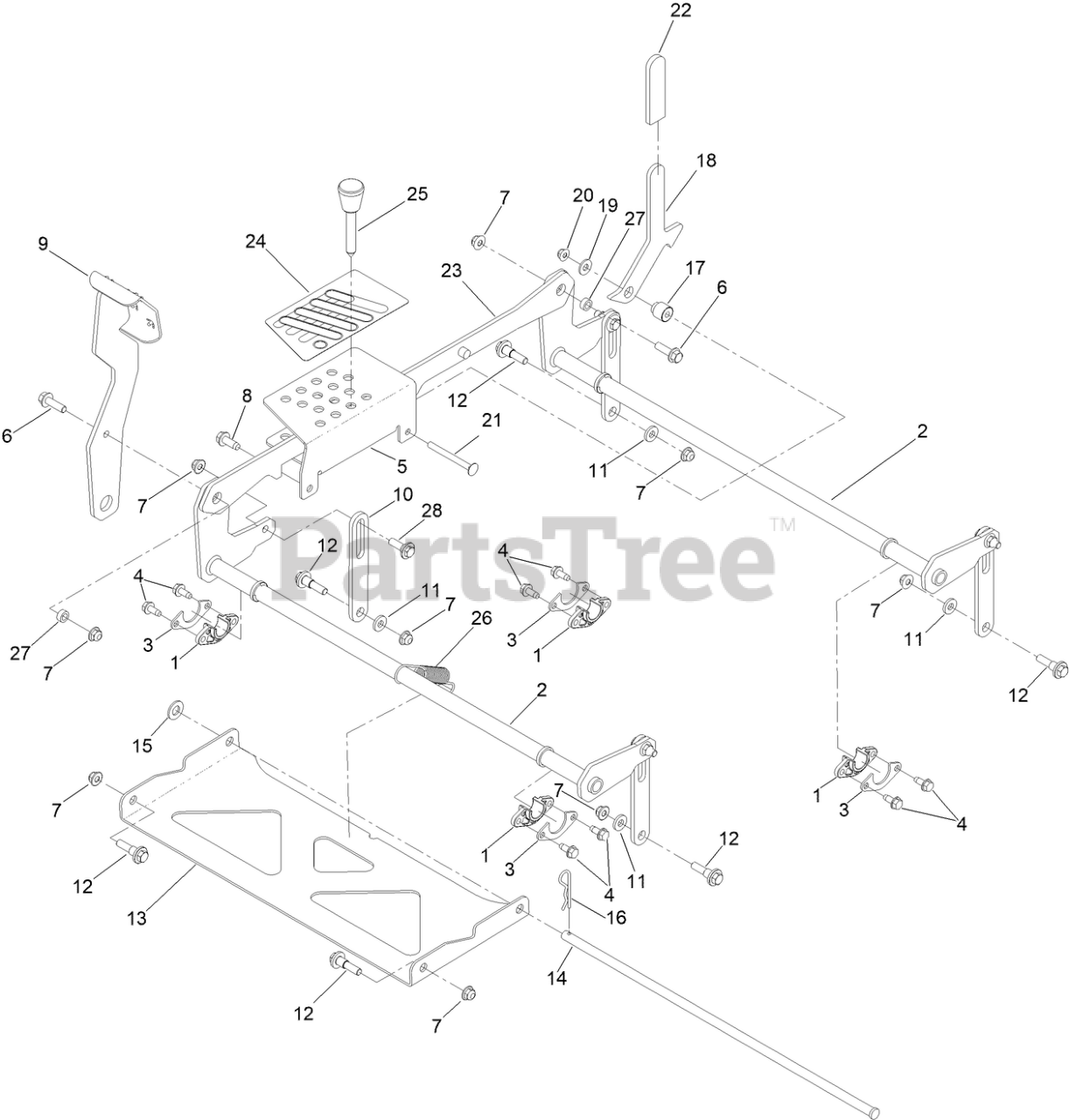

Decklift Assembly Parts Diagram

  • Title

1

Toro 139-5872

BEARING-FLANGE

$1.99

$

In Stock, Qty 6

0

2

Toro 161-4632-01

PIVOT ASM-DECKLIFT [RED]

$86.99

$

Usually ships in 3-6 days

0

3

Toro 138-7204

GUSSET-DECK LIFT

$2.99

$

In Stock, only 2 left!

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 145-6260-01

BRACKET-HOC

$34.99

$

Usually ships in 3-6 days

0

6

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

7

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 139-2428

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

9

Toro 145-6278-01

PEDAL ASM [RED]

$27.99

$

Usually ships in 3-6 days

0

10

Toro 161-4635-01

LINK-HOC

$9.49

$

Usually ships in 3-6 days

0

11

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 7

0

12

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

13

Toro 145-6248-03

PAN-DECK PIVOT

$66.99

$

Usually ships in 3-6 days

0

14

Toro 145-6288

PIN-DECK

$17.99

$

Usually ships in 3-6 days

0

15

Toro 139-2611

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

16

Toro 139-2562

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

17

Toro 145-6282

SPACER-STEPPED

$2.49

$

Usually ships in 3-6 days

0

18

Toro 145-6279

PLATE-TRANSPORT LOCK

$14.99

$

Usually ships in 3-6 days

0

19

Toro 137-3082

WASHER-PLAIN

$0.99

$

In Stock, only 1 left!

0

20

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 138-0741

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

22

Toro 140-0413

GRIP-HANDLE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 145-6262-01

LINK ASM-HOC [RED]

$58.99

$

Usually ships in 3-6 days

0

24

Toro 147-2867

DECAL-HOC, TITAN

$11.99

$

Usually ships in 3-6 days

0

25

Toro 140-2146

HOC PIN ASM

$18.99

$

In Stock, only 2 left!

0

26

Toro 138-7206

SPRING-EXTENSION

$7.49

$

In Stock, only 2 left!

0

27

Toro 140-2093

SPACER

$1.49

$

In Stock, Qty 7

0

28

Toro 610646

BOLT

$8.49

$

Usually ships in 3-6 days

0
