76511 - Toro 54" Titan MyRide Zero-Turn Mower (SN: 418000000 - 418311639) Engine and Muffler Assembly Parts Diagram

54" Titan MyRide Zero-Turn Mower

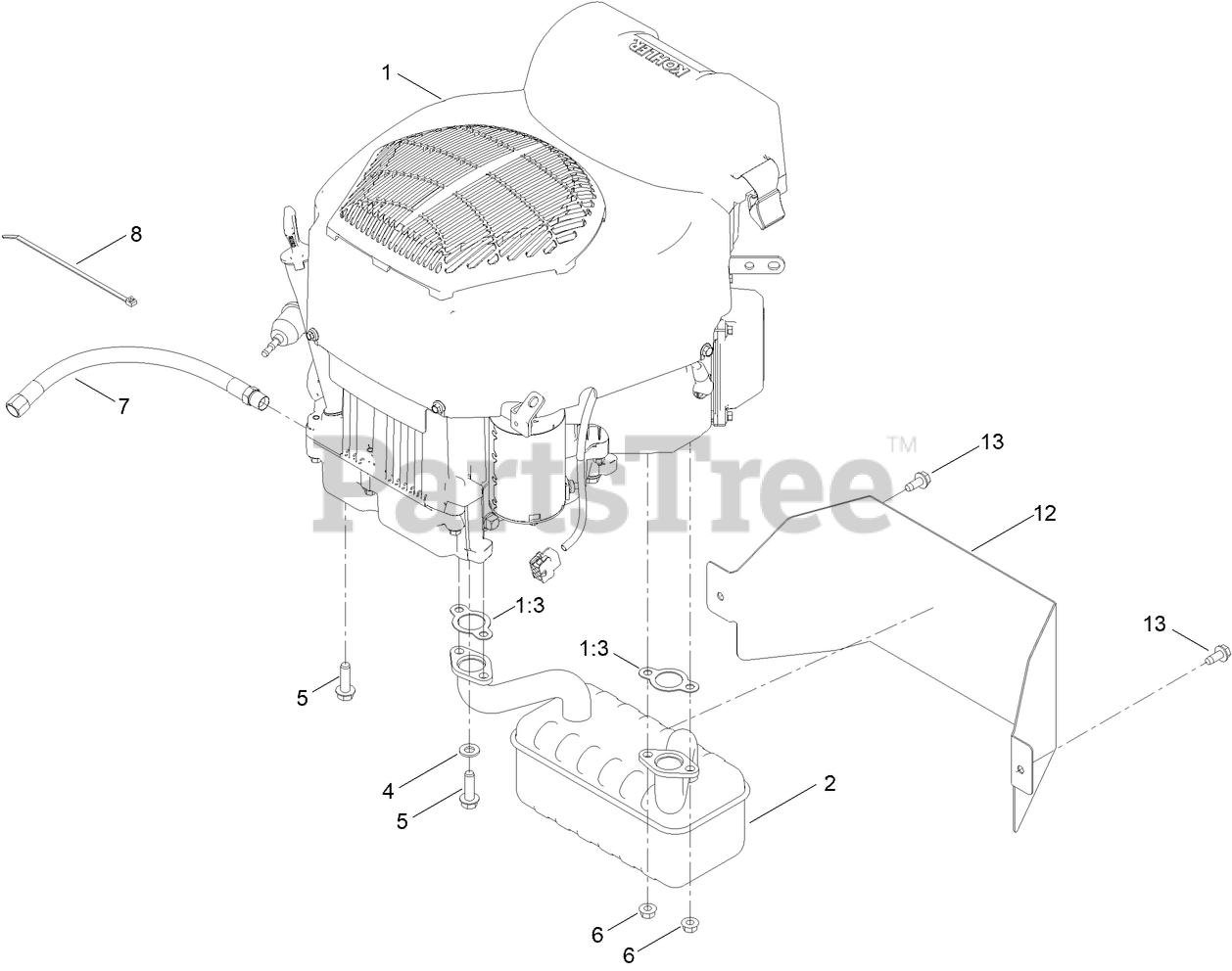

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, KT726

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, KT726

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:3

Toro 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:4

Toro 281-1

PLUG-PIPE, SQH

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

2

Toro 147-7707

MUFFLER

$134.99

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

6

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Toro 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

8

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

12

Toro 161-6221-03

HEAT SHIELD - MUFFLER
(Superseded to 161-6649-03)

$38.99

$

Usually ships in 3-6 days

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
