76605 - Toro 60" Titan Zero-Turn Mower (SN: 417000000 - 417520170) Caster Fork and Wheel Assembly Parts Diagram

60" Titan Zero-Turn Mower

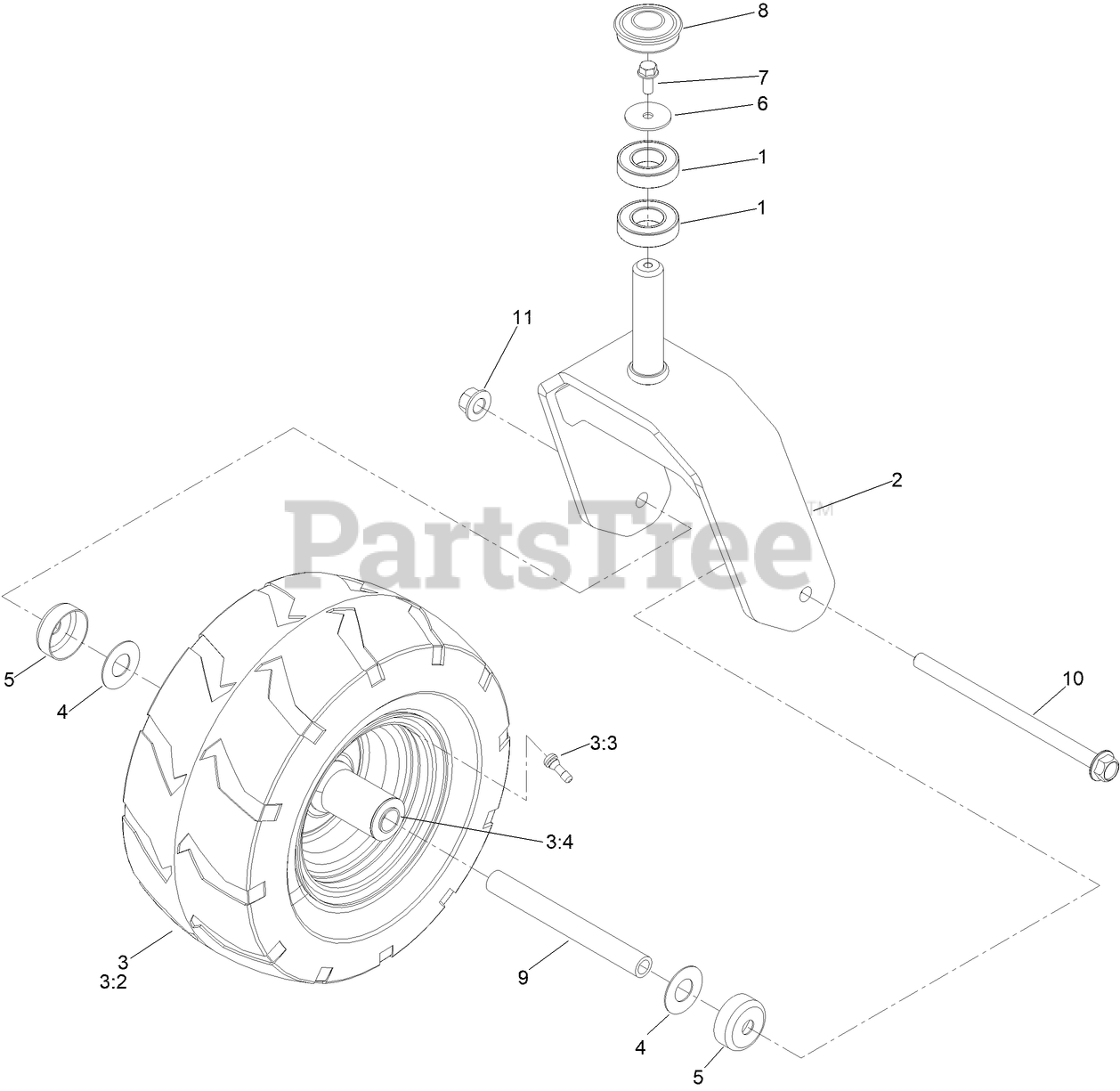

Caster Fork and Wheel Assembly Parts Diagram

  • Title

1

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

2

Toro 145-6375-01

CASTOR FORK [RED]

$128.99

$

Usually ships in 3-6 days

0

3

Toro 147-7647

TIRE AND WHEEL ASM

$104.99

$

Usually ships in 3-6 days

0

3:2

Toro 147-7648

TIRE 13X6.5-6, TREADED

$78.99

$

Usually ships in 3-6 days

0

3:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

3:4

Toro 147-7652

BEARING

$11.99

$

In Stock, only 2 left!

0

4

Toro 136-5590

WASHER

$1.49

$

In Stock, Qty 5

0

5

Toro 138-7208

GUARD-SEAL

$3.49

$

In Stock, Qty 9

0

6

Toro 115-1151

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

7

Toro 100-1668

SCREW-HHF

$7.49

$

In Stock, Qty 7

0

8

Toro 144-0375

CAP,GREASE

$3.99

$

In Stock, Qty 13

0

9

Toro 133-4487

SPANNER-WHEEL

$14.99

$

Usually ships in 3-6 days

0

10

Toro 139-2559

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

11

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0
