76606 - Toro 60" Titan MAX Zero-Turn Mower (SN: 417515889 - 999999999) Engine and Muffler Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

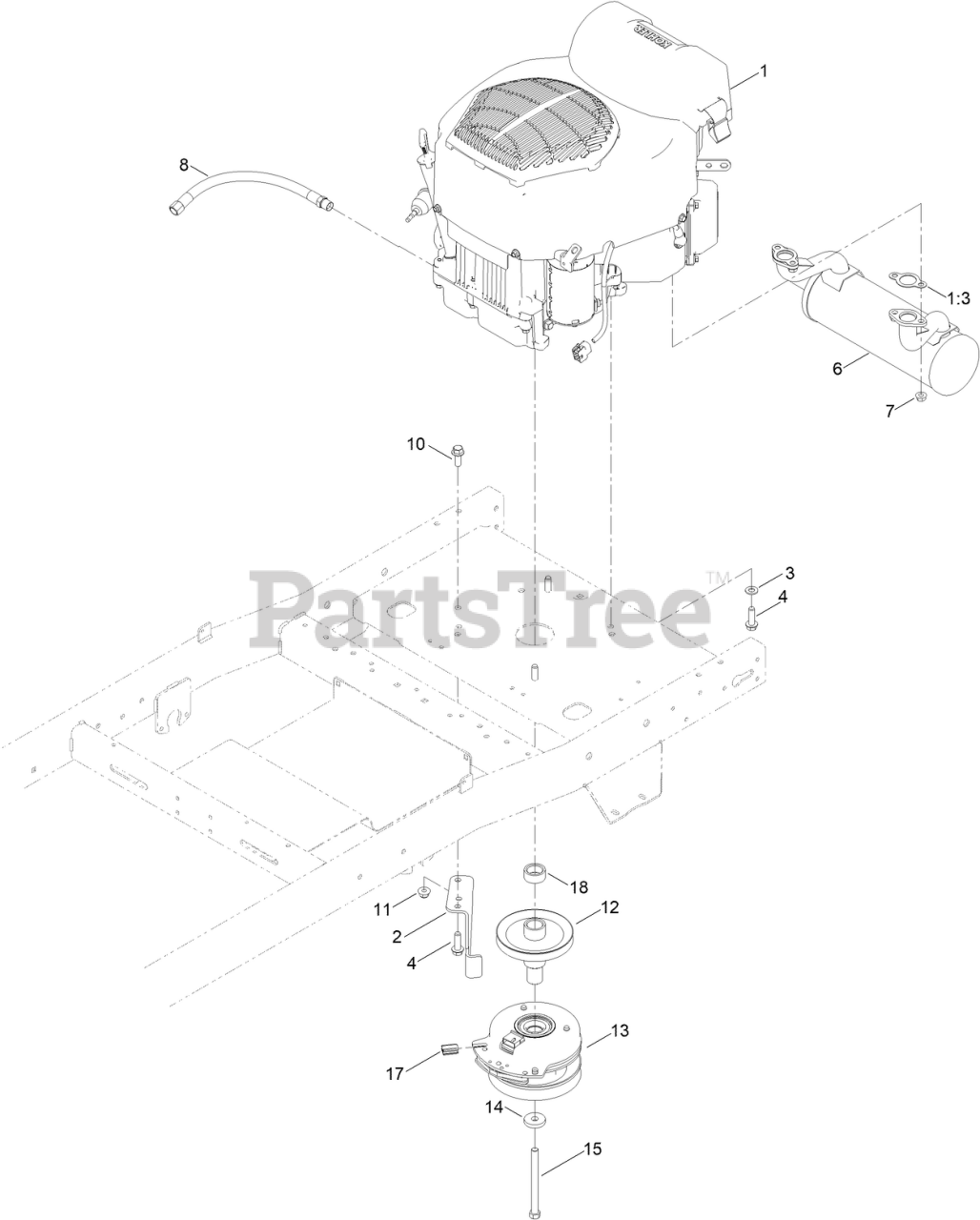

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, KT726

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, KT726

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:3

Toro 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:4

Toro 281-1

PLUG-PIPE, SQH

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

2

Toro 137-7000

STOP-CLUTCH (WIDE)

$13.99

$

In Stock, only 4 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

6

Toro 126-4359

MUFFLER-KOHLER AES

$169.99

$

Usually ships in 3-6 days

0

7

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 6

0

8

Toro 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

10

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 138-9831

PULLEY-ENGINE

$45.99

$

Usually ships in 3-6 days

0

13

Toro 127-3410

CLUTCH-PTO

$421.99

$

In Stock, only 2 left!

0

14

Toro 112843

WASHER

$3.99

$

In Stock, only 4 left!

0

15

Toro 3212-19

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

17

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 20+

0

18

Toro 146-0538

SPACER-ENGINE PULLEY

$

$

Currently unavailable
