76607 - Toro 60" Titan MAX MyRide Zero-Turn Mower (SN: 417420000 - 999999999) Seat Pan Assembly Parts Diagram

60" Titan MAX MyRide Zero-Turn Mower

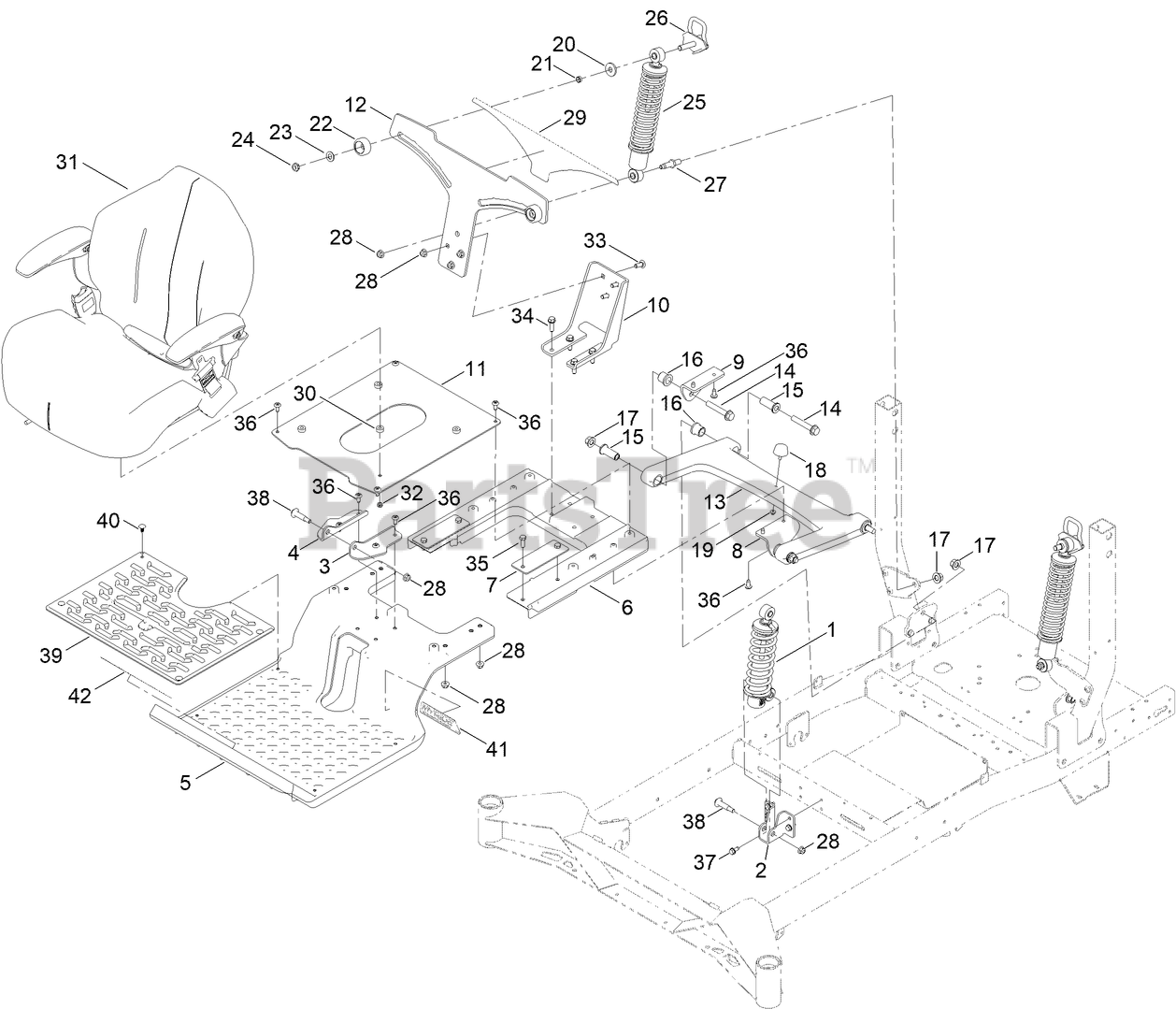

Seat Pan Assembly Parts Diagram

  • Title

1

Toro 139-2427

SHOCK/SPRING ASM

$147.99

$

Usually ships in 3-6 days

0

2

Toro 145-6323-01

BRACKET-MOUNT DAMPER, LOWER

$19.99

$

Usually ships in 3-6 days

0

3

Toro 133-9318-05

BRACKET-SHOCK MOUNT, UPPER LH

$

$

Currently unavailable

4

Toro 133-9319-05

BRACKET-SHOCK MOUNT, UPPER RH

$

$

Currently unavailable

5

Toro 133-7083-05

SUBFRAME-FRONT

$518.99

$

Usually ships in 3-6 days

0

6

Toro 137-7031-05

SUBFRAME-REAR

$

$

Currently unavailable

7

Toro 133-7089-05

PLATE-BACKER

$18.99

$

Usually ships in 3-6 days

0

8

Toro 161-6326

BRACKET-TRAILING ARM, LH

$34.99

$

Usually ships in 3-6 days

0

9

Toro 161-6325

BRACKET-TRAILING ARM, RH

$34.99

$

Usually ships in 3-6 days

0

10

Toro 161-6357-05

BRACKET-MOUNT, LOWER

$

$

Currently unavailable

11

Toro 161-6356-05

PLATE-SEAT, MYRIDE

$

$

Currently unavailable

12

Toro 136-1744-05

PLATE-MOUNTING,ADJ SHOCK

$

$

Currently unavailable

13

Toro 161-6328

TRAILING ARM

$

$

Currently unavailable

14

Toro 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

15

Toro 161-6324

SPACER-PIVOT

$3.99

$

Usually ships in 3-6 days

0

16

Toro 127-6745

BUSHING-FLANGE

$12.99

$

Usually ships in 3-6 days

0

17

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

18

Toro 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 131-4699

WASHER-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

21

Toro 133-5109

BEARING-SLEEVE

$2.99

$

In Stock, only 1 left!

0

22

Toro 136-5636

KNOB-LOCK, CAM

$13.99

$

Usually ships in 3-6 days

0

23

Toro 3-6803

WASHER-ADJUSTING

$9.49

$

Usually ships in 3-6 days

0

24

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

25

Toro 133-5193

SHOCK/SPRING ASM

$145.99

$

Usually ships in 3-6 days

0

26

Toro 136-9017

CAM LOCK ASM

$42.99

$

Usually ships in 3-6 days

0

27

Toro 133-4401

BOLT-SHOULDER

$15.99

$

Usually ships in 3-6 days

0

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 136-1720

DECAL-MYRIDE

$28.99

$

Usually ships in 3-6 days

0

30

Toro 140-3461

SPACER

$1.99

$

Usually ships in 3-6 days

0

31

Toro 161-9737

SEAT ASM

$

$

Currently unavailable

32

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

33

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

34

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

35

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

37

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

38

Toro 136-9028

BOLT-SHOULDER, HWH

$1.99

$

In Stock, only 3 left!

0

39

Toro 144-2634

FLOOR MAT

$51.99

$

Usually ships in 3-6 days

0

40

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

41

Toro 161-6392

DECAL-MYRIDE

$

$

Currently unavailable

42

Toro 161-9755

DECAL-MYRIDE

$

$

Currently unavailable
