76608 - Toro 60" Titan MAX Zero-Turn Mower (SN: 417420000 - 999999999) Frame Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

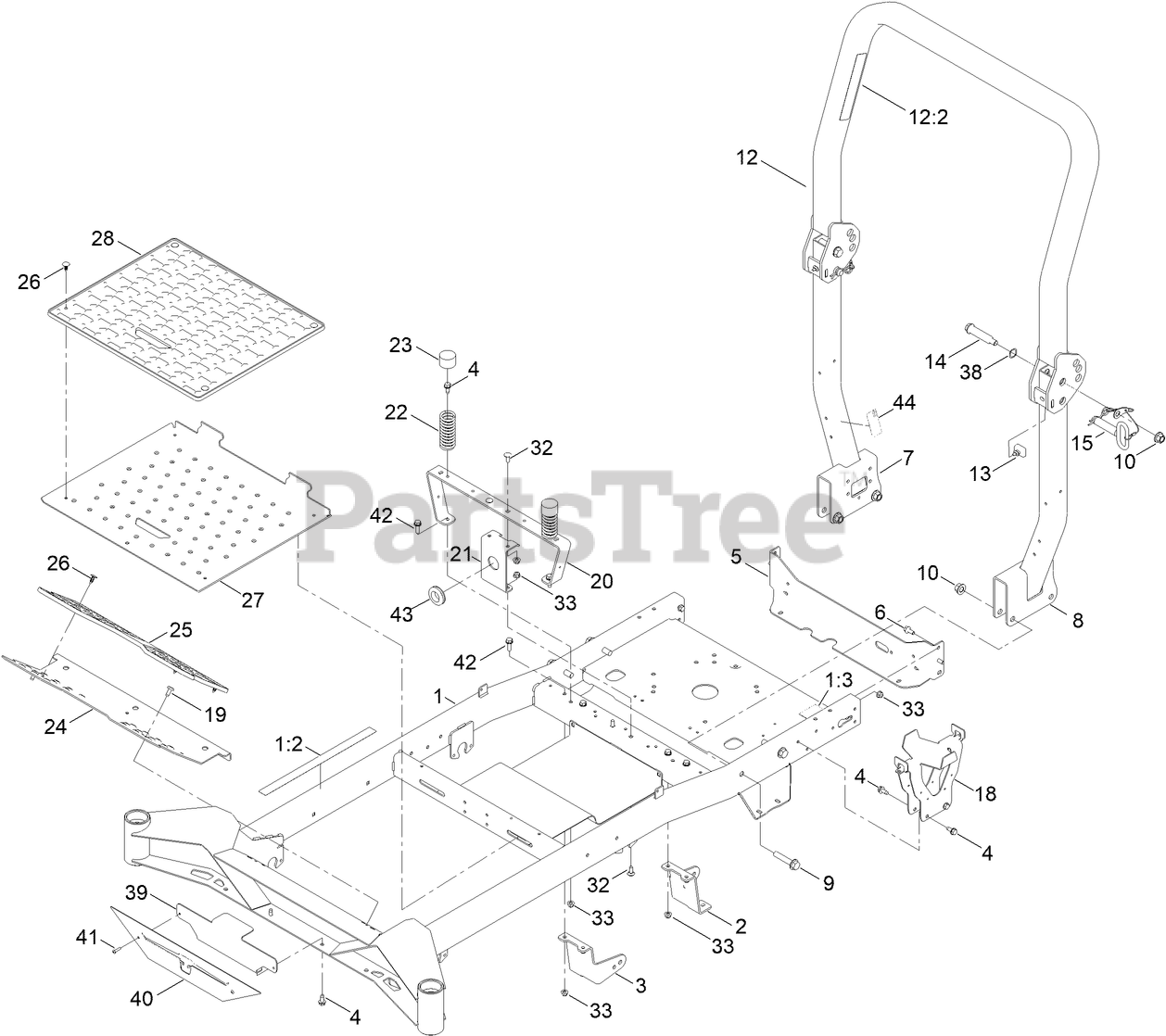

Frame Assembly Parts Diagram

  • Title

1

Toro 163-2385

FRAME W/DECALS ASM

$1995.99

$

Usually ships in 3-6 days

0

1:2

Toro 161-6647

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

1:3

Toro 161-6207

DECAL-BYPASS

$4.49

$

Usually ships in 3-6 days

0

2

Toro 161-6506-01

MOUNT-DRIVE, LH

$20.99

$

Usually ships in 3-6 days

0

3

Toro 161-6507-01

MOUNT-DRIVE, RH

$20.99

$

Usually ships in 3-6 days

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 163-3137-03

PLATE-MOUNT, REAR

$39.99

$

Usually ships in 3-6 days

0

6

Toro 139-2598

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

7

Toro 163-2392-03

RH ROPS ASM [BLACK]

$

$

Currently unavailable

8

Toro 163-2390-03

LH ROPS ASM [BLACK]

$

$

Currently unavailable

9

Toro 127-7444

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

10

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

12

Toro 161-9742

TUBE-ROPS, UPPER ASM

$

$

Currently unavailable

12:2

Toro 107-3069

DECAL-WARNING

$27.99

$

Usually ships in 3-6 days

0

13

Toro 109-5337

BUMPER-ROPS

$7.49

$

In Stock, only 2 left!

0

14

Toro 161-4505

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

15

Toro 161-4477

PIN-ROPS, ASM

$37.99

$

Usually ships in 3-6 days

0

18

Toro 161-6314-05

TRAY-BATTERY

$

$

Currently unavailable

19

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

20

Toro 161-6318-03

SUPPORT-SEAT

$22.99

$

Usually ships in 3-6 days

0

21

Toro 161-9738

BRACKET-LATCH, FRAME (MTY/BTV)

$

$

Currently unavailable

22

Toro 138-2548

SPRING-COMPRESSION

$8.99

$

In Stock, Qty 8

0

23

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 15

0

24

Toro 145-6369-01

PAN-FLOOR

$88.99

$

Usually ships in 3-6 days

0

25

Toro 147-7611

FLOOR MAT - TITAN

$34.99

$

Usually ships in 3-6 days

0

26

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

27

Toro 145-6370-01

PAN-FLOOR

$103.99

$

Usually ships in 3-6 days

0

28

Toro 147-7609

FLOOR MAT

$74.99

$

Usually ships in 3-6 days

0

32

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 119-4164

WASHER-WAVE

$3.99

$

Usually ships in 3-6 days

0

39

Toro 147-2878-01

PLATE-BACKER

$19.99

$

Usually ships in 3-6 days

0

40

Toro 147-2879-03

LOGO-PLATE-FRONT

$22.99

$

Usually ships in 3-6 days

0

41

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

42

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

43

Toro 108-3723

GROMMET

$9.49

$

Usually ships in 3-6 days

0

44

Toro 163-3145

DECAL-COMPLIANCE, ROPS

$

$

Currently unavailable
