77102 (16-38 G) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) 38" Deck Components Assembly Parts Diagram

Lawn Tractor

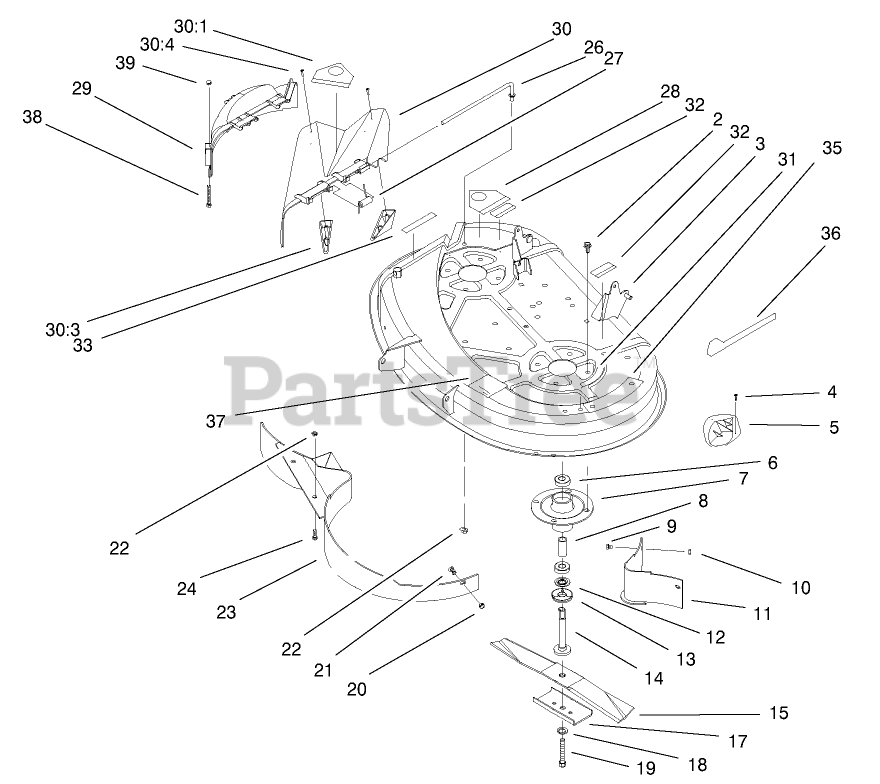

38" Deck Components Assembly Parts Diagram

  • Title

2

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

3

Toro 99-5846

DECK ASM

$

$

Not available

4

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 10

0

5

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

0

6

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

7

Toro 88-4510

HOUSING-SPINDLE

$116.99

$

In Stock, Qty 10

0

8

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-1640-03

BAFFLE ASM

$78.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

13

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

14

Toro 80-4341

SHAFT-SPINDLE

$57.99

$

In Stock, Qty 10

0

15

Toro 79-3061

See Supercession: 14-7799
(Superseded to 14-7799)

$78.99

$

In Stock, only 4 left!

0

17

Toro 80-0510-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 5

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 79-1600-03

BAFFLE ASM

$124.99

$

Usually ships in 3-6 days

0

24

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

26

Toro 95-1661

ROD-PIVOT

$23.99

$

In Stock, only 3 left!

0

27

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

28

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

29

Toro 88-4430

COVER-RECYCLER

$

$

Not available

30

Toro 100-6201

See Supercession: 106-8739
(Superseded to 106-8739)

$175.99

$

In Stock, only 1 left!

0

30:1

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

30:3

Toro 93-7696

KICKER

$15.99

$

In Stock, only 4 left!

0

30:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

31

Toro 68-3660

DECAL-DANGER, SHIELD

$14.99

$

In Stock, only 1 left!

0

32

Toro 55-4300

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

33

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

35

Toro 79-3140

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0

36

Toro 100-6203

DECAL-RECYCLER 38INCH

$

$

Not available

37

Toro 93-6679

See Supercession: 117-0033
(Superseded to 117-0033)

$8.99

$

Usually ships in 3-6 days

0

38

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

0

39

Toro 32111-7

NUT-CAP

$8.49

$

Usually ships in 3-6 days

0
