77106 (17-44 H) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Idler Brake Assembly Parts Diagram

Lawn Tractor

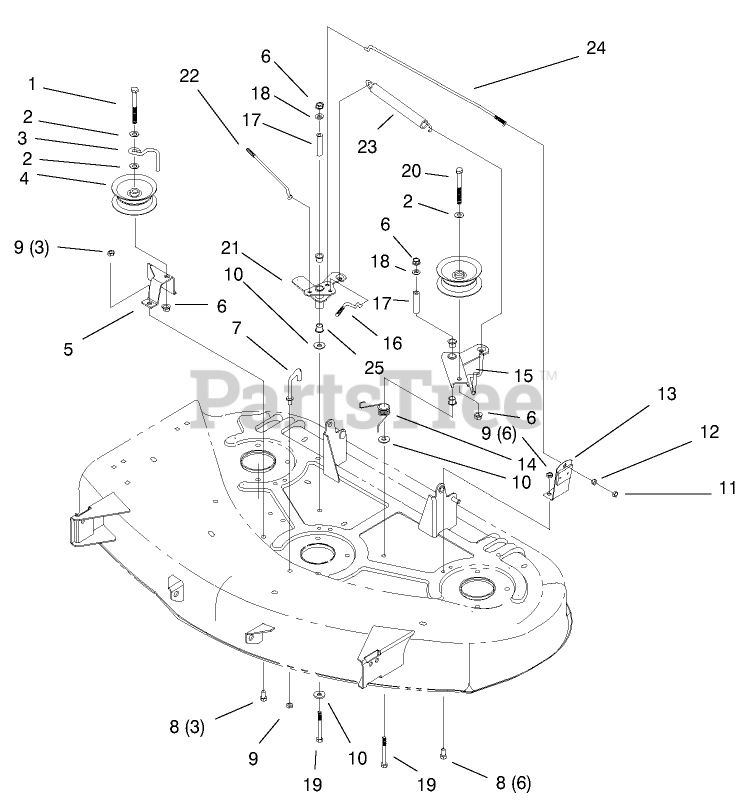

Idler Brake Assembly Parts Diagram

  • Title

1

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 88-5070

See Supercession: 107-7307
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0

4

Toro 88-5630

See Supercession: 132-4717
(Superseded to 132-4717)

$25.99

$

In Stock, Qty 5

0

5

Toro 93-3860-03

BRACKET-IDLER

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 88-5960

DISCONTINUED

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 67-0710

BALL-SWIVEL, STOP

$4.99

$

Usually ships in 3-6 days

0

13

Toro 93-3841

BRAKE ASM

$

$

Not available

14

Toro 93-9342

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

15

Toro 94-1986-03

BELLCRANK ASM

$131.99

$

Usually ships in 3-6 days

0

16

Toro 93-3852

ROD-BRAKE, CENTER

$

$

Not available

17

Toro 94-1988

SPACER

$15.99

$

In Stock, Qty 5

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 94-1989-03

BELLCRANK

$

$

Not available

22

Toro 93-3853

ROD-BRAKE, RH

$

$

Not available

23

Toro 93-3850

SPRING-EXTENSION

$40.99

$

In Stock, only 1 left!

0

24

Toro 93-3851

ROD-BRAKE, LH

$

$

Not available

25

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, only 3 left!

0
