77285 (2000) - Toro 60" Z Master Zero-Turn Mower (SN: 418011972 - 418099999) Engine, Clutch and Muffler Assembly Parts Diagram

60" Z Master Zero-Turn Mower

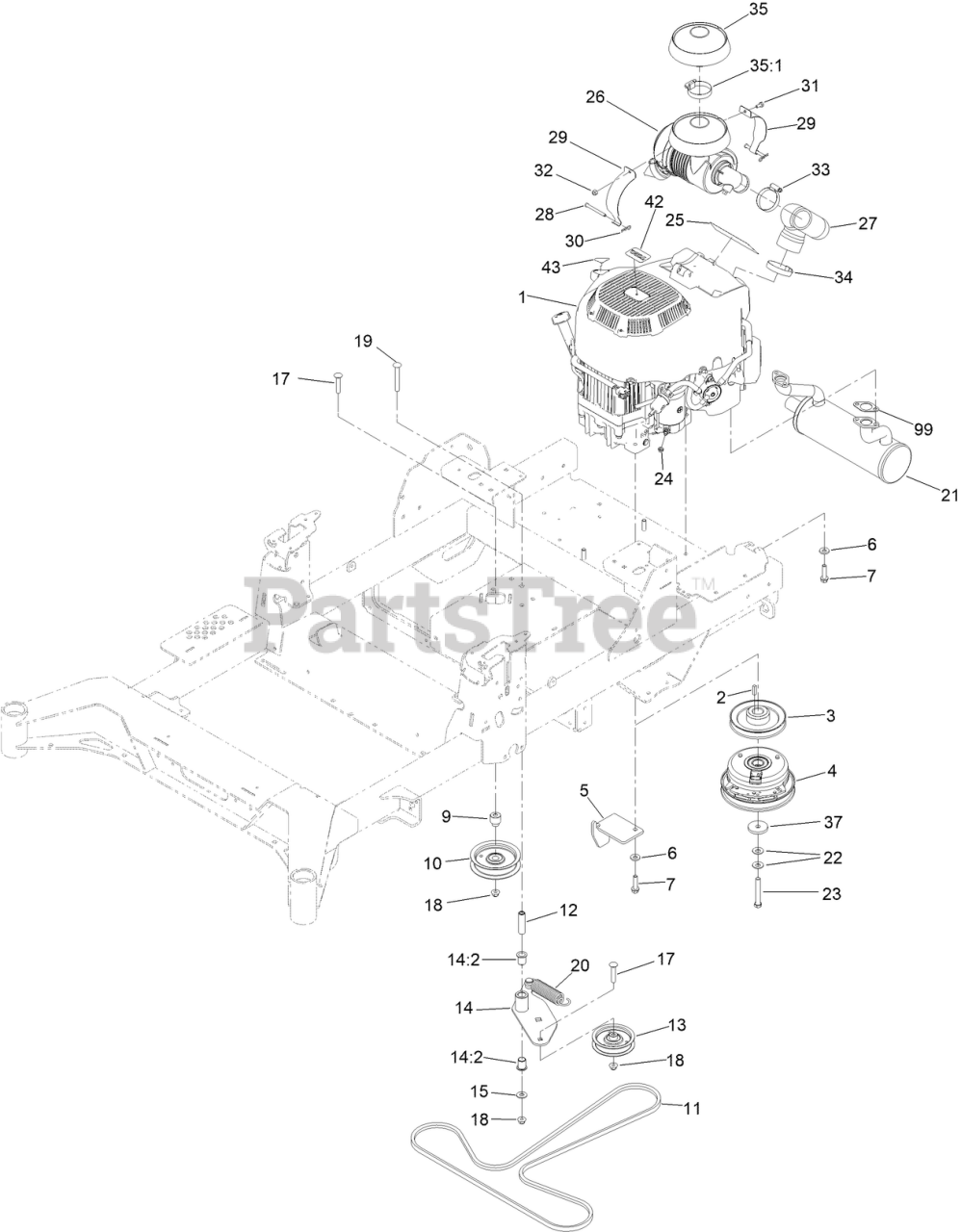

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

Toro 136-7823

ENGINE-2P77F-HD

$3111.99

$

Usually ships in 3-6 days

0

2

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

3

Toro 138-6007

SHEAVE-ENGINE

$67.99

$

Usually ships in 3-6 days

0

4

Toro 147-2400

CLUTCH 6.75, 105 FTLB, 1.00 DD

$420.99

$

Usually ships in 3-6 days

0

5

Toro 140-1190

ANCHOR-CLUTCH

$18.99

$

Usually ships in 3-6 days

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

9

Toro 126-7684

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

10

Toro 132-4718

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

0

11

Toro 145-5727

BELT-V

$79.99

$

In Stock, only 1 left!

0

12

Toro 139-6690

BUSHING, IDLER PIVOT

$8.49

$

In Stock, only 2 left!

0

13

Toro 140-4964

PULLEY-IDLER, FLAT

$28.99

$

Usually ships in 3-6 days

0

14

Toro 145-5731

IDLER ARM ASM

$50.99

$

Usually ships in 3-6 days

0

14:2

Toro 138-2573

BUSHING-FLANGE

$3.49

$

In Stock, only 2 left!

0

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 3231-42

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

20

Toro 138-7264

SPRING-EXTENSION

$8.99

$

In Stock, Qty 16

0

21

Toro 126-5864

MUFFLER

$169.99

$

Usually ships in 3-6 days

0

22

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

23

Toro 126-7198

SCREW-HH W/LOCTITE

$20.99

$

In Stock, only 2 left!

0

24

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

25

Toro 140-2715

DECAL

$9.49

$

In Stock, only 3 left!

0

26

Toro 93-2190

AIR CLEANER ASM

$280.99

$

Usually ships in 3-6 days

0

27

Toro 136-9242

HOSE-INTAKE

$31.99

$

Usually ships in 3-6 days

0

28

Toro 137-2011

PIN-CLEVIS

$1.99

$

Usually ships in 3-6 days

0

29

Toro 136-9243

STRAP-CANISTER, AIR

$12.99

$

Usually ships in 3-6 days

0

30

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

31

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

33

Toro 1-643009

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

34

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

35

Toro 136-7859

RAIN CAP KIT

$44.99

$

In Stock, only 3 left!

0

35:1

Toro 1-643009

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

37

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 8

0

42

Toro 110-1136

DECAL

$3.49

$

Usually ships in 3-6 days

0

43

Toro 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, only 2 left!

0

99

Toro 120-4317

GASKET-EXHAUST

$5.99

$

In Stock, Qty 20+

0
