77501 - Toro 50" TimeCutter MAX Zero-Turn Mower (SN: 415400000 - 416912966) Engine and Muffler Assembly Parts Diagram

50" TimeCutter MAX Zero-Turn Mower

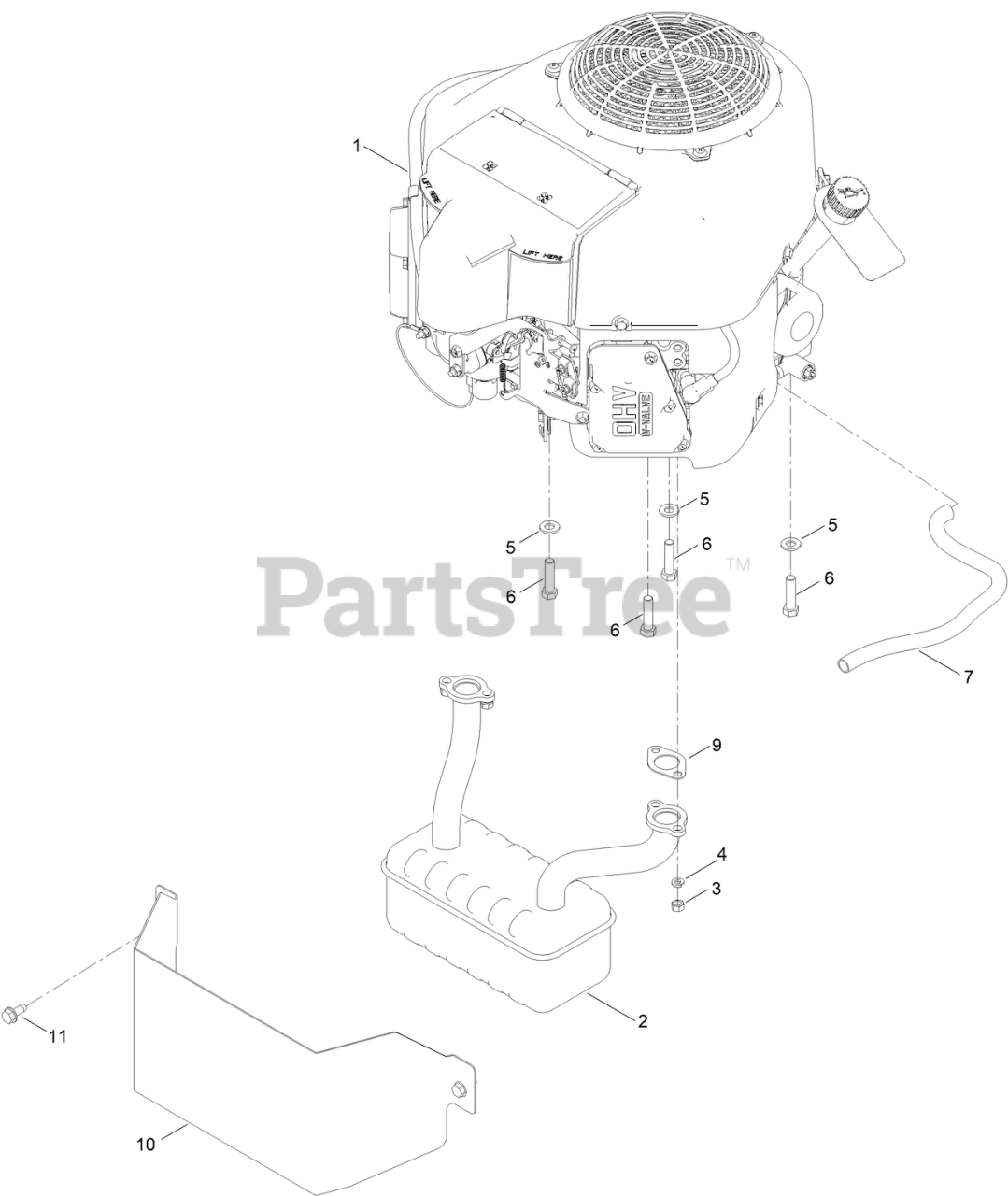

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR691V-_S07-R

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1

ENGINE-KAWASAKI, FR691V-_S07-R

Note: Not serviced separately

$

$

Not available

2

Toro 139-5867

MUFFLER

$157.99

$

Usually ships in 3-6 days

0

3

Toro 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

4

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 106-7022

TUBE-DRAIN, OIL

$10.99

$

In Stock, Qty 5

0

9

Toro 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

10

Toro 161-6221-03

HEAT SHIELD - MUFFLER
(Superseded to 161-6649-03)

$38.99

$

Usually ships in 3-6 days

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
