77505 - Toro 50" TimeCutter MAX Zero-Turn Mower (SN: 417200000 - 418399999) Traction Drive Assembly Parts Diagram

50" TimeCutter MAX Zero-Turn Mower

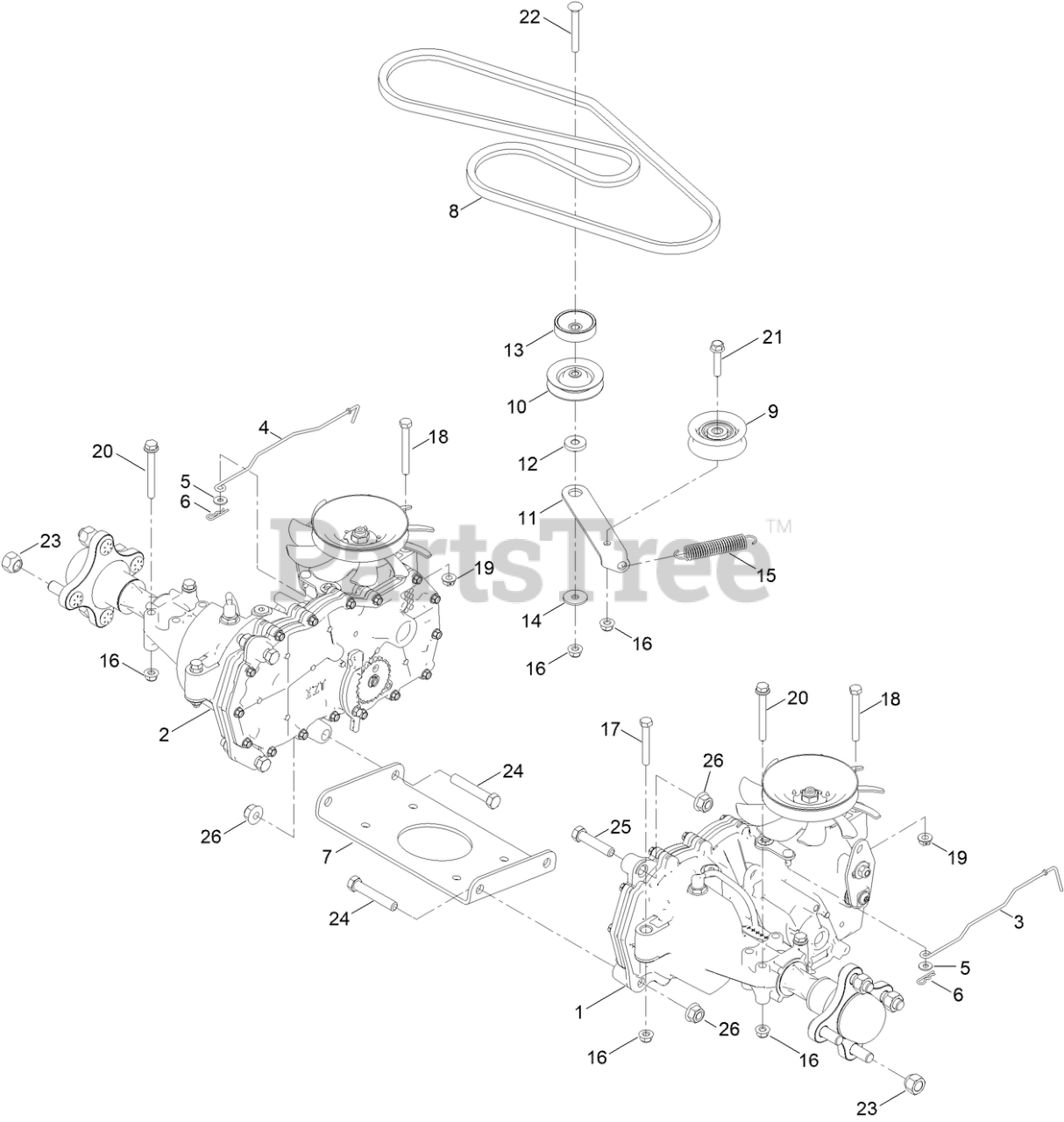

Traction Drive Assembly Parts Diagram

  • Title

1

Toro 139-7470

LH HYDRO TRANSAXLE ASM

$1670.99

$

Usually ships in 3-6 days

0

2

Toro 139-7471

RH HYDRO TRANSAXLE ASM

$1499.99

$

Usually ships in 3-6 days

0

3

Toro 147-2988

ROD-BYPASS, LH

$9.49

$

Usually ships in 3-6 days

0

4

Toro 147-2989

ROD-BYPASS, RH

$9.49

$

Usually ships in 3-6 days

0

5

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

6

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

7

Toro 145-6390-03

PLATE-CROSS HYDRO

$39.99

$

Usually ships in 3-6 days

0

8

Toro 145-6361

V-BELT (A SEC 63.8 EL)

$37.99

$

In Stock, Qty 20+

0

9

Toro 138-7597

PULLEY-IDLER, FLAT

$17.99

$

In Stock, Qty 16

0

10

Toro 68-0030

See Supercession: 68-0030-03

$23.99

$

In Stock, Qty 18

0

11

Toro 147-2925

ARM-IDLER

$8.99

$

In Stock, only 2 left!

0

12

Toro 138-7277

SPACER-IDLER ARM

$1.99

$

In Stock, Qty 20+

0

13

Toro 138-9809

SPACER

$6.99

$

In Stock, only 2 left!

0

14

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

15

Toro 137-7040

SPRING-PEDAL, RETURN

$5.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

18

Toro 145-6388

SCREW-HH SPCL

$1.49

$

Usually ships in 3-6 days

0

19

Toro 139-2574

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

20

Toro 138-7590

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

21

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 6

0

22

Toro 3230-8

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

23

Toro 139-2564

NUT-LUG

$1.49

$

In Stock, Qty 20+

0

24

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 7

0

25

Toro 324-8

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

26

Toro 114-8417

NUT-HF, NI

$2.99

$

In Stock, Qty 14

0
