77603 - Toro 60" TimeCutter MyRide Zero-Turn Mower (SN: 417000000 - 417112058) Seat Pan Assembly Parts Diagram

60" TimeCutter MyRide Zero-Turn Mower

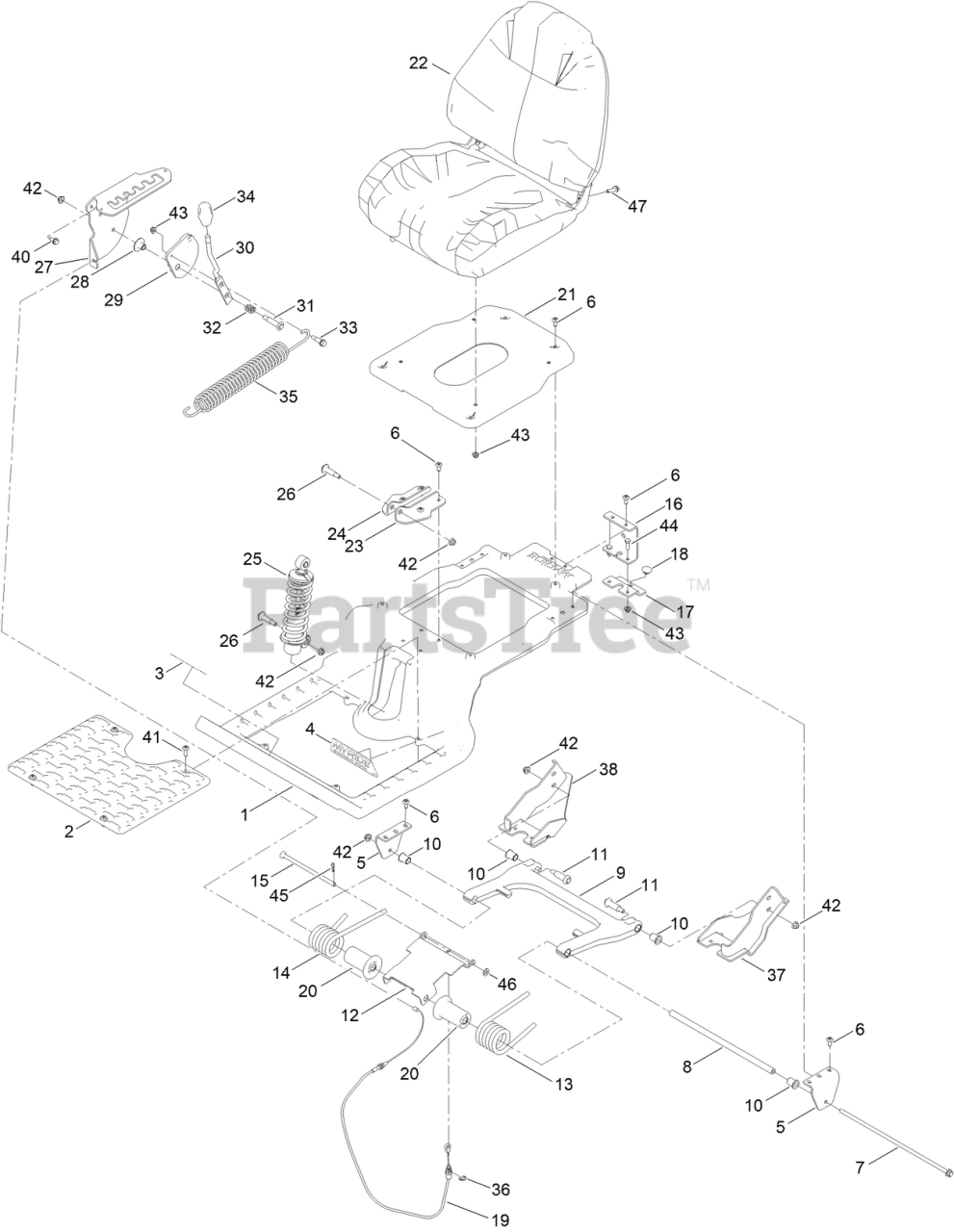

Seat Pan Assembly Parts Diagram

  • Title

1

Toro 145-6394-05

PLATFORM, MYRIDE

$475.99

$

Usually ships in 3-6 days

0

2

Toro 145-6395-05

PLATFORM, MYRIDE

$120.99

$

Usually ships in 3-6 days

0

3

Toro 147-7662

DECAL - MYRIDE

$6.99

$

Usually ships in 3-6 days

0

4

Toro 147-7575

DECAL - MYRIDE

$6.99

$

Usually ships in 3-6 days

0

5

Toro 138-7517

BRACKET-MOUNT, SWING ARM

$13.99

$

Usually ships in 3-6 days

0

6

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

7

Toro 138-7548

SCREW-HHF

$15.99

$

Usually ships in 3-6 days

0

8

Toro 138-7549

TUBE-SPACER

$27.99

$

Usually ships in 3-6 days

0

9

Toro 145-6312

ARM-SWING

$132.99

$

Usually ships in 3-6 days

0

10

Toro 138-2573

BUSHING-FLANGE

$3.49

$

In Stock, only 2 left!

0

11

Toro 138-2547

BOLT-SHOULDER

$2.99

$

In Stock, only 2 left!

0

12

Toro 138-7566-03

PLATE-ADJUSTER

$23.99

$

Usually ships in 3-6 days

0

13

Toro 137-1983

SPRING-TORSION, LH

$35.99

$

In Stock, only 1 left!

0

14

Toro 137-7018

SPRING-TORSION, RH

$35.99

$

In Stock, only 1 left!

0

15

Toro 138-9813

ROD-ADJUSTMENT

$5.99

$

Usually ships in 3-6 days

0

16

Toro 138-9788

BRACKET-CABLE

$13.99

$

Usually ships in 3-6 days

0

17

Toro 139-2361-03

BRACKET LOWER

$8.49

$

Usually ships in 3-6 days

0

18

Toro 135-0505

BUMPER-SEAT

$1.49

$

In Stock, Qty 6

0

19

Toro 147-7713

CABLE-ADJUSTMENT, MYRIDE

$44.99

$

Usually ships in 3-6 days

0

20

Toro 138-9776

RETAINER-SPRING

$3.99

$

Usually ships in 3-6 days

0

21

Toro 145-6265-03

PAN-SEAT

$79.99

$

Usually ships in 3-6 days

0

22

Toro 147-8731

SEAT KING SK220 SEAT

$

$

Not available

23

Toro 133-9318-03

BRACKET-SHOCK MOUNT, UPPER (LH)

$17.99

$

Usually ships in 3-6 days

0

24

Toro 133-9319-03

BRACKET-SHOCK MOUNT, UPPER (RH)

$17.99

$

Usually ships in 3-6 days

0

25

Toro 139-2427

SHOCK/SPRING ASM

$147.99

$

Usually ships in 3-6 days

0

26

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 10

0

27

Toro 145-6309-05

BRACKET-MR GATE

$37.99

$

Usually ships in 3-6 days

0

28

Toro 139-5800

BUSHING - FLANGE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 147-5171

PULLEY-CAM

$43.99

$

Usually ships in 3-6 days

0

30

Toro 147-5172

LEVER-ADJUSTMENT, THREADED

$14.99

$

Usually ships in 3-6 days

0

31

Toro 92-1057

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

32

Toro 139-5858

SPRING-COMPRESSION

$1.99

$

Usually ships in 3-6 days

0

33

Toro 140-3759

BOLT-SHOULDER, HHF

$1.49

$

In Stock, Qty 20+

0

34

Toro 147-8715

KNOB-MR

$11.99

$

Usually ships in 3-6 days

0

35

Toro 138-9848

SPRING-EXTENSION

$58.99

$

Usually ships in 3-6 days

0

36

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

37

Toro 147-8721-03

MOUNT-MR SWING ARM, LH

$94.99

$

Usually ships in 3-6 days

0

38

Toro 147-8722-03

MOUNT-MR SWING ARM, RH

$94.99

$

Usually ships in 3-6 days

0

40

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

41

Toro 147-7606

SCREW-SPCL

$1.49

$

Usually ships in 3-6 days

0

42

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

44

Toro 139-1716

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

45

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 7

0

46

Toro 115-1166

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0

47

Toro 119-4036

SCREW-HHF

Note: Not illustrated

$1.49

$

In Stock, Qty 6

0
