78218 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 210000001 - 210999999) (2001) Cutting Unit Assembly Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

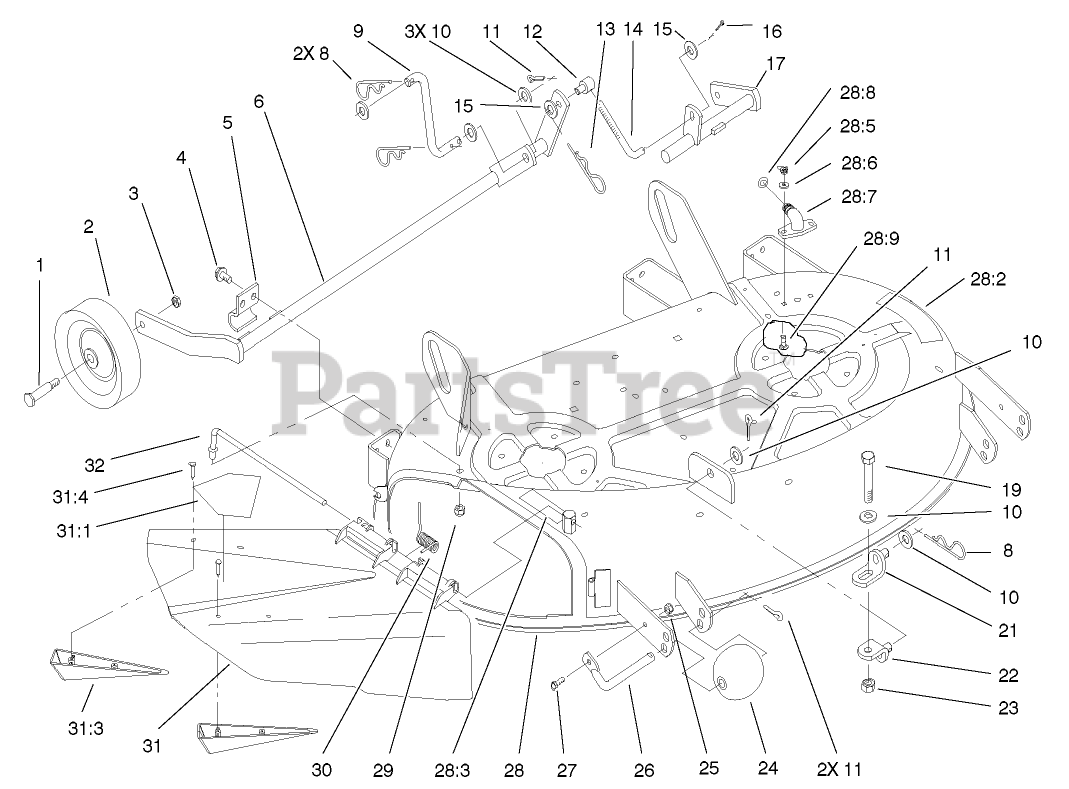

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 92-6959

WHEEL

$59.99

$

Usually ships in 3-6 days

0

3

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

4

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0

5

Toro 78-6400-03

CLAMP

$

$

Not available

6

Toro 78-8011-03

SHAFT ASM-RH

$165.99

$

Usually ships in 3-6 days

0

8

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 7

0

9

Toro 78-8071

LINK-REAR

$64.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

12

Toro 101161

TRUNNION

$

$

Not available

13

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

14

Toro 121010

ROD-LIFT

$29.99

$

Usually ships in 3-6 days

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-7073-03

DISCONTINUED

$

$

Not available

19

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 86-9240

BRACKET-LIFT, LOWER

$117.99

$

In Stock, only 4 left!

0

22

Toro 86-9250

BRACKET-LIFT, UPPER

$104.99

$

In Stock, only 1 left!

0

23

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 5

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 118960-03

SHAFT-ROLLER

$50.99

$

In Stock, only 1 left!

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 94-1579

DISCONTINUED

$

$

Not available

28:2

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 7

0

28:3

Toro 93-7319

DECAL - DANGER

$

$

Not available

28:5

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

28:6

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28:7

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

28:8

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

28:9

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

31

Toro 93-7695

DEFLECTOR ASM

$106.99

$

In Stock, only 1 left!

0

31:1

Toro 93-7010

DECAL-DANGER

$13.99

$

Usually ships in 3-6 days

0

31:3

Toro 93-7696

KICKER

$15.99

$

In Stock, only 4 left!

0

31:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

32

Toro 95-1661

ROD-PIVOT

$23.99

$

In Stock, only 3 left!

0
