78281 - Toro 52" Side-Discharge Mower Deck for 260 Series Tractors (SN: 210000001 - 210999999) (2001) Blade, Spindle, And Deflector Assembly Parts Diagram

52" Side-Discharge Mower Deck for 260 Series Tractors

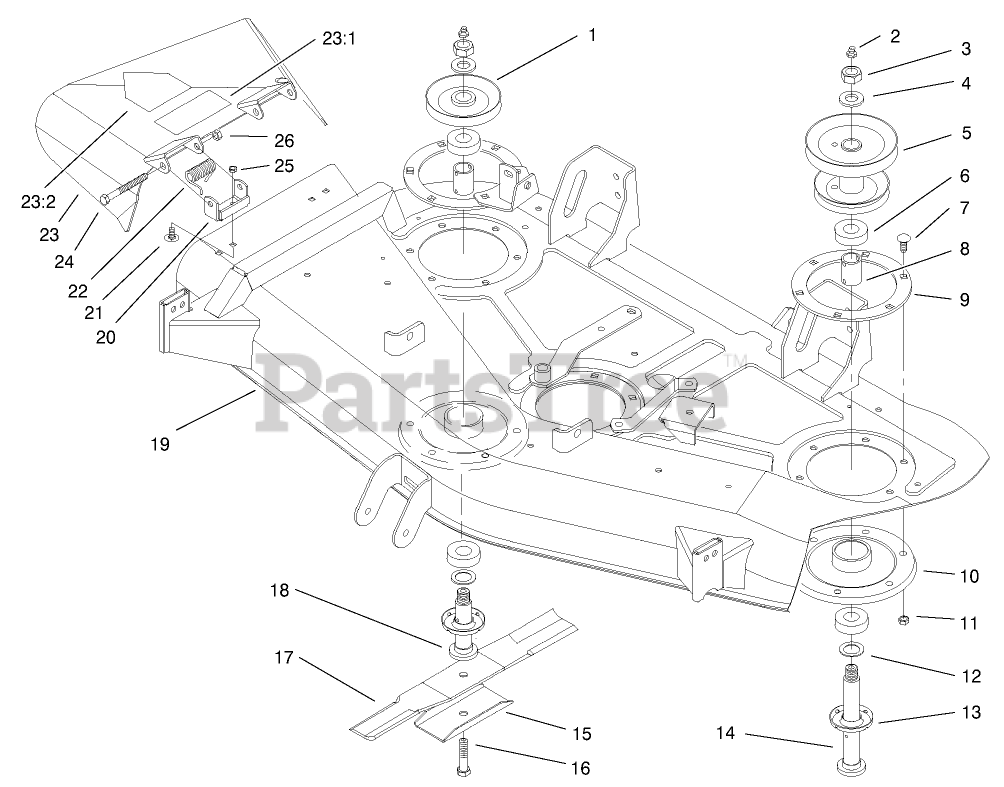

Blade, Spindle, And Deflector Assembly Parts Diagram

  • Title

1

Toro 79-0620

PULLEY

$

$

Not available

2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

3

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

4

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

5

Toro 94-4800

PULLEY-DOUBLE

$240.99

$

Usually ships in 3-6 days

0

6

Toro 113514

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

7

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 79-1890

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

9

Toro 27-7680-03

RING-DECK SUPPORT

$94.99

$

Usually ships in 3-6 days

0

10

Toro 79-2480-03

See Supercession: 79-2480
(Superseded to 79-2480)

$241.99

$

Usually ships in 3-6 days

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 88-7540

WASHER-BACKUP

$1.99

$

In Stock, Qty 5

0

13

Toro 79-1920

SHIELD-BEARING

$15.99

$

In Stock, only 3 left!

0

14

Toro 94-2523

SHAFT - SPINDLE

$270.99

$

Usually ships in 3-6 days

0

15

Toro 92-9820

STIFFENER-BLADE

$71.99

$

Usually ships in 3-6 days

0

16

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

17

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$22.99

$

In Stock, Qty 17

0

18

Toro 79-1900

SHAFT-SPINDLE

$288.99

$

Usually ships in 3-6 days

0

19

Toro 99-8019

DECK ASM

$

$

Not available

20

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

21

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

22

Toro 40-6230

SPRING

$

$

Not available

23

Toro 94-1580

DISCONTINUED
(Superseded to 94-1580-01)

$

$

Not available

23:1

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

23:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

24

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

25

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0
