78294 - Toro 52" Side-Discharge Mower Deck for XT Series Tractors (SN: 260000001 - 260999999) (2006) Spindle and Blade Assembly Parts Diagram

52" Side-Discharge Mower Deck for XT Series Tractors

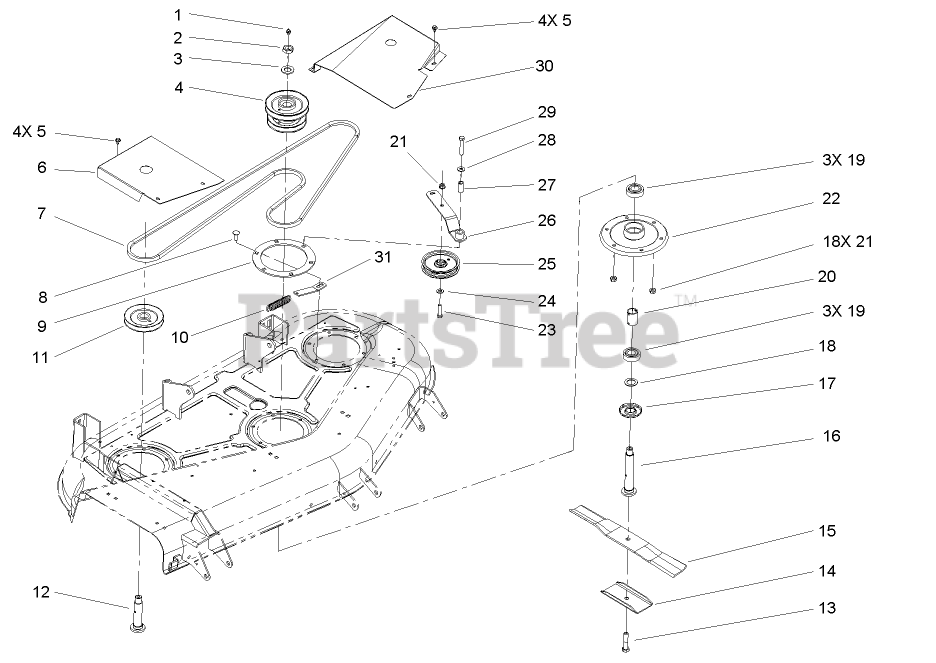

Spindle and Blade Assembly Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

2

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

3

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

4

Toro 106-1793

PULLEY-DOUBLE

$

$

Not available

5

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

6

Toro 106-5607-01

COVER-BELT, RH

$

$

Not available

7

Toro 94-2501

V-BELT

$41.99

$

In Stock, Qty 13

0

8

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9

Toro 27-7680-03

RING-DECK SUPPORT

$94.99

$

Usually ships in 3-6 days

0

10

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

11

Toro 79-0620

PULLEY

$

$

Not available

12

Toro 79-1900

SHAFT-SPINDLE

$288.99

$

Usually ships in 3-6 days

0

13

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

14

Toro 92-9820

STIFFENER-BLADE

$71.99

$

Usually ships in 3-6 days

0

15

Toro 27-0990-03

BLADE-18 INCH

$22.99

$

In Stock, Qty 17

0

16

Toro 79-1910

SHAFT-SPINDLE

$

$

Not available

17

Toro 79-1920

SHIELD-BEARING

$15.99

$

In Stock, only 3 left!

0

18

Toro 120860

WASHER-WHEEL

$7.99

$

In Stock, only 4 left!

0

19

Toro 113514

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

20

Toro 79-1890

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 79-2480-03

See Supercession: 79-2480
(Superseded to 79-2480)

$241.99

$

Usually ships in 3-6 days

0

23

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 93-1622

PULLEY-IDLER

$54.99

$

In Stock, only 4 left!

0

26

Toro 55-7640-03

IDLER ARM ASM

$139.99

$

Usually ships in 3-6 days

0

27

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

28

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Toro 98-1619-01

COVER ASM-LH

$

$

Not available

31

Toro 55-7650

PLATE-SPRING

$27.99

$

In Stock, Qty 5

0
