78305 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 059000001 - 059999999) (1995) Spindle And Blade Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

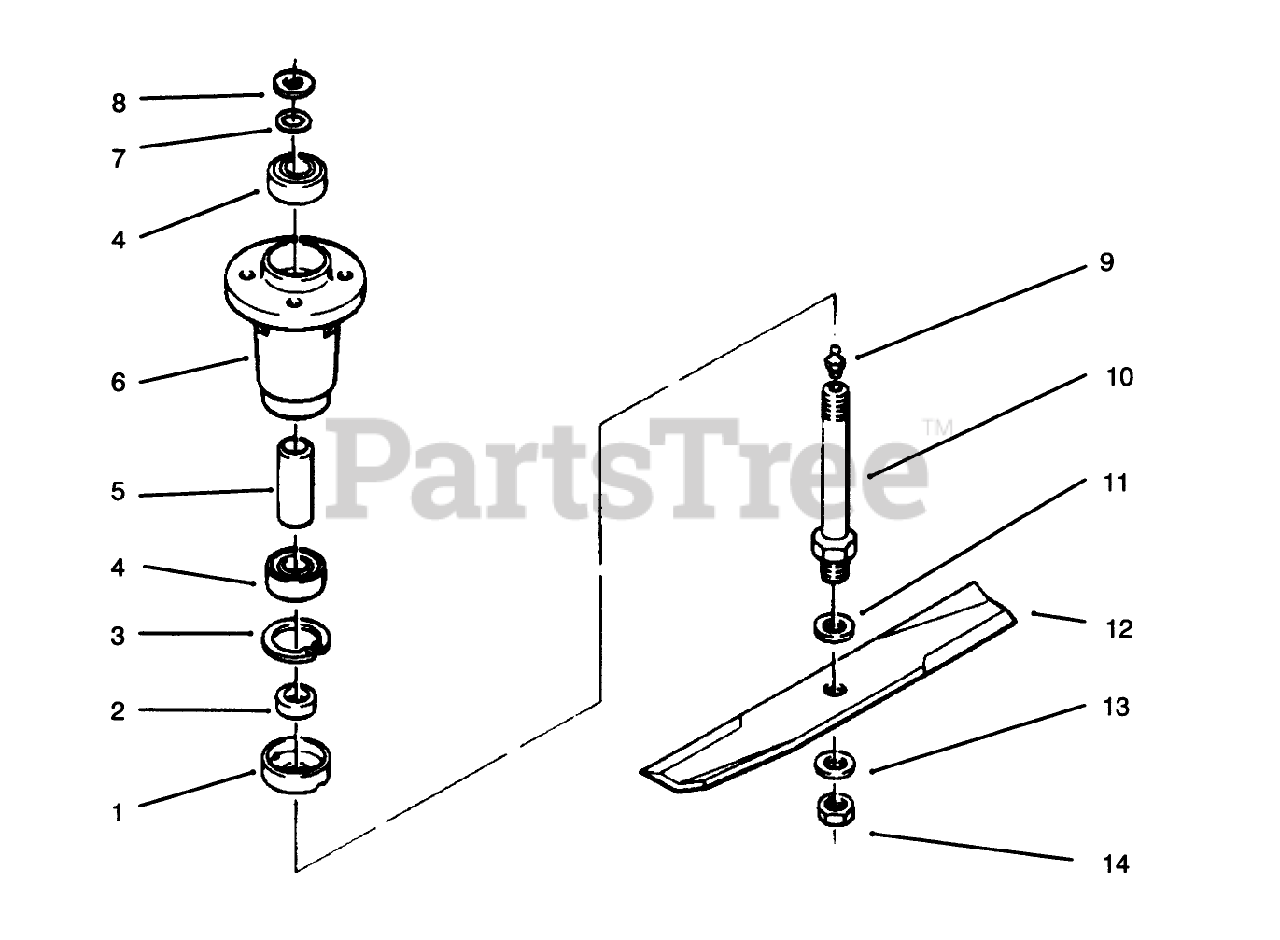

Spindle And Blade Parts Diagram

  • Title

1

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

2

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

3

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

4

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

5

Toro 116115

TUBE

$29.99

$

Usually ships in 3-6 days

0

6

Toro 114569

HOUSING-SPINDLE

$

$

Not available

7

Toro 971015

O RING

$2.49

$

In Stock, Qty 8

0

8

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 10

0

9

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

10

Toro 112673

SHAFT-SPINDLE

$177.99

$

Usually ships in 3-6 days

0

11

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

12

Toro 107983

S/A BLADE KIT

$170.99

$

Usually ships in 3-6 days

0

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

Toro 109964

DISCONTINUED

Note: Not illustrated

$

$

Not available
