78315 - Toro 37" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Deck Assembly Parts Diagram

37" Side-Discharge Mower Deck

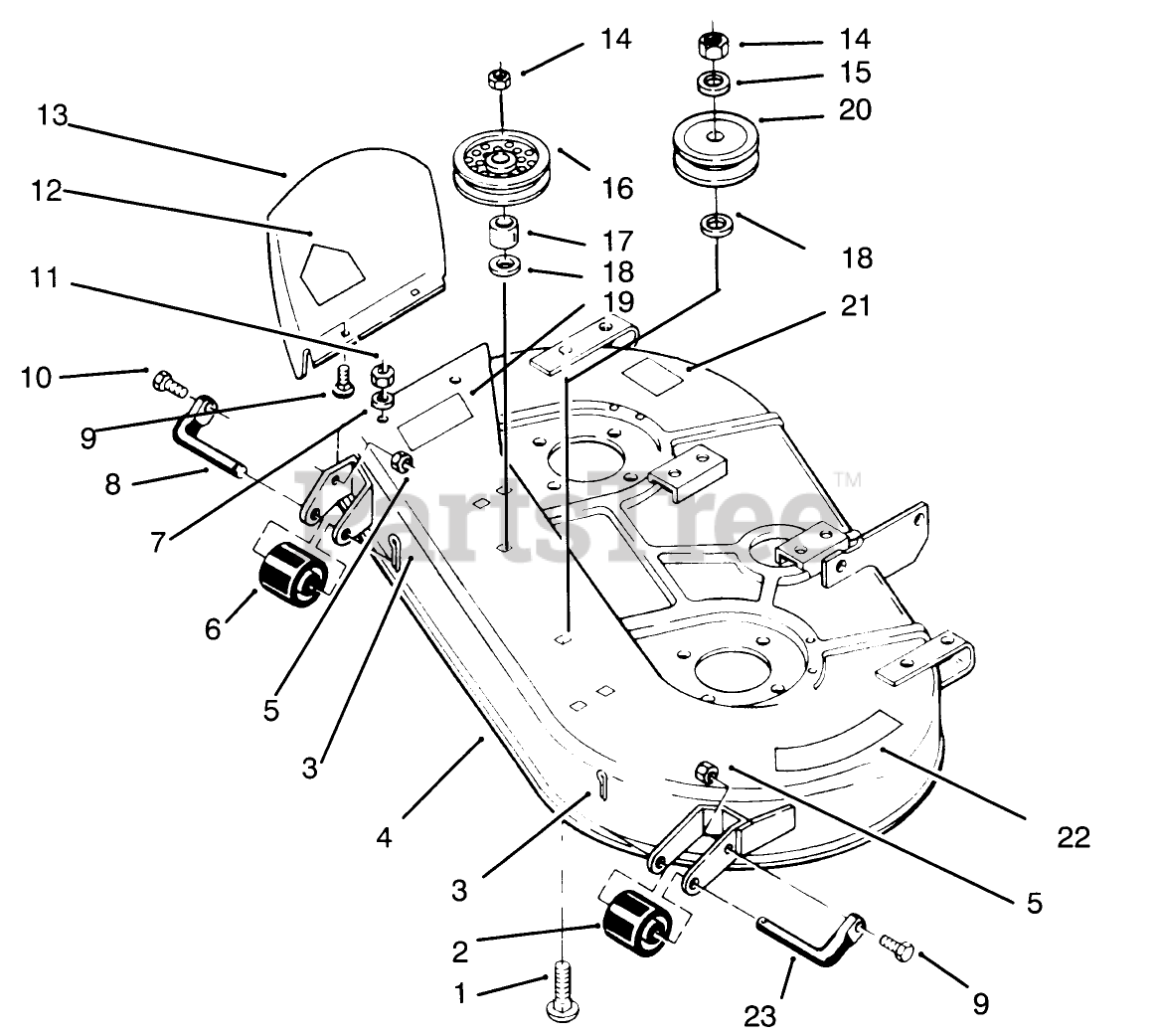

Deck Assembly Parts Diagram

  • Title

1

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 18

0

2

Toro 111173

ROLLER

$33.99

$

In Stock, only 2 left!

0

3

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

4

Toro 92-7289

DISCONTINUED

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 108798

See Supercession: 94-1599
(Superseded to 94-1599)

$14.99

$

In Stock, Qty 10

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 110847

ROLLER-SHAFT

$31.99

$

In Stock, Qty 5

0

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

13

Toro 92-7290

ASM-CHUTE/DECAL

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 119130

See Supercession: 119130-03
(Superseded to 119130-03)

$252.99

$

Usually ships in 3-6 days

0

17

Toro 115760

DISCONTINUED

$

$

Not available

18

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

19

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

20

Toro 112791

PULLEY-IDLER

$103.99

$

In Stock, only 1 left!

0

21

Toro 111769

DECAL BELT INSTALLAT

$

$

Not available

22

Toro 92-7110

DECAL-DANGER

$

$

Not available

23

Toro 111174

See Supercession: 111174-03
(Superseded to 111174-03)

$49.99

$

In Stock, only 1 left!

0
