78346 - Toro 42" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Deck Suspension Parts Diagram

42" Side-Discharge Mower Deck

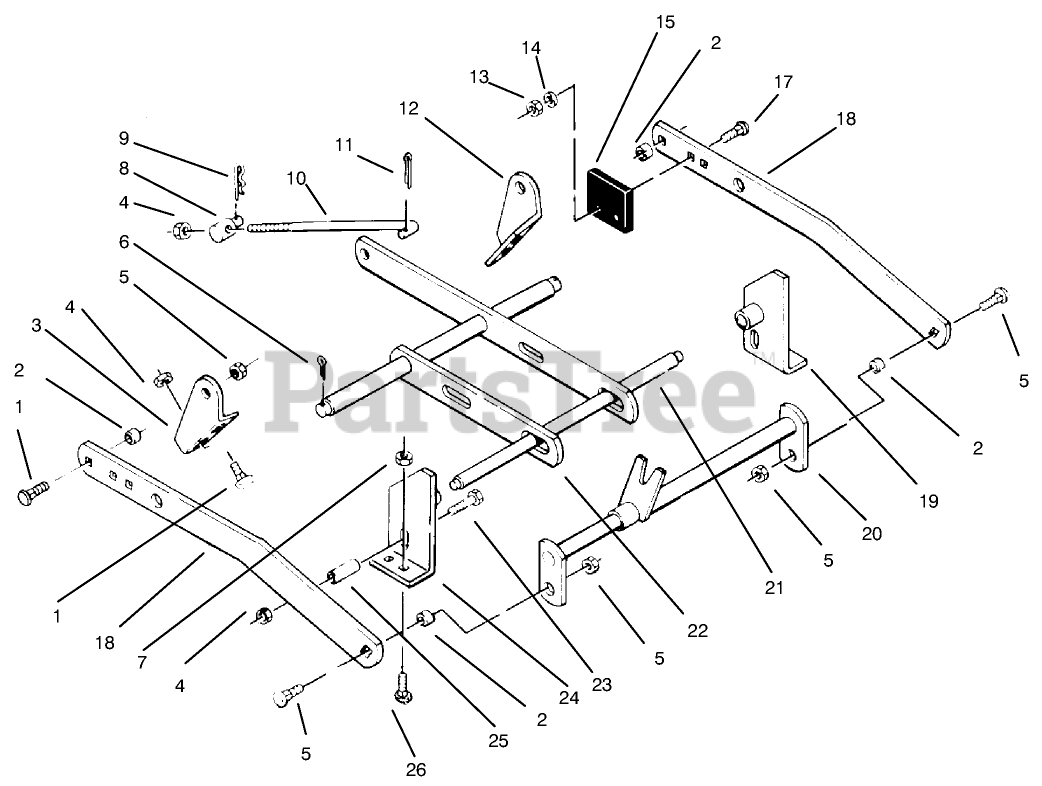

Deck Suspension Parts Diagram

  • Title

1

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

2

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

3

Toro 102430

See Supercession: 102430-01
(Superseded to 102430-01)

$45.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

8

Toro 6739

TRUNNION-LIFT

$27.99

$

In Stock, only 2 left!

0

9

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

10

Toro 92-9841

LIFT ROD

$50.99

$

In Stock, only 1 left!

0

11

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

12

Toro 102429

See Supercession: 102429-01
(Superseded to 102429-01)

$45.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

15

Toro 102322

BUMPER

$9.49

$

Usually ships in 3-6 days

0

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 101777

See Supercession: 101777-01
(Superseded to 101777-01)

$99.99

$

Usually ships in 3-6 days

0

19

Toro 102575

See Supercession: 102575-01
(Superseded to 102575-01)

$74.99

$

Usually ships in 3-6 days

0

20

Toro 101758

See Supercession: 101758-01
(Superseded to 101758-01)

$143.99

$

Usually ships in 3-6 days

0

21

Toro 102570

See Supercession: 102570-03
(Superseded to 102570-03)

$148.99

$

Usually ships in 3-6 days

0

22

Toro 110269

Leveler
(Superseded to 92-0981-03)

$

$

Not available

23

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

24

Toro 102574

See Supercession: 102574-01
(Superseded to 102574-01)

$74.99

$

Usually ships in 3-6 days

0

25

Toro 979360

See Supercession: 9793604
(Superseded to 9793604)

$13.99

$

Usually ships in 3-6 days

0

26

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
