78355 - Toro 42" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) Deck Belt Pulleys Parts Diagram

42" Recycler Mower Deck

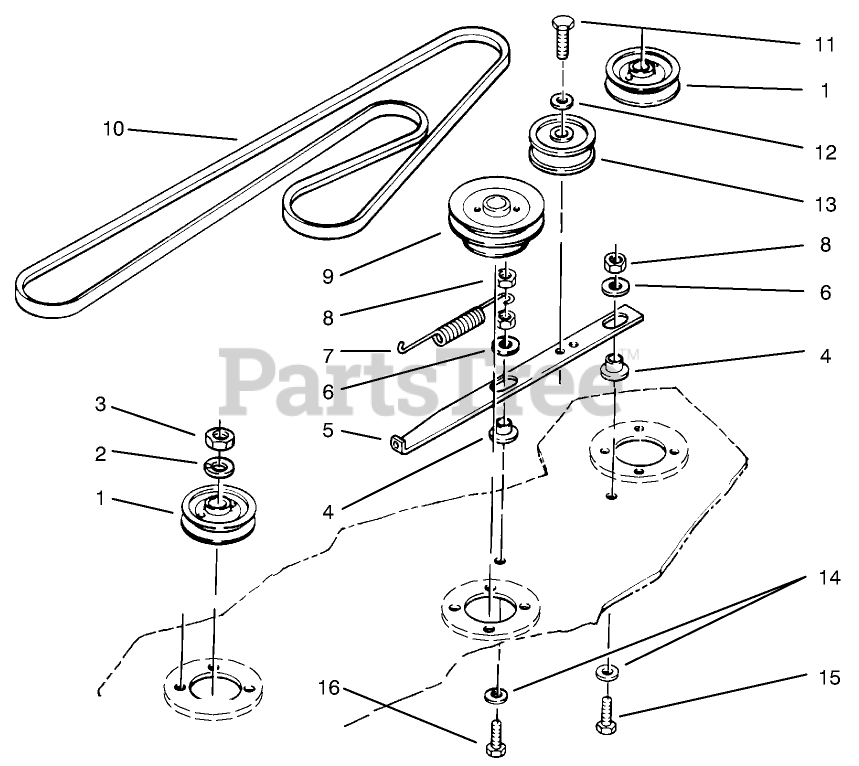

Deck Belt Pulleys Parts Diagram

  • Title

1

Toro 109967

PULLEY

$79.99

$

In Stock, only 2 left!

0

2

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0

4

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

5

Toro 106120

BAR-IDLER SUPPORT

$85.99

$

In Stock, only 2 left!

0

6

Toro 107675

WASHER

$3.99

$

In Stock, Qty 20+

0

7

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 110148

PULLEY

$134.99

$

In Stock, only 1 left!

0

10

Toro 106125

V-BELT

$41.99

$

In Stock, only 2 left!

0

11

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

13

Toro 92-7101

PULLEY-IDLER, FLAT

$45.99

$

In Stock, only 2 left!

0

14

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
