78355 - Toro 42" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) Deck Cover Assembly Parts Diagram

42" Recycler Mower Deck

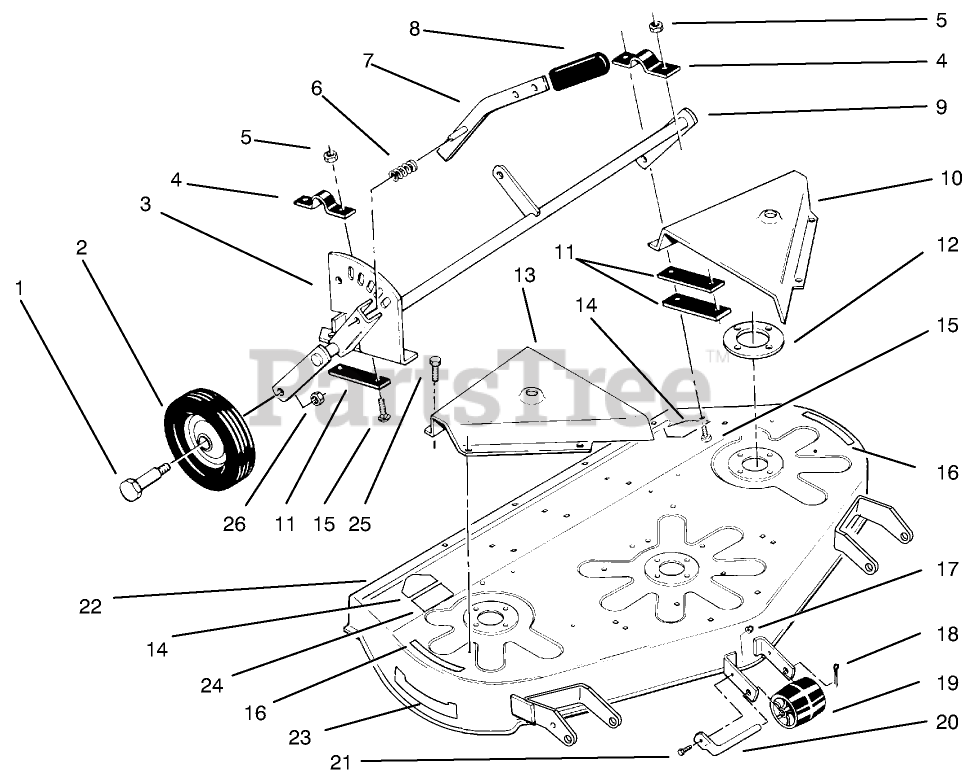

Deck Cover Assembly Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

2

Toro 110506

WHEEL

$46.99

$

In Stock, Qty 15

0

3

Toro 106392

See Supercession: 106392-01
(Superseded to 106392-01)

$37.99

$

In Stock, only 2 left!

0

4

Toro 110841

CLAMP

$9.49

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 101853

SPRING-COMPRESSION

$33.99

$

In Stock, only 3 left!

0

7

Toro 115213

See Supercession: 115213-01
(Superseded to 115213-01)

$35.99

$

Usually ships in 3-6 days

0

8

Toro 103712

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 79-5360

See Supercession: 79-5360-01
(Superseded to 79-5360-01)

$207.99

$

Usually ships in 3-6 days

0

10

Toro 106638

See Supercession: 106638-01
(Superseded to 106638-01)

$72.99

$

Usually ships in 3-6 days

0

11

Toro 110840

See Supercession: 110840-03
(Superseded to 110840-03)

$25.99

$

Usually ships in 3-6 days

0

12

Toro 106117

PLATE-SPINDLE

$23.99

$

In Stock, only 2 left!

0

13

Toro 106409

See Supercession: 106409-01
(Superseded to 106409-01)

$72.99

$

Usually ships in 3-6 days

0

14

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

15

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

16

Toro 92-7110

DECAL-DANGER

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

19

Toro 108798

See Supercession: 94-1599
(Superseded to 94-1599)

$14.99

$

In Stock, Qty 10

0

20

Toro 110847

ROLLER-SHAFT

$31.99

$

In Stock, Qty 5

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 92-7292

ASM DECK/DECAL

$1868.99

$

Usually ships in 3-6 days

0

23

Toro 92-9523

DISCONTINUED

$

$

Not available

24

Toro 106748

DECAL-HEIGHT & BELT

$12.99

$

In Stock, only 1 left!

0

25

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

26

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available
