78390 - Toro 60" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) Deck Assembly Parts Diagram

60" Side-Discharge Mower Deck

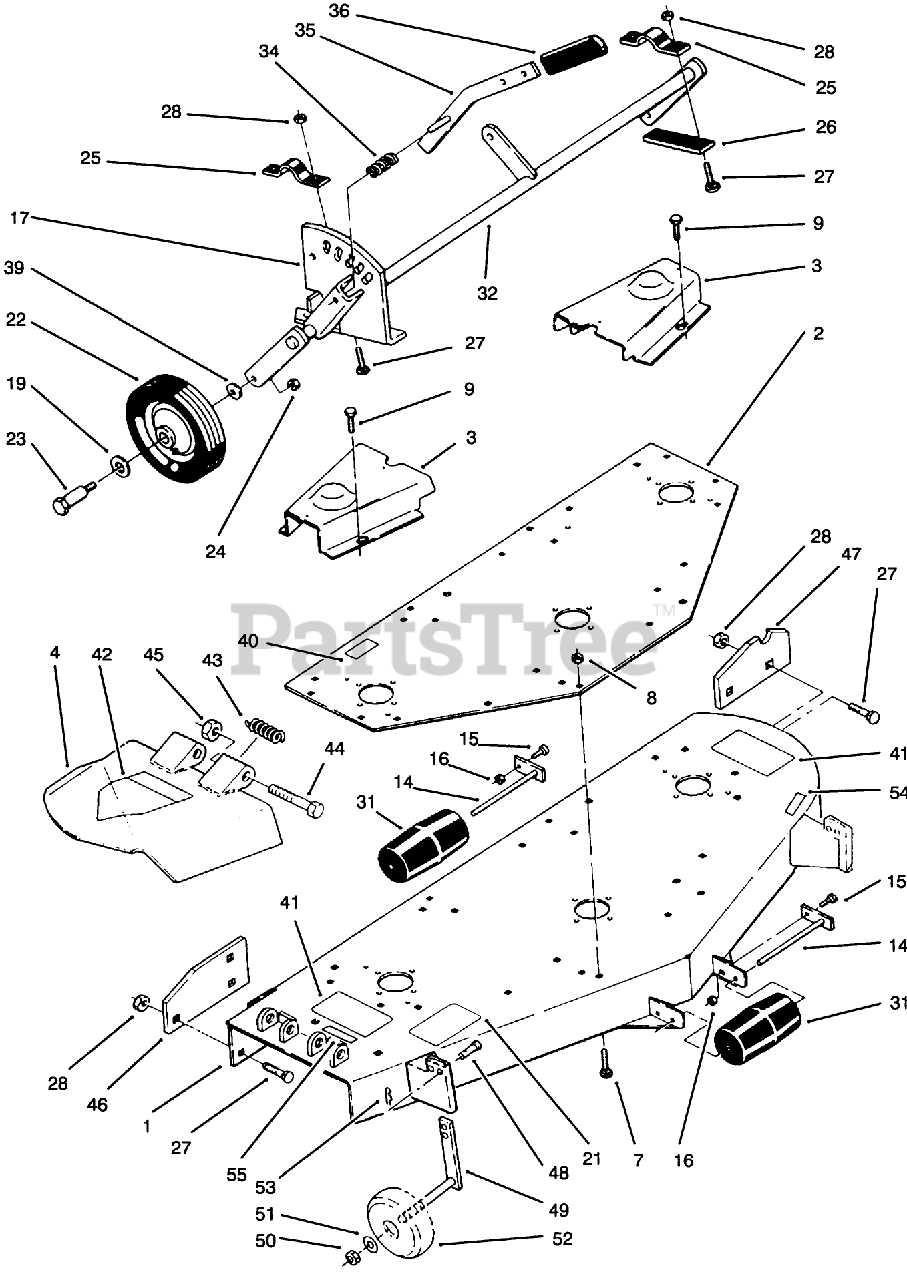

Deck Assembly Parts Diagram

  • Title

1

Toro 92-6507

DECK/DECAL ASM-SERVICE

$3153.99

$

Usually ships in 3-6 days

0

2

Toro 113053

PLATE-TOP REINFOR *R

$

$

Not available

3

Toro 115346

See Supercession: 115346-01
(Superseded to 115346-01)

$310.99

$

Usually ships in 3-6 days

0

4

Toro 92-6508

DISCONTINUED

$

$

Not available

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0

14

Toro 113603

ROLLER-SHAFT

$50.99

$

Usually ships in 3-6 days

0

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 121190

See Supercession: 121190-01
(Superseded to 121190-01)

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 115223

DECAL-BELT INSTALL

$

$

Not available

22

Toro 114275

DISCONTINUED

$

$

Not available

23

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 113057

See Supercession: 113057-03
(Superseded to 113057-03)

$

$

Not available

26

Toro 113056

BAR*

$

$

Not available

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 113349

ROLLER-ANTI SCALP

$86.99

$

In Stock, only 1 left!

0

32

Toro 113058

See Supercession: 113058-01
(Superseded to 113058-01)

$616.99

$

Usually ships in 3-6 days

0

34

Toro 101853

SPRING-COMPRESSION

$33.99

$

In Stock, only 3 left!

0

35

Toro 102431

DISCONTINUED
(Superseded to 102431-01)

$

$

Not available

36

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

39

Toro 109901

SPACER

$31.99

$

Usually ships in 3-6 days

0

40

Toro 111655

DECAL-HOC

$4.99

$

Usually ships in 3-6 days

0

41

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

42

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

43

Toro 40-6230

SPRING

$

$

Not available

44

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 2 left!

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Toro 79-1240

See Supercession: 79-1240-01
(Superseded to 79-1240-01)

$

$

Not available

47

Toro 79-1230

See Supercession: 79-1230-03
(Superseded to 79-1230-03)

$

$

Not available

48

Toro 932963

See Supercession: 9329634
(Superseded to 9329634)

$4.49

$

Usually ships in 3-6 days

0

49

Toro 68-2350

GAGE-WHEEL

$

$

Not available

50

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

51

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

53

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

54

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$

$

Not available

55

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0
