78395 - Toro 60" Side-Discharge Mower Deck for 5xi Tractor (SN: 200000001 - 200999999) (2000) Deck Suspension Assembly Parts Diagram

60" Side-Discharge Mower Deck for 5xi Tractor

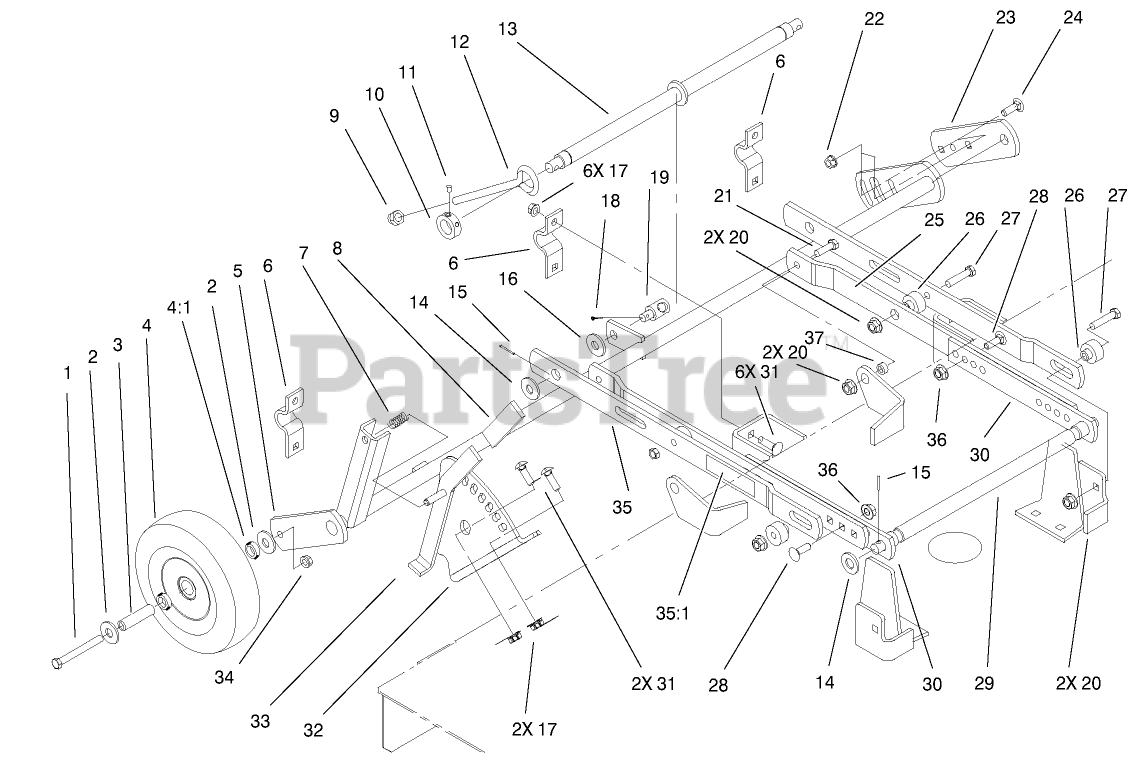

Deck Suspension Assembly Parts Diagram

  • Title

1

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 109901

SPACER

$31.99

$

Usually ships in 3-6 days

0

4

Toro 114275

DISCONTINUED

$

$

Not available

4:1

Toro 114276

DISCONTINUED

$

$

Not available

5

Toro 94-7584-01

SUPPORT-WHEEL, 60"

$583.99

$

Usually ships in 3-6 days

0

6

Toro 94-7426-03

See Supercession: 94-7426
(Superseded to 94-7426)

$41.99

$

Usually ships in 3-6 days

0

7

Toro 101853

SPRING-COMPRESSION

$33.99

$

In Stock, only 3 left!

0

8

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

9

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 94-7953

COLLAR

$33.99

$

Usually ships in 3-6 days

0

11

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

12

Toro 94-7954

ROD-ADJUSTMENT, LEVEL

$89.99

$

Usually ships in 3-6 days

0

13

Toro 94-7943-01

SHAFT ASM-LEVELER

$138.99

$

Usually ships in 3-6 days

0

14

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 933216

PIN-ROLL, SPIROL

$3.99

$

In Stock, only 1 left!

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

19

Toro 94-7802

TRUNNION

$43.99

$

Usually ships in 3-6 days

0

20

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

21

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

22

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

23

Toro 94-7580-01

SUPPORT-GAGE WHEEL

$

$

Not available

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 94-7801-01

DRAFTBAR

$

$

Not available

26

Toro 115706

SPACER

$32.99

$

Usually ships in 3-6 days

0

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3231-38

SCREW-CARR

$8.49

$

In Stock, only 2 left!

0

29

Toro 94-2130-01

See Supercession: 94-2130-03
(Superseded to 94-2130-03)

$169.99

$

Usually ships in 3-6 days

0

30

Toro 94-7804-01

DISCONTINUED

$

$

Not available

31

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

32

Toro 94-2321-01

QUADRANT-DECK

$

$

Not available

33

Toro 94-2046-01

LEVER-HOC

$

$

Not available

34

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

35

Toro 98-5041

LH LEVELER ASM *B

$

$

Not available

35

Toro 98-5043

DISCONTINUED

$

$

Not available

35:1

Toro 98-3478

DECAL-WARNING

$

$

Not available

36

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 20+

0

37

Toro 114127

SPACER

$9.49

$

In Stock, only 4 left!

0
