78395 - Toro 60" Side-Discharge Mower Deck for 5xi Tractor (SN: 230000001 - 230999999) (2003) Spindle and Blade Assembly Parts Diagram

60" Side-Discharge Mower Deck for 5xi Tractor

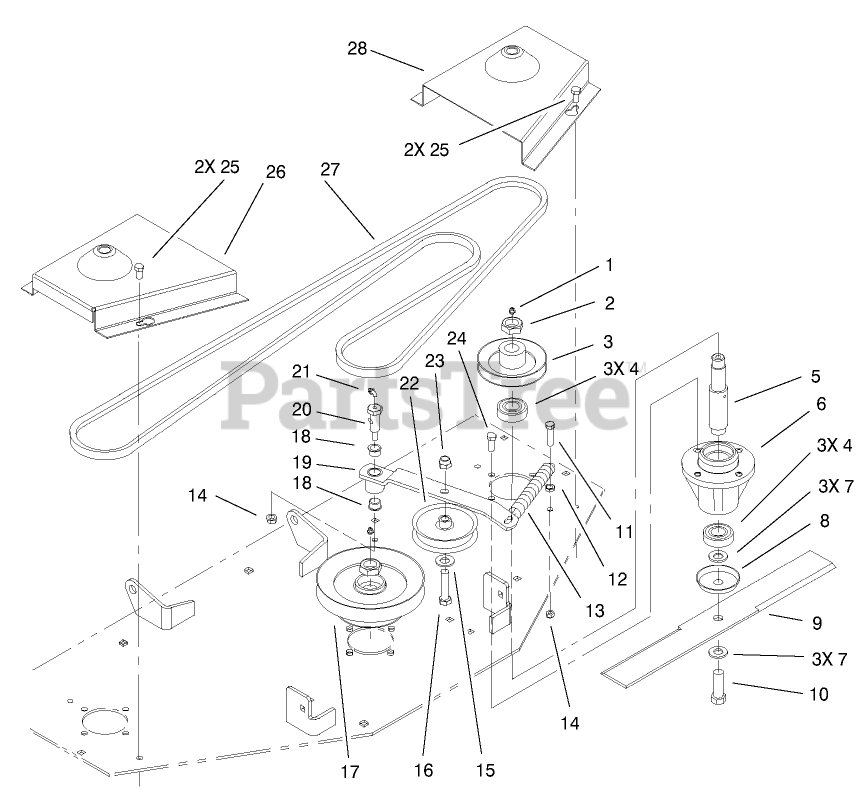

Spindle and Blade Assembly Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

2

Toro 3296-60

NUT-LOCK, NI

$5.99

$

In Stock, Qty 5

0

3

Toro 94-7442

PULLEY-PTO

$

$

Not available

4

Toro 113514

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

5

Toro 94-2315

SHAFT - SPINDLE

$416.99

$

Usually ships in 3-6 days

0

6

Toro 94-2314

HOUSING - SPINDLE

$301.99

$

Usually ships in 3-6 days

0

7

Toro 920260

WASHER-SPECIAL

$2.99

$

In Stock, only 4 left!

0

8

Toro 113512

CUP-SPINDLE

$

$

Not available

9

Toro 112947

BLADE

$35.99

$

In Stock, only 1 left!

0

10

Toro 327-6

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

13

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 104-0579

PULLEY-DOUBLE

$

$

Not available

18

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

19

Toro 94-2319-03

ARM-IDLER

$

$

Not available

20

Toro 120060

BOLT-SHOULDER

$

$

Not available

21

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

22

Toro 114144

PULLEY-IDLER

$170.99

$

Usually ships in 3-6 days

0

23

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

Usually ships in 3-6 days

0

25

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0

26

Toro 94-2320-01

COVER-BELT, RH,

$

$

Not available

27

Toro 95-4229

BELT-V DECK

$284.99

$

Usually ships in 3-6 days

0

28

Toro 95-4241-01

COVER-BELT,LH,

$

$

Not available
