78442 - Toro 42" Rear-Discharge Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) Spindle Blade Assembly Parts Diagram

42" Rear-Discharge Mower Deck for 5xi Tractors

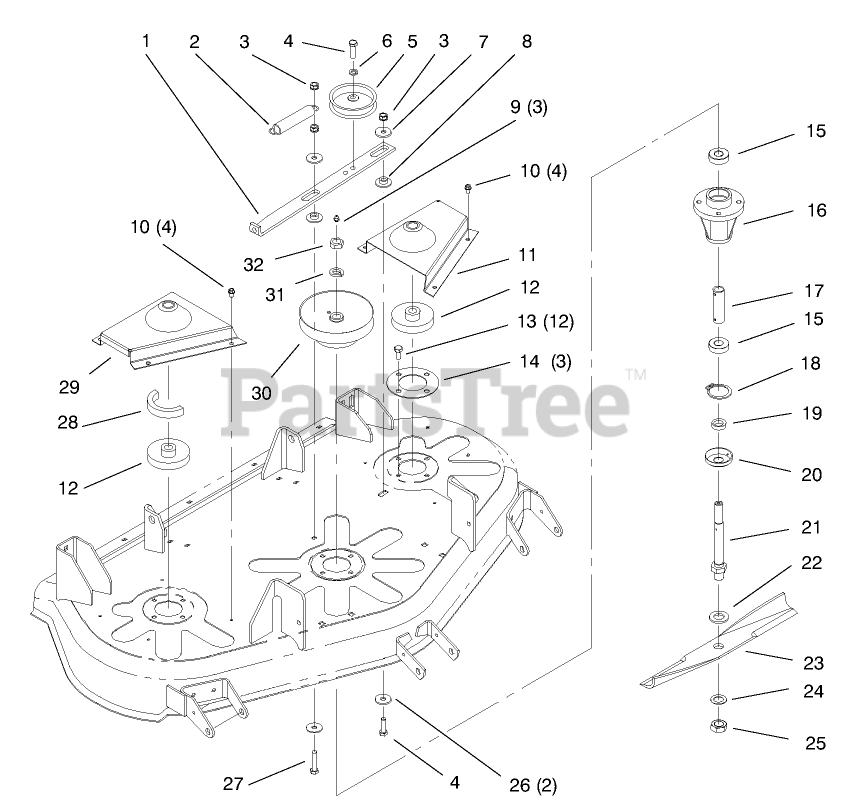

Spindle Blade Assembly Parts Diagram

  • Title

1

Toro 106120

BAR-IDLER SUPPORT

$85.99

$

In Stock, only 2 left!

0

2

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

5

Toro 92-7101

PULLEY-IDLER, FLAT

$45.99

$

In Stock, only 2 left!

0

6

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

7

Toro 107675

WASHER

$3.99

$

In Stock, Qty 20+

0

8

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

9

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

10

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

11

Toro 95-4098-01

COVER-BELT 42 DECK

$137.99

$

Usually ships in 3-6 days

0

12

Toro 109967

PULLEY

$79.99

$

In Stock, only 2 left!

0

13

Toro 9080326

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

14

Toro 106117

PLATE-SPINDLE

$23.99

$

In Stock, only 2 left!

0

15

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

16

Toro 114568

HOUSING-SPINDLE

$110.99

$

In Stock, only 4 left!

0

17

Toro 116085

TUBE

$37.99

$

In Stock, only 2 left!

0

18

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

19

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

20

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

21

Toro 112674

SHAFT-SPINDLE

$96.99

$

In Stock, only 4 left!

0

22

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

23

Toro 106108

See Supercession: 106635
(Superseded to 106635)

$108.99

$

In Stock, only 2 left!

0

24

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

25

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

26

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 95-4230

V-BELT-42IN DECK

$128.99

$

Usually ships in 3-6 days

0

29

Toro 95-4099-01

COVER - BELT 42 DECK

$

$

Not available

30

Toro 95-4049

PULLEY-DOUBLE

$409.99

$

Usually ships in 3-6 days

0

31

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0
