78450 (HD 1500) - Toro 48" Titan Zero-Turn Mower (SN: 402100000 - 403062673) Fuel Tank and Vent Hose System Assembly Parts Diagram

48" Titan Zero-Turn Mower

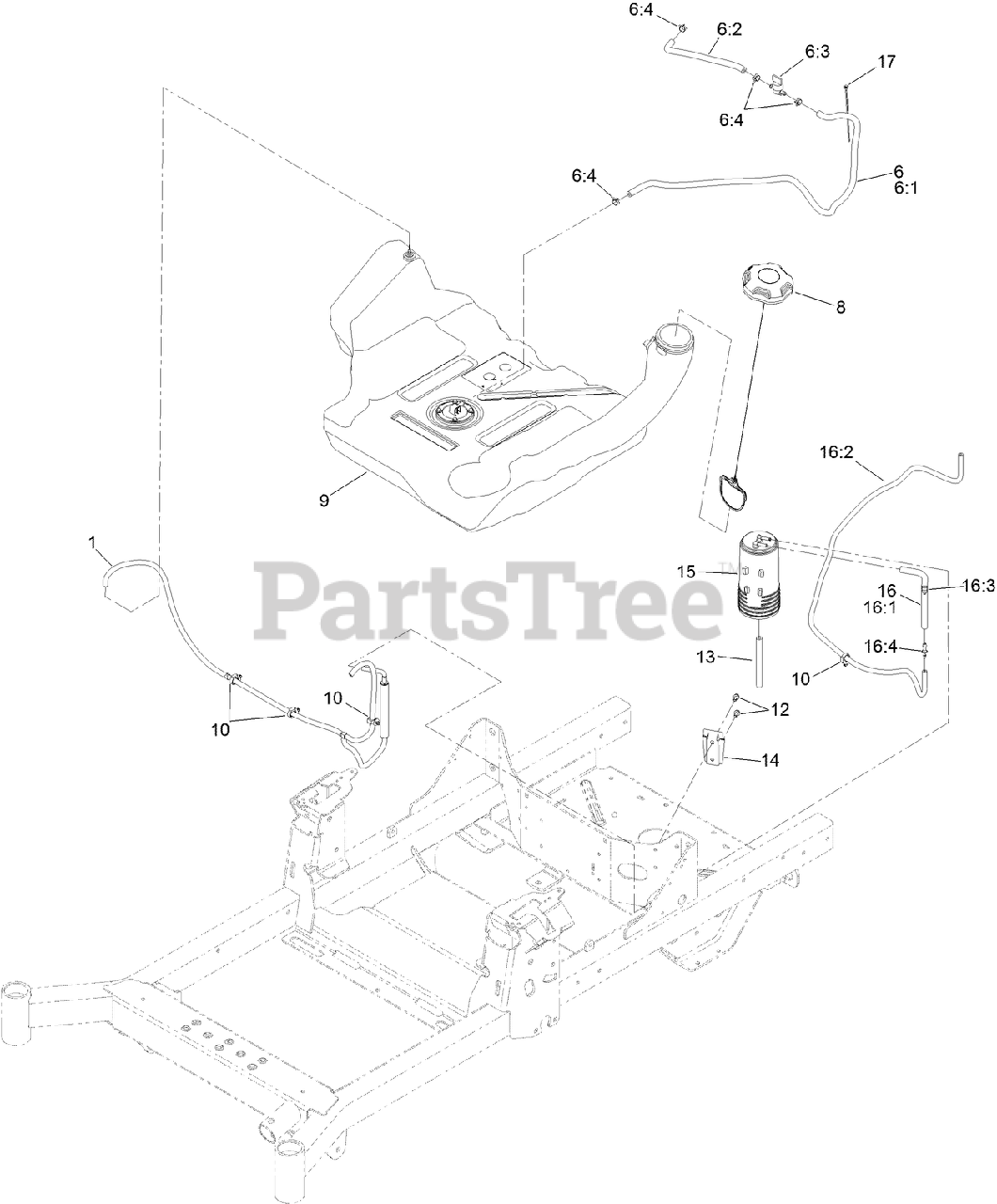

Fuel Tank and Vent Hose System Assembly Parts Diagram

  • Title

1

Toro 126-8734

VENT HOSE ASM

$163.99

$

Usually ships in 3-6 days

0

6

Toro 126-8739

FUEL HOSE ASM

$70.99

$

Usually ships in 3-6 days

0

6:1

Toro 110-5702

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

6:2

Toro 109-0282

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

6:3

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

6:4

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

8

Toro 126-4723

See Supercession: 135-4801
(Superseded to 135-4801)

$42.99

$

In Stock, only 1 left!

0

9

Toro 126-4724

TANK-FUEL

$514.99

$

Usually ships in 3-6 days

0

10

Toro 126-5523

CLIP

$2.99

$

Usually ships in 3-6 days

0

12

Toro 93-6083

SCREW-HWH

$1.49

$

In Stock, Qty 8

0

13

Toro 109-0678

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

14

Toro 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

15

Toro 117-1221

CANISTER-CARBON, 800CC

$84.99

$

Usually ships in 3-6 days

0

16

Toro 126-8892

VENT HOSE ASM

$121.99

$

Usually ships in 3-6 days

0

16:1

Toro 110-1876

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0

16:2

Toro 108-9698

HOSE-FUEL

$46.99

$

Usually ships in 3-6 days

0

16:3

Toro 120-2038

CARTRIDGE-VALVE, CHECK

$49.99

$

Usually ships in 3-6 days

0

16:4

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

17

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
