78452 - Toro 52" Side-Discharge Mower Deck for 5xi Tractors (SN: 200000001 - 200999999) (2000) Deck Assembly Parts Diagram

52" Side-Discharge Mower Deck for 5xi Tractors

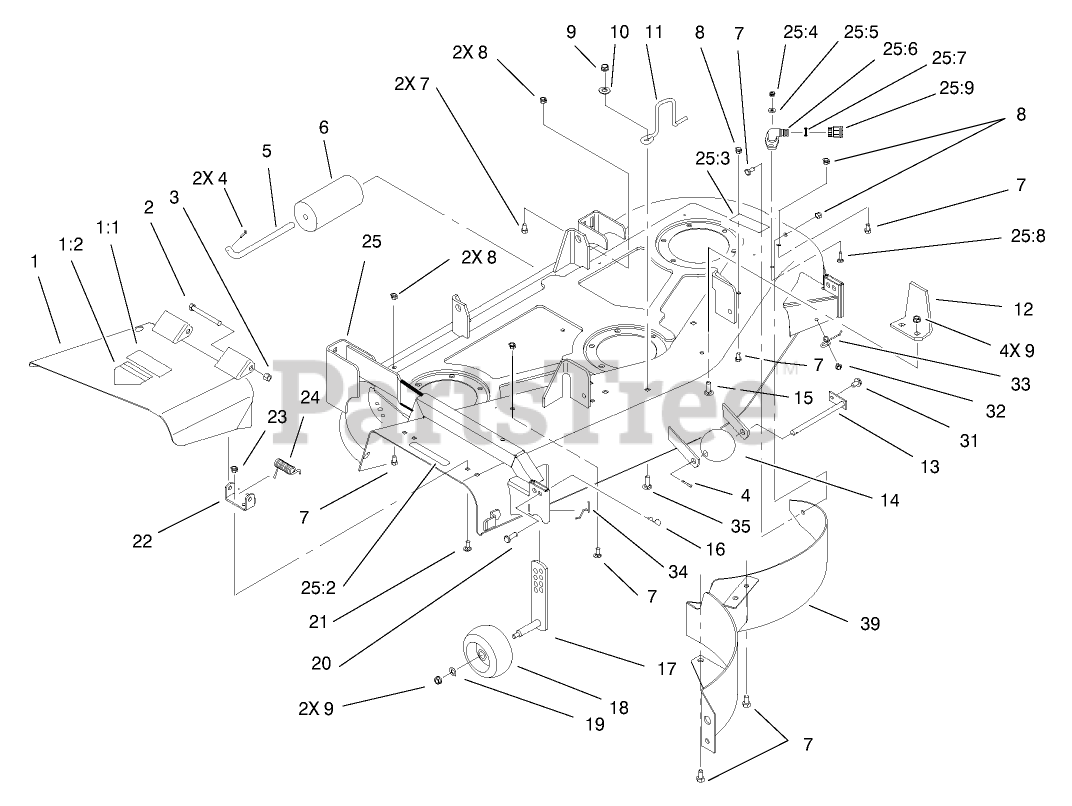

Deck Assembly Parts Diagram

  • Title

1

Toro 94-1580

DISCONTINUED
(Superseded to 94-1580-01)

$

$

Not available

1

Toro 94-1581

See Supercession: 94-1581-01
(Superseded to 94-1581-01)

$456.99

$

Usually ships in 3-6 days

0

1:1

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

1:1

Toro 93-7317

DECAL-DANGER

$

$

Not available

1:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

1:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

2

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

3

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

5

Toro 40-0340

SHAFT-ROLLER, REAR

$35.99

$

Usually ships in 3-6 days

0

6

Toro 36-1740

ROLLER-DECK

$49.99

$

In Stock, only 2 left!

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3256-41

WASHER

$1.99

$

Usually ships in 3-6 days

0

11

Toro 95-3953

DISCONTINUED

$

$

Not available

12

Toro 94-7952-01

See Supercession: 94-7952-03
(Superseded to 94-7952-03)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 98-5030

SHAFT ASM

$113.99

$

Usually ships in 3-6 days

0

14

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

15

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

16

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

17

Toro 68-2350

GAGE-WHEEL

$

$

Not available

18

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

21

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

22

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

23

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 40-6230

SPRING

$

$

Not available

25

Toro 99-8083

DISCONTINUED

$

$

Not available

25

Toro 98-5093

DISCONTINUED

$

$

Not available

25:2

Toro 92-7109

DECAL-CAUTION

$

$

Not available

25:2

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 7

0

25:3

Toro 93-7317

DECAL-DANGER

$

$

Not available

25:3

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

25:4

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

25:5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25:6

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

25:7

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

25:8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25:9

Toro 95-3270

CONNECTOR-HOSE

$27.99

$

In Stock, Qty 20+

0

31

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

32

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

33

Toro 98-5032

DISCONTINUED

$

$

Not available

34

Toro 98-5033

SPRING-GAGE WHEEL, RH

$

$

Not available

35

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

39

Toro 94-2509-03

BAFFLE ASM-MULCH, LH

$

$

Not available
