78456 - Toro 62" Triple Soft Bagger, 200 Series Z Master (SN: 230000001 - 230999999) (2003) Bagger Hood Assembly Parts Diagram

62" Triple Soft Bagger, 200 Series Z Master

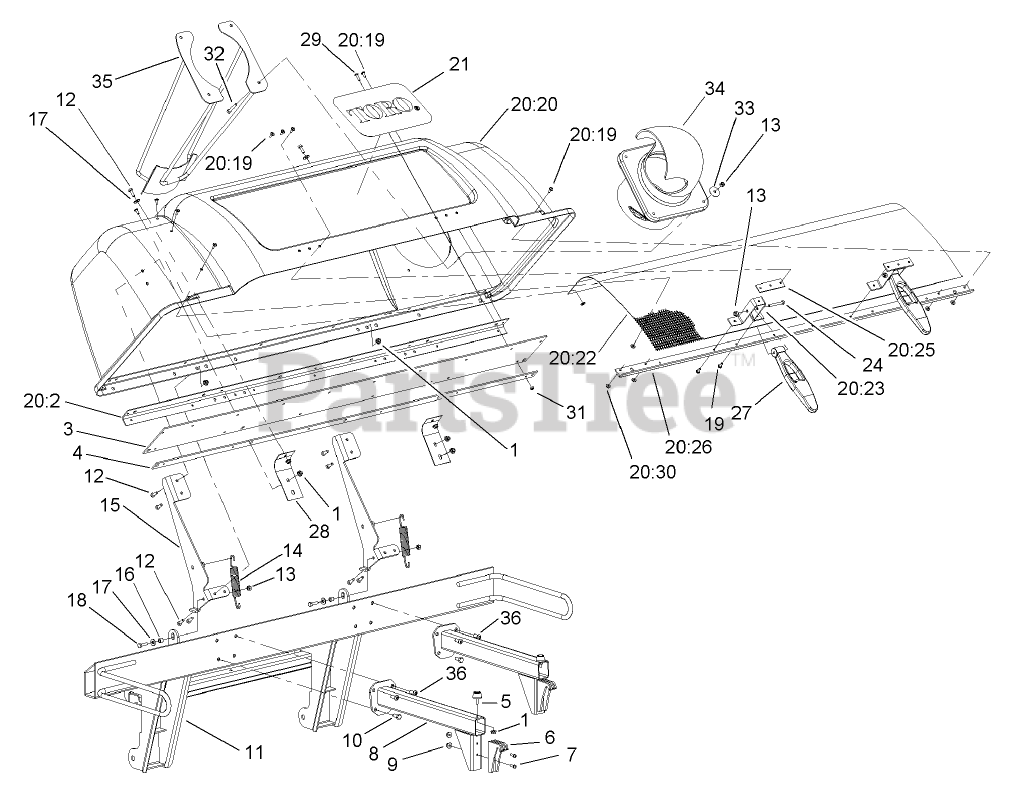

Bagger Hood Assembly Parts Diagram

  • Title

1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Toro 103-0451

SEAL-HINGE

$316.99

$

Usually ships in 3-6 days

0

4

Toro 103-0452-03

PLATE-BACKING

$45.99

$

Usually ships in 3-6 days

0

5

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 1-653404

CATCH

$42.99

$

In Stock, only 2 left!

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-652414-03

See Supercession: 103-5124-03
(Superseded to 103-5124-03)

$180.99

$

Usually ships in 3-6 days

0

9

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 7

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 103-0428-03

See Supercession: 103-5130
(Superseded to 103-5130)

$1021.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-653544

SPRING-EXTENSION

$9.99

$

Usually ships in 3-6 days

0

15

Toro 103-0430-03

HINGE ASM

$147.99

$

Usually ships in 3-6 days

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20

Toro 106-9742

HOOD ASM

$

$

Not available

20:2

Toro 103-0382-03

STIFFENER-BAGGER, TOP

$71.99

$

Usually ships in 3-6 days

0

20:19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20:20

Toro 106-8024

HOOD-BAGGER, TRIPLE

$

$

Not available

20:21

Toro 67-7310

DECAL

$70.99

$

Usually ships in 3-6 days

0

20:22

Toro 103-0440

SCREEN-BAGGER

$35.99

$

In Stock, only 2 left!

0

20:23

Toro 103-0379

BRACKET-MOUNT

$45.99

$

Usually ships in 3-6 days

0

20:25

Toro 103-0376

PLATE-LATCH, REINFORCEMENT

$9.49

$

In Stock, only 1 left!

0

20:26

Toro 103-0380-03

SUPPORT-SCREEN

$63.99

$

Usually ships in 3-6 days

0

20:30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 10

0

27

Toro 1-653403

LATCH

$90.99

$

In Stock, only 2 left!

0

28

Toro 103-0391

REINFORCEMENT-HOOD, BAGGER

$13.99

$

Usually ships in 3-6 days

0

29

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

33

Toro 3256-58

See Supercession: 3256-55
(Superseded to 3256-55)

$5.99

$

In Stock, Qty 11

0

34

Toro 105-5873

TUBE-BAGGER, UPPER

$

$

Not available

35

Toro 106-0793-03

FLEX HOSE SUPPORT ASM

$

$

Not available

36

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0
