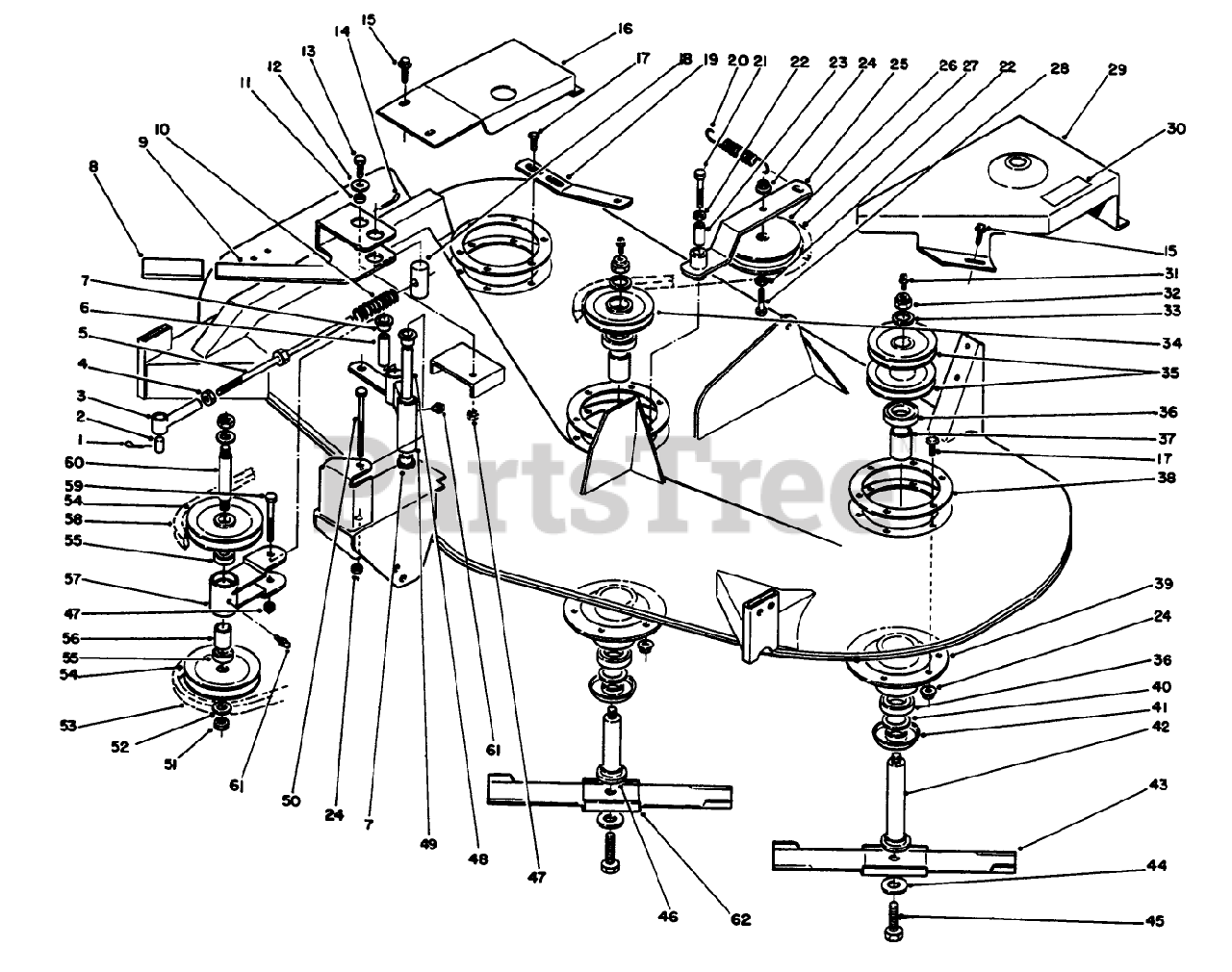

78460 - Toro 52" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Deck Belt Covers Spindles Parts Diagram

52" Side-Discharge Mower Deck

Deck Belt Covers Spindles Parts Diagram

  • Title

1

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

2

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 282-11

DISCONTINUED

$

$

Not available

4

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

5

Toro 79-0180

ROD-W.A. *R

$

$

Not available

6

Toro 79-2760

SPACER

$

$

Not available

7

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

8

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

9

Toro 79-0150

See Supercession: 79-0150-01
(Superseded to 79-0150-01)

$

$

Not available

10

Toro 79-0140

SPRING-COMPRESSION

$

$

Not available

11

Toro 104525

See Supercession: 93-3658
(Superseded to 93-3658)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

15

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 79-2610

See Supercession: 79-2610-01
(Superseded to 79-2610-01)

$470.99

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 79-0200

TRUNNION

$55.99

$

Usually ships in 3-6 days

0

19

Toro 79-0160

See Supercession: 79-0160-01
(Superseded to 79-0160-01)

$

$

Not available

20

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

21

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

24

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

25

Toro 55-7640

See Supercession: 55-7640-03
(Superseded to 55-7640-03)

$139.99

$

Usually ships in 3-6 days

0

26

Toro 93-1622

PULLEY-IDLER

$54.99

$

In Stock, Qty 7

0

27

Toro 102742

See Supercession: 94-2501
(Superseded to 94-2501)

$41.99

$

In Stock, Qty 15

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 79-0540

See Supercession: 79-0540-01
(Superseded to 79-0540-01)

$

$

Not available

30

Toro 111655

DECAL-HOC

$4.99

$

Usually ships in 3-6 days

0

31

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

32

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

33

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

34

Toro 79-0620

PULLEY

$

$

Not available

35

Toro 79-0530

DISCONTINUED

$

$

Not available

36

Toro 113514

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

37

Toro 79-1890

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

38

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$94.99

$

Usually ships in 3-6 days

0

39

Toro 79-2480

HOUSING-SPINDLE *B

$241.99

$

Usually ships in 3-6 days

0

40

Toro 120860

WASHER-WHEEL

$7.99

$

In Stock, only 4 left!

0

41

Toro 79-1920

SHIELD-BEARING

$15.99

$

In Stock, only 3 left!

0

42

Toro 79-1910

SHAFT-SPINDLE

$

$

Not available

43

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$22.99

$

In Stock, Qty 17

0

44

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

45

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

46

Toro 79-1900

SHAFT-SPINDLE

$288.99

$

Usually ships in 3-6 days

0

47

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

48

Toro 79-0280

SPACER

$

$

Not available

49

Toro 79-0240

DISCONTINUED
(Superseded to 79-0240-01)

$

$

Not available

50

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

51

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0

52

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

53

Toro 116160

V-BELT

$76.99

$

Usually ships in 3-6 days

0

54

Toro 79-0320

PULLEY *R

$

$

Not available

55

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

56

Toro 79-0340

SPACER

$

$

Not available

57

Toro 79-0290

See Supercession: 79-0290-01
(Superseded to 79-0290-01)

$

$

Not available

58

Toro 79-0550

V-BELT

$155.99

$

Usually ships in 3-6 days

0

59

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

60

Toro 79-0330

COUNTER-SHAFT

$

$

Not available

61

Toro 302-26

FITTING-GREASE

$7.99

$

Usually ships in 3-6 days

0

62

Toro 92-9820

STIFFENER-BLADE

$71.99

$

Usually ships in 3-6 days

0
