78460 - Toro 52" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Deck Lift Assembly Parts Diagram

52" Side-Discharge Mower Deck

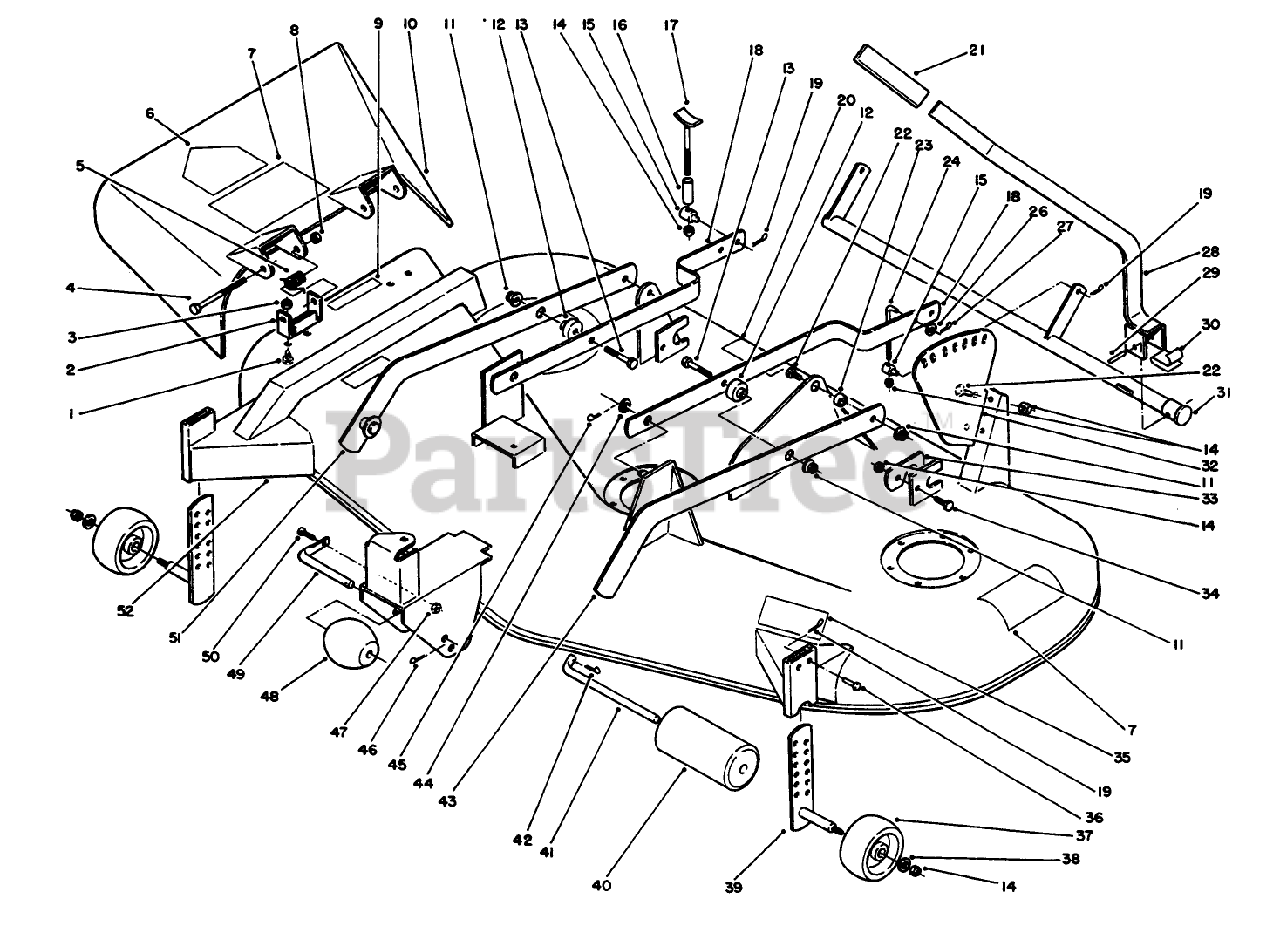

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, only 1 left!

0

2

Toro 29-5590

See Supercession: 29-5590-03
(Superseded to 29-5590-03)

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

5

Toro 40-6230

SPRING

$

$

Not available

6

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

7

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

8

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

9

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

10

Toro 79-6120

DISCONTINUED

$

$

Not available

11

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

12

Toro 115706

SPACER

$32.99

$

Usually ships in 3-6 days

0

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 79-2790

TRUNNION

$

$

Not available

16

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available

17

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

18

Toro 120070

See Supercession: 120070-01
(Superseded to 120070-01)

$

$

Not available

19

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

20

Toro 79-2460

DISCONTINUED

$

$

Not available

21

Toro 103712

GRIP

$9.49

$

Usually ships in 3-6 days

0

22

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 115705

SPACER

$

$

Not available

24

Toro 121010

ROD-LIFT

$29.99

$

Usually ships in 3-6 days

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

28

Toro 79-1010

See Supercession: 79-1010-01
(Superseded to 79-1010-01)

$195.99

$

Usually ships in 3-6 days

0

29

Toro 933245

SPIROL PIN

$

$

Not available

30

Toro 112730

CLIP-SPRING

$

$

Not available

31

Toro 79-0810

See Supercession: 79-0810-01
(Superseded to 79-0810-01)

$

$

Not available

32

Toro 78-2470

See Supercession: 78-2470-01
(Superseded to 78-2470-01)

$106.99

$

Usually ships in 3-6 days

0

33

Toro 79-0590

LOCK-SHAFT

$

$

Not available

34

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

35

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$

$

Not available

36

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

37

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 68-2350

GAGE-WHEEL

$

$

Not available

40

Toro 36-1740

ROLLER-DECK

$49.99

$

In Stock, only 2 left!

0

41

Toro 40-0340

SHAFT-ROLLER, REAR

$35.99

$

Usually ships in 3-6 days

0

42

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

43

Toro 117071

See Supercession: 117071-01
(Superseded to 117071-01)

$

$

Not available

44

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

45

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

46

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

49

Toro 118960

See Supercession: 118960-03
(Superseded to 118960-03)

$50.99

$

In Stock, only 2 left!

0

50

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 117072

See Supercession: 117072-01
(Superseded to 117072-01)

$

$

Not available

52

Toro 79-0830

See Supercession: 79-0830-01
(Superseded to 79-0830-01)

$

$

Not available
