78474 - Toro 72" E-Z Vac DFS Collection System (SN: 400000000 - 999999999) Weight Assembly Parts Diagram
72" E-Z Vac DFS Collection System

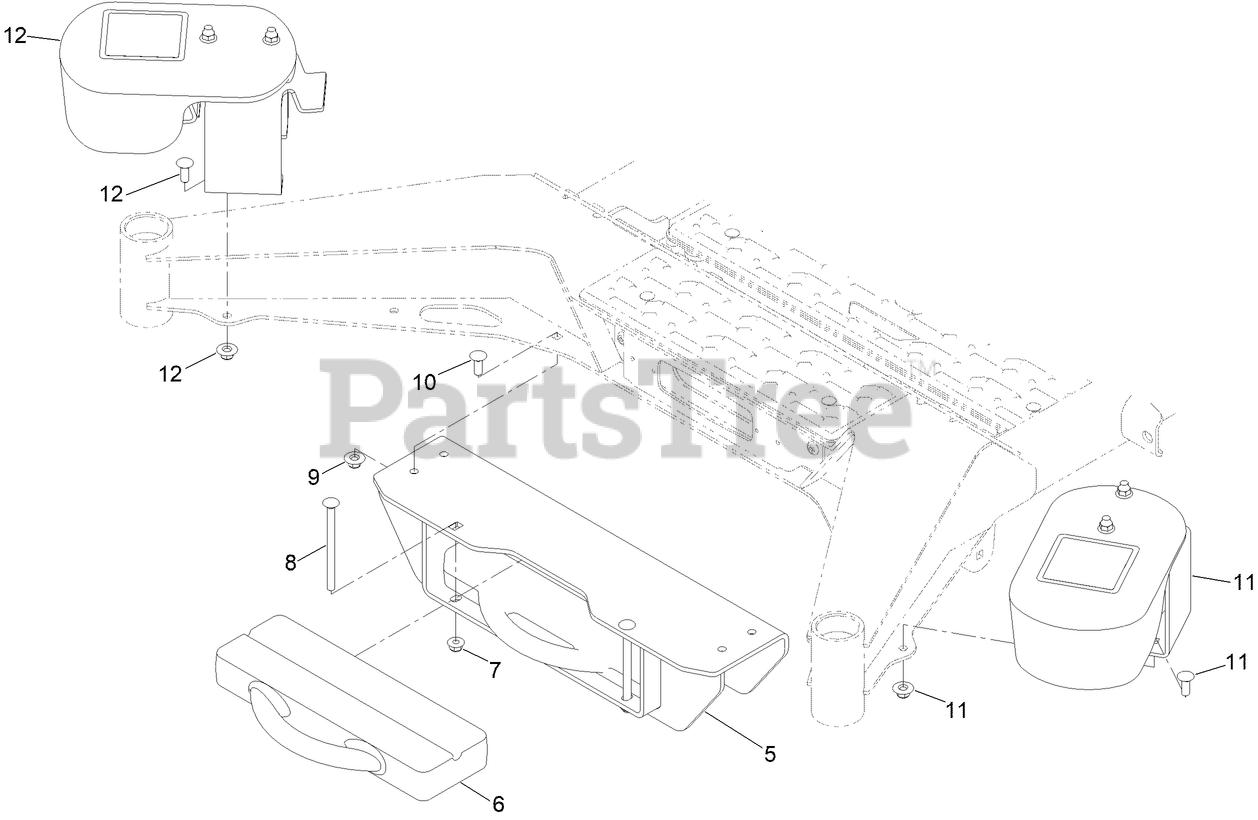

Weight Assembly Parts Diagram
Toro 144-6640-01
WEIGHT BRACKET ASM
$380.99
$
Usually ships in 3-6 days
$505.99
$
Usually ships in 3-6 days
Toro 104-8301
NUT-HF, NI
$1.49
$
In Stock, Qty 20+
Toro 109-6795
BOLT-CARR
$5.99
$
In Stock, only 4 left!
Toro 109-6658
NUT-FLANGE, NI
$1.49
$
In Stock, Qty 20+
Toro 3231-22
SCREW-CARR
$3.99
$
In Stock, Qty 20+
11
ASM-LH CASTER WEIGHT
Note: Not serviced separately
$
$
Not available
12
ASM-RH CASTER WEIGHT
Note: Not serviced separately
$
$
Not available
