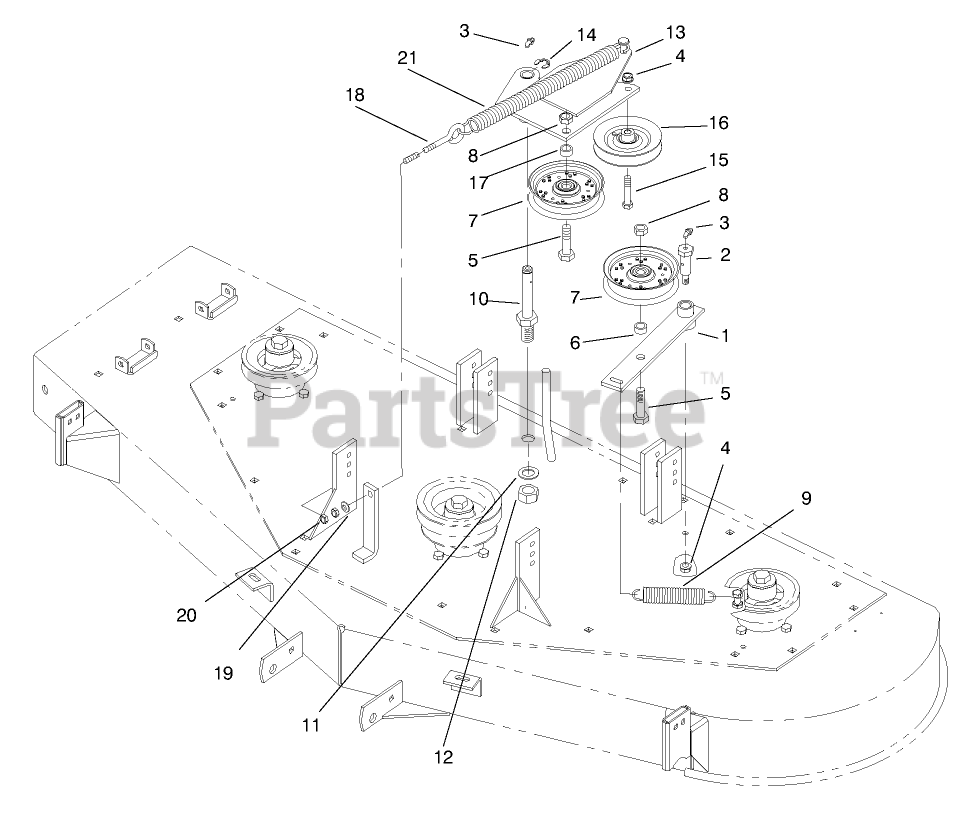

78476 - Toro 60" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) Idler And Pulley Asm Parts Diagram

60" Side-Discharge Mower Deck

Idler And Pulley Asm Parts Diagram

  • Title

1

Toro 114835-01

See Supercession: 99-5856
(Superseded to 99-5856)

$

$

Not available

2

Toro 120060

BOLT-SHOULDER

$

$

Not available

3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

6

Toro 9118

DISCONTINUED

$

$

Not available

7

Toro 113633

See Supercession: 113633-03
(Superseded to 113633-03)

$151.99

$

Usually ships in 3-6 days

0

8

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

10

Toro 114911

SHAFT-BELT TEN PI

$

$

Not available

11

Toro 67-9410

WASHER

$4.49

$

Usually ships in 3-6 days

0

12

Toro 3296-50

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

13

Toro 94-6216

See Supercession: 94-6216-01
(Superseded to 94-6216-01)

$

$

Not available

14

Toro 105005

RETAINING RING

$

$

Not available

15

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 94-6218

See Supercession: 94-2447
(Superseded to 94-2447)

$140.99

$

Usually ships in 3-6 days

0

17

Toro 9118

DISCONTINUED

$

$

Not available

18

Toro 79-3120

EYE-BOLT

$

$

Not available

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

21

Toro 114868

See Supercession: 114868-01
(Superseded to 114868-01)

$

$

Not available
