78478 - Toro 60" Side-Discharge Mower Deck (SN: 079000400 - 079999999) (1997) Drive Idler Asm Parts Diagram

60" Side-Discharge Mower Deck

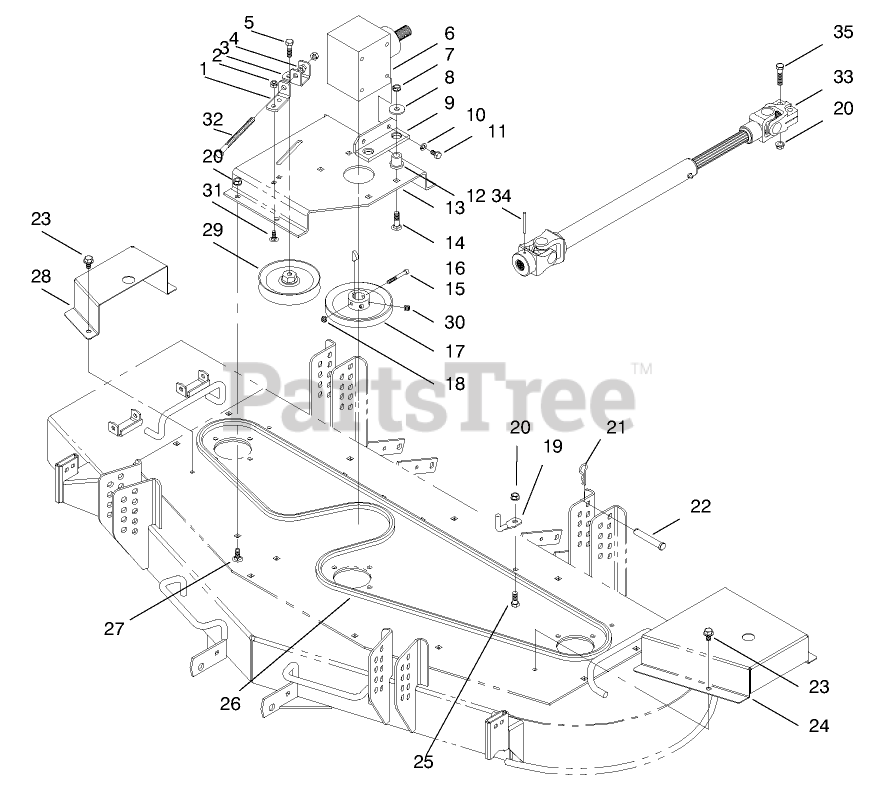

Drive Idler Asm Parts Diagram

  • Title

1

Toro 94-4615

DISCONTINUED
(Superseded to 94-4633-01)

$

$

Not available

1

Toro 94-4756

See Supercession: 94-4755
(Superseded to 94-4755)

$

$

Not available

1

Toro 94-9570

See Supercession: 94-9570-01
(Superseded to 94-9570-01)

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 74-0240

CASTER SHAFT

$58.99

$

Usually ships in 3-6 days

0

2

Toro 94-4757

See Supercession: 94-4755
(Superseded to 94-4755)

$

$

Not available

3

Toro 94-9351

See Supercession: 94-9351-01
(Superseded to 94-9351-01)

$

$

Not available

4

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

5

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 94-4644

See Supercession: 100-5846
(Superseded to 100-5846)

$

$

Not available

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Toro 94-9582

DISCONTINUED

$

$

Not available

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 94-9539-01

DISCONTINUED

$

$

Not available

13

Toro 95-1973

DISCONTINUED

$

$

Not available

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 3274-54

SCREW-HSH

$1.99

$

Usually ships in 3-6 days

0

16

Toro 3257-14

KEY

$7.49

$

Usually ships in 3-6 days

0

17

Toro 94-9535

PULLEY-OUTPUT

$171.99

$

Usually ships in 3-6 days

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 63-1690

BRACKET-GUIDE, IDLER

$

$

Not available

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

22

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

23

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

24

Toro 94-9512

DISCONTINUED
(Superseded to 94-9512-01)

$

$

Not available

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 94-9530

V-BELT, HEX

$224.99

$

Usually ships in 3-6 days

0

28

Toro 94-9513

See Supercession: 94-9513-01
(Superseded to 94-9513-01)

$

$

Not available

29

Toro 63-1540

See Supercession: 63-1540-03
(Superseded to 63-1540-03)

$73.99

$

In Stock, only 2 left!

0

30

Toro 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

0

31

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

32

Toro 94-9549

SCREW-HH

$

$

Not available

33

Toro 94-4722

SHAFT-DRIVE

$

$

Not available

34

Toro 32121-48

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

35

Toro 323-19

SCREW-HH

$2.49

$

In Stock, Qty 9

0

36

Toro 70-2560

See Supercession: 93-6697
(Superseded to 93-6697)

$15.99

$

Usually ships in 3-6 days

0

37

Toro 94-9492

STUD - IDLER PULLEY

$

$

Not available

38

Toro 94-9569

SPACER

$

$

Not available

39

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0
