78483 - Toro 48" Blower & Drive Kit, Titan HD 1500 or 2000 Mower (SN: 400000000 - 999999999) BLOWER AND DRIVE ASSEMBLY Parts Diagram

48" Blower & Drive Kit, Titan HD 1500 or 2000 Mower

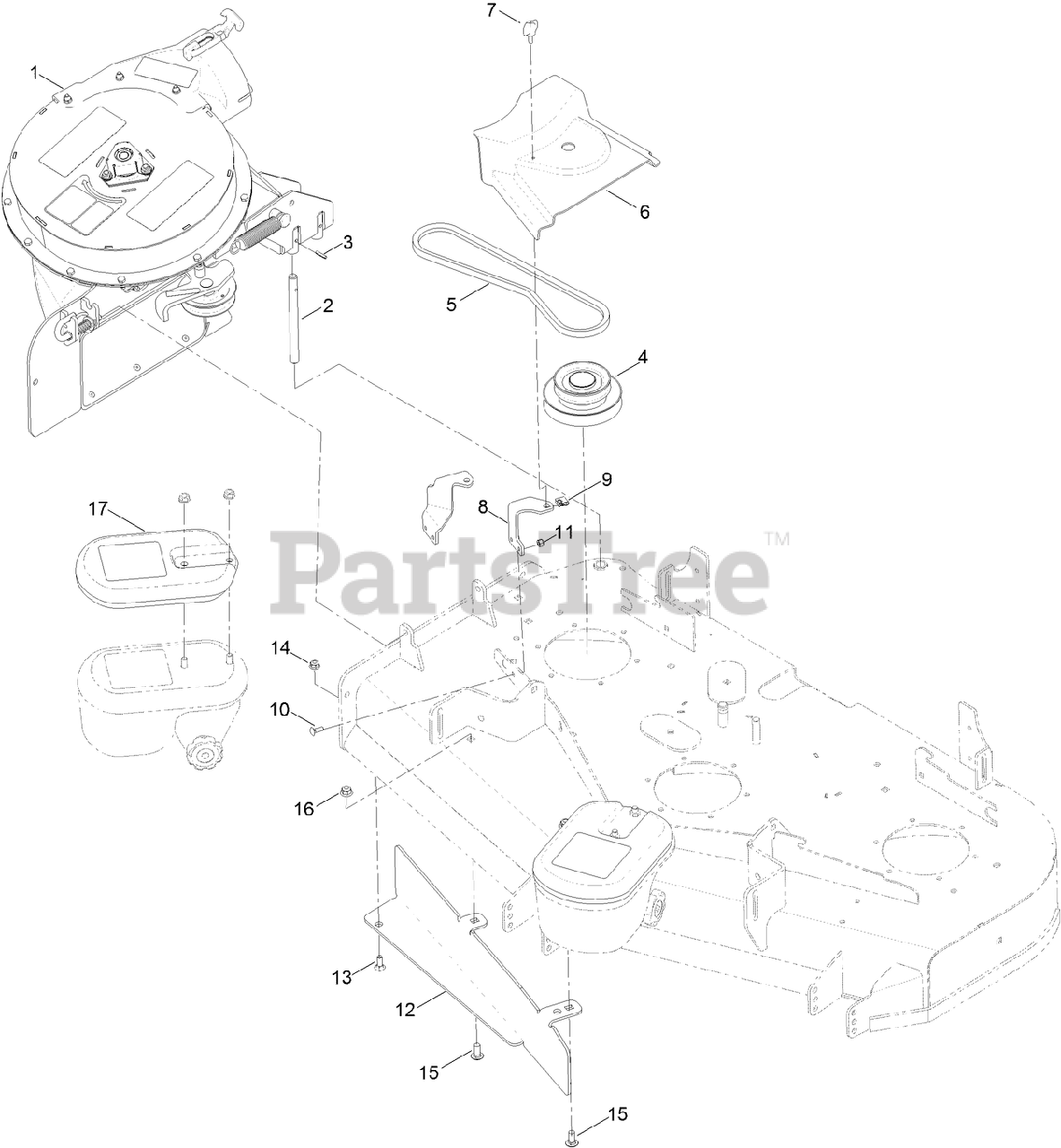

BLOWER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 126-9788

BLOWER ASM

$3218.99

$

Usually ships in 3-6 days

0

2

Toro 1-353050

SHAFT-CATCHER, GRASS

$19.99

$

In Stock, only 1 left!

0

3

Toro 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

4

Toro 126-7715

DRIVE-JACKSHAFT

$169.99

$

Usually ships in 3-6 days

0

5

Toro 121-3224

BELT-V

$80.99

$

Usually ships in 3-6 days

0

6

Toro 117-8642

COVER-BELT

$253.99

$

Usually ships in 3-6 days

0

7

Toro 98-8332

KNOB

$5.99

$

In Stock, Qty 20+

0

8

Toro 115-3637-01

BRACKET-COVER, BELT

$28.99

$

Usually ships in 3-6 days

0

9

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 120-3249-01

BAFFLE-BAGGER

$137.99

$

Usually ships in 3-6 days

0

13

Toro 3230-16

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 126-9684

WEIGHT

$144.99

$

Usually ships in 3-6 days

0
