78490 - Toro Bagger for 100 Series Z Master (SN: 220000501 - 220999999) (2002) Bagger Mounting Frame and Fan Drive Idler Assembly Parts Diagram

Bagger for 100 Series Z Master

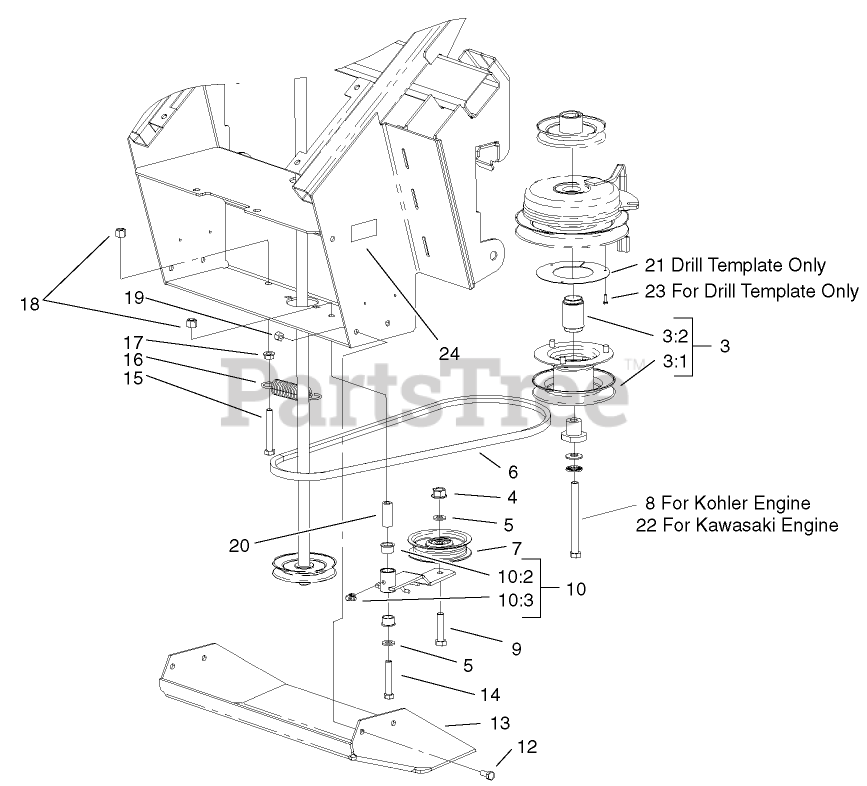

Bagger Mounting Frame and Fan Drive Idler Assembly Parts Diagram

  • Title

3

Toro 105-8165

PULLEY ASM W/SPACER

$625.99

$

Usually ships in 3-6 days

0

3:1

Toro 105-8224

PULLEY ASSEMBLY

$

$

Not available

3:2

Toro 105-5508

DISCONTINUED

$

$

Not available

4

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 88-6260

V-BELT

$60.99

$

In Stock, only 2 left!

0

7

Toro 92-7084

PULLEY-IDLER, FLAT

$42.99

$

In Stock, only 2 left!

0

8

Toro 104-4675

BOLT-CLUTCH

$

$

Not available

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 105-5525

IDLER ARM ASM W/BUSHINGS

$

$

Not available

10:2

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

10:3

Toro 302-60

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

12

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

13

Toro 105-8180-03

DISCONTINUED

$

$

Not available

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

21

Toro 106-3304-03

TEMPLATE-CLUTCH

$

$

Not available

22

Toro 3212-26

SCREW-HH

$25.99

$

Usually ships in 3-6 days

0

23

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

24

Toro 105-9377

DECAL-CONVERSION, CE

$

$

Not available
