78496 - Toro 44" Finishing Kit for Z100 Twin Soft Bagger 44in Finishing Assembly Parts Diagram

44" Finishing Kit for Z100 Twin Soft Bagger

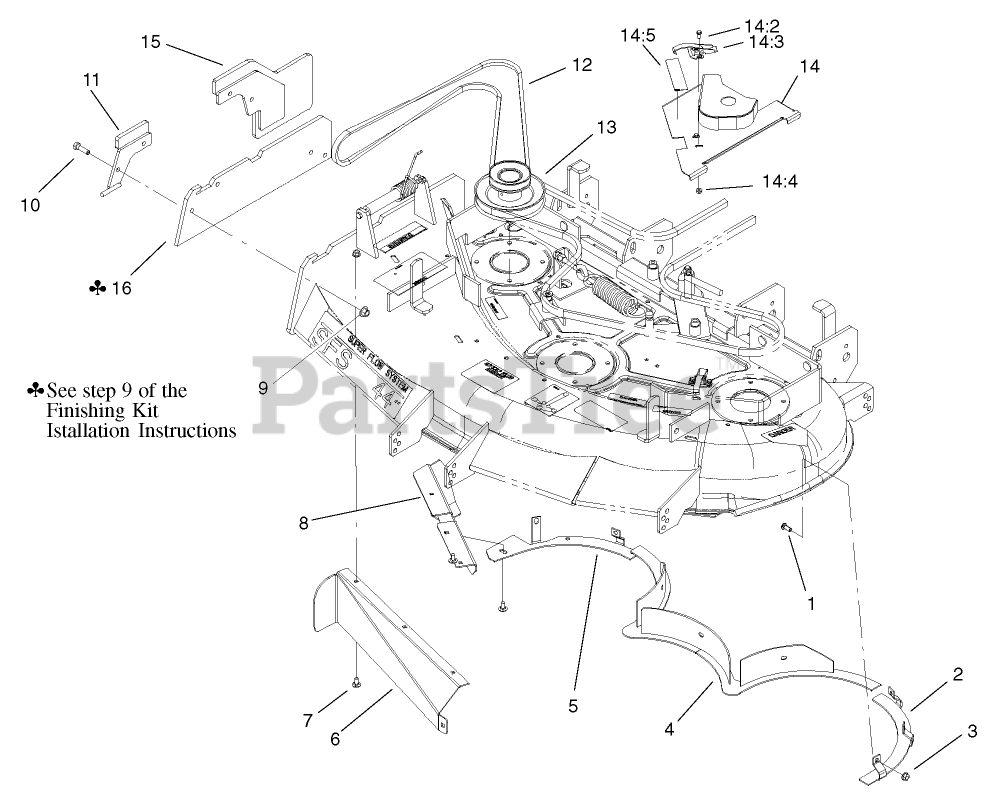

44in Finishing Assembly Parts Diagram

  • Title

1

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

2

Toro 106-3021-01

BAFFLE-REAR, LH

$

$

Not available

3

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

4

Toro 106-3015-01

CENTER BAFFLE ASM

$

$

Not available

5

Toro 106-3022-01

BAFFLE-REAR, RH

$

$

Not available

6

Toro 106-3023-01

BAFFLE-DISCHARGE, FRONT

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

8

Toro 106-3020-01

BAFFLE-DISCHARGE, REAR

$

$

Not available

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

10

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 106-2098-03

FRONT MOUNTING PLATE ASM

$

$

Not available

12

Toro 106-3038

BELT-V

$90.99

$

Usually ships in 3-6 days

0

13

Toro 105-5897

DOUBLE PULLEY ASM

$656.99

$

Usually ships in 3-6 days

0

14

Toro 106-3078

DISCONTINUED

$

$

Not available

14:2

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

14:3

Toro 249-21

CLAMP-SLOTTED

$22.99

$

In Stock, only 2 left!

0

14:4

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

14:5

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

15

Toro 106-2099-03

REAR MOUNTING PLATE ASM

$

$

Not available

16

Toro 106-2095-03

TEMPLATE

$

$

Not available

99

Toro 55-4940-03

BLADE-LIFT, HIGH

Note: Not illustrated

$42.99

$

In Stock, only 1 left!

0
