78497 - Toro 52" Finishing Kit for Z100 Twin Soft Bagger 52in Finishing Assembly Parts Diagram

52" Finishing Kit for Z100 Twin Soft Bagger

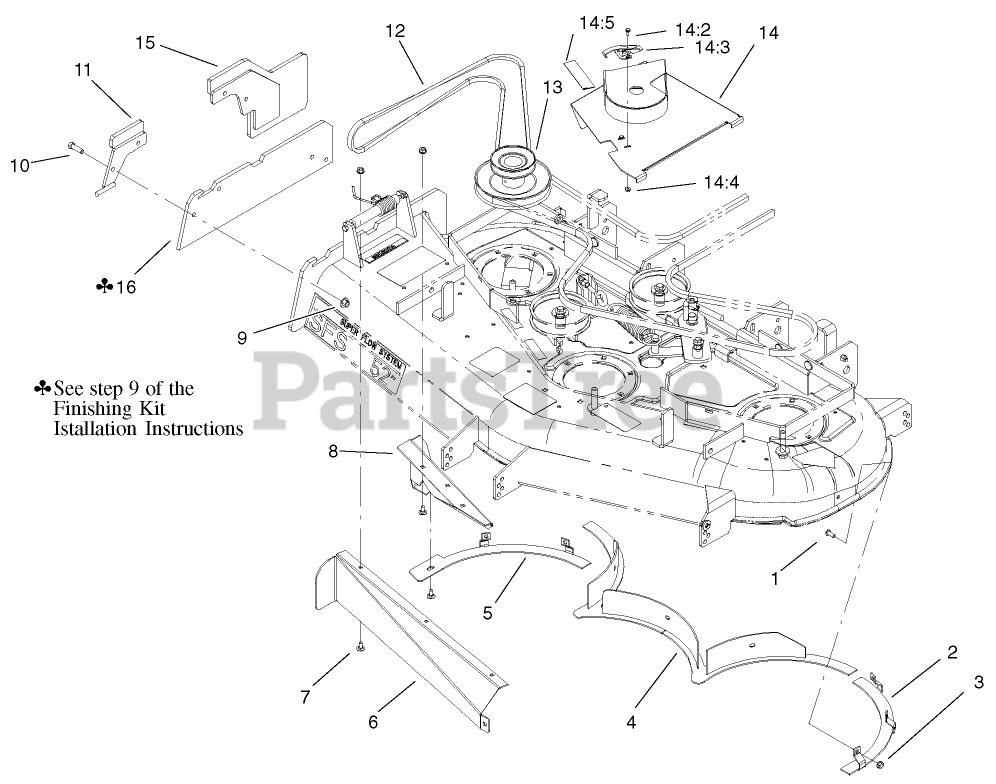

52in Finishing Assembly Parts Diagram

  • Title

1

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

2

Toro 106-3031-01

BAFFLE-REAR, LH

$

$

Not available

3

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

4

Toro 106-3065-01

See Supercession: 106-0900-01
(Superseded to 106-0900-01)

$

$

Not available

5

Toro 106-3032-01

BAFFLE-REAR, RH

$

$

Not available

6

Toro 106-3033-01

DISCONTINUED

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

8

Toro 106-3030-01

BAFFLE-DISCHARGE, REAR

$

$

Not available

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

10

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 106-2098-03

FRONT MOUNTING PLATE ASM

$

$

Not available

12

Toro 106-3038

BELT-V

$90.99

$

Usually ships in 3-6 days

0

13

Toro 105-5898

DOUBLE PULLEY ASM

$550.99

$

Usually ships in 3-6 days

0

14

Toro 106-3079

COVER ASM

$

$

Not available

14:2

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

14:3

Toro 249-21

CLAMP-SLOTTED

$22.99

$

In Stock, only 2 left!

0

14:4

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

14:5

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

15

Toro 106-3375-03

See Supercession: 106-3392-03
(Superseded to 106-3392-03)

$

$

Not available

16

Toro 106-2096-03

PLATE-TEMPLATE, 52

$

$

Not available

99

Toro 56-2390-03

BLADE-18 INCH

Note: Not illustrated

$41.99

$

In Stock, only 4 left!

0
