78500 - Toro DFS Vac Collection System for 100 Series Z Master (SN: 240000001 - 240999999) (2004) Fan Drive Idler Assembly Parts Diagram

DFS Vac Collection System for 100 Series Z Master

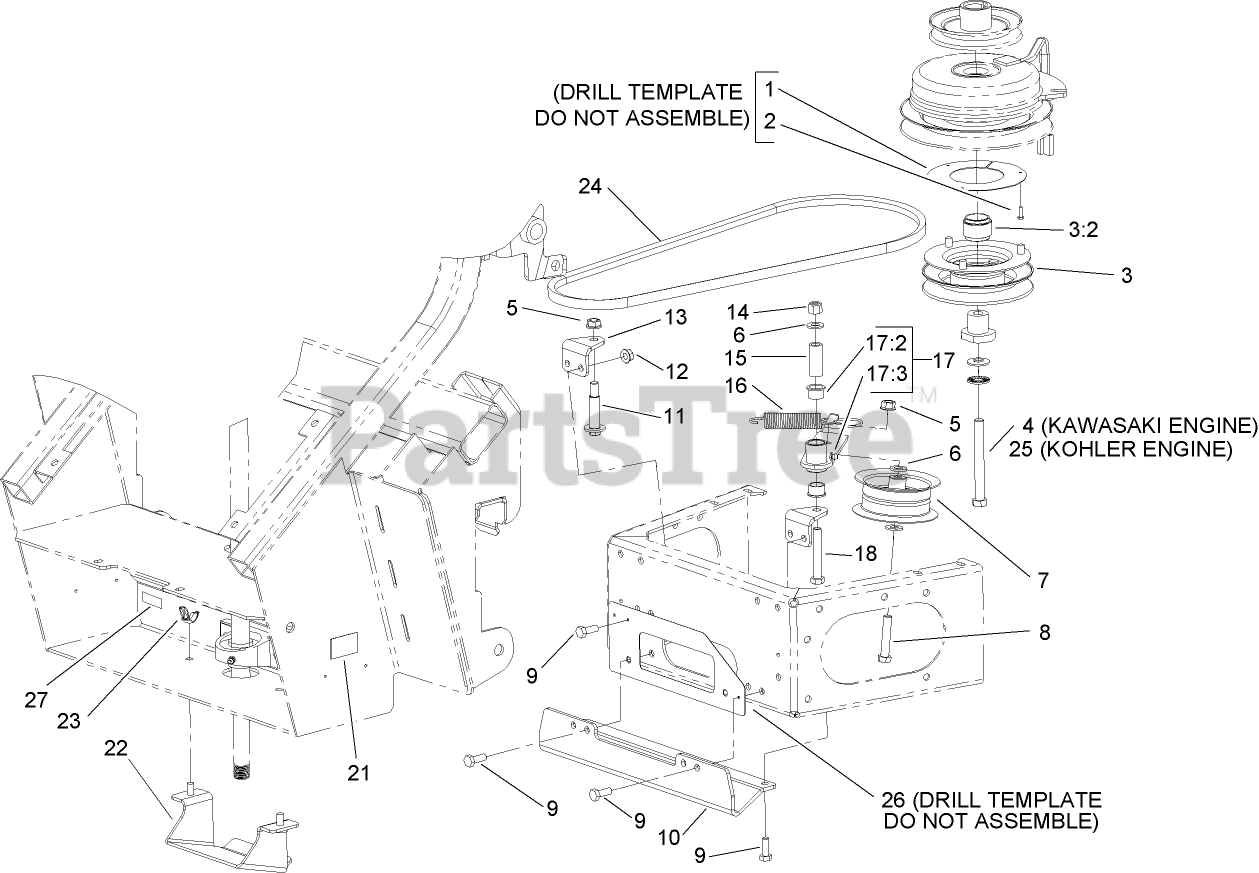

Fan Drive Idler Assembly Parts Diagram

  • Title

1

Toro 106-3304-03

TEMPLATE-CLUTCH

$

$

Not available

2

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

3

Toro 106-7139

PULLEY ASM

$

$

Not available

3:2

Toro 106-7137

SPACER-PULLEY

$

$

Not available

4

Toro 3212-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

5

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 88-5630

See Supercession: 132-4717
(Superseded to 132-4717)

$25.99

$

In Stock, Qty 5

0

8

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

10

Toro 106-7121-03

SKID

$

$

Not available

11

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 2 left!

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 106-7146-03

BRACKET-MOUNT, IDLER

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

16

Toro 106-8962

SPRING-EXTENSION

$45.99

$

Usually ships in 3-6 days

0

17

Toro 106-7145

IDLER ARM ASM

$

$

Not available

17:2

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

17:3

Toro 302-55

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 105-9377

DECAL-CONVERSION, CE

$

$

Not available

22

Toro 106-7123-03

PULLEY GUARD ASM

$

$

Not available

23

Toro 32103-2

NUT-WING

$0.99

$

Usually ships in 3-6 days

0

24

Toro 88-6260

V-BELT

$60.99

$

In Stock, only 2 left!

0

25

Toro 3212-16

SCREW-HH

$21.99

$

In Stock, Qty 11

0

26

Toro 106-8973-03

TEMPLATE-TRACTION FRAME

$

$

Not available

27

Toro 107-1613

DECAL-GREASE

$7.49

$

Usually ships in 3-6 days

0
