78514 - Toro DFS Vac Collection System (SN: 314000001 - 314999999) (2014) Fan Drive Idler Assembly Parts Diagram

DFS Vac Collection System

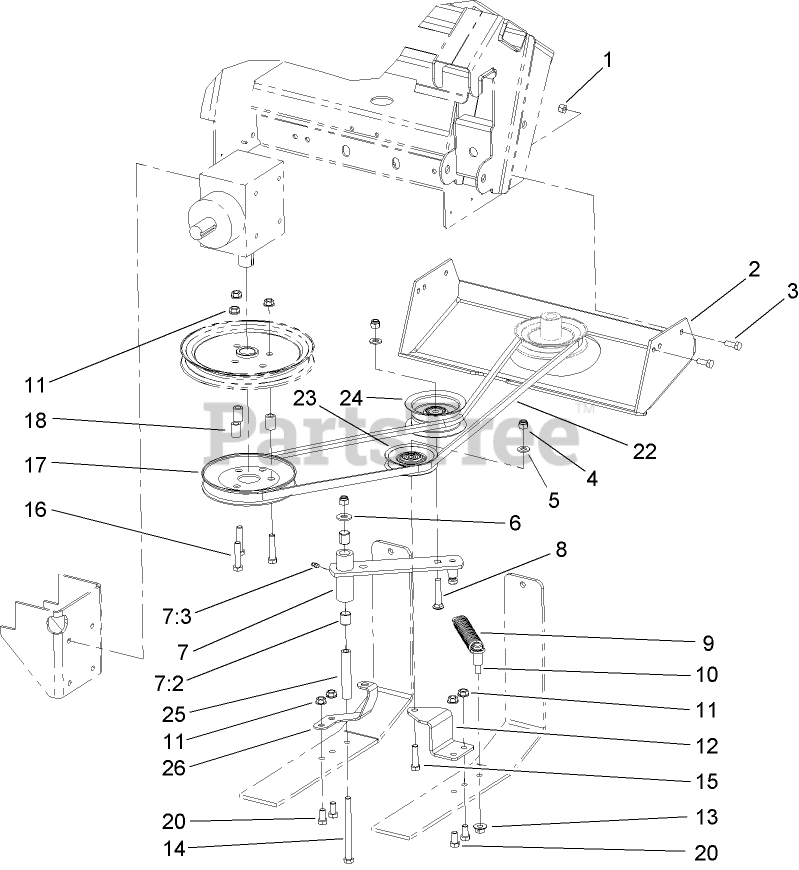

Fan Drive Idler Assembly Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 105-8236-03

PLATE-SKID

$449.99

$

Usually ships in 3-6 days

0

3

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 110-0884

IDLER ARM ASM

$

$

Not available

7:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

7:3

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

8

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 18

0

9

Toro 76-9430-03

SPRING-EXTENTION

$33.99

$

Usually ships in 3-6 days

0

10

Toro 110-3841

ANCHOR-SPRING

$159.99

$

Usually ships in 3-6 days

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 110-0855-03

BRACKET-MOUNT, PULLEY

$90.99

$

Usually ships in 3-6 days

0

13

Toro 32128-19

NUT-HF

$1.99

$

In Stock, Qty 20+

0

14

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 110-0896

PULLEY-A

$124.99

$

Usually ships in 3-6 days

0

18

Toro 110-3855

SPACER

$21.99

$

Usually ships in 3-6 days

0

20

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Toro 110-0861

BELT-V

$108.99

$

Usually ships in 3-6 days

0

23

Toro 103-0983

SHEAVE

$75.99

$

In Stock, only 2 left!

0

24

Toro 88-5630

See Supercession: 132-4717
(Superseded to 132-4717)

$25.99

$

In Stock, Qty 5

0

25

Toro 103-0040

BUSHING-TIGHTENER, PIVOT

$19.99

$

In Stock, only 3 left!

0

26

Toro 112-2321-03

BRACKET-LOCK, IDLER ARM

$42.99

$

Usually ships in 3-6 days

0
