78514 - Toro DFS Vac Collection System (SN: 314000001 - 314999999) (2014) Hopper Frame and Bagger Frame Assembly Parts Diagram

DFS Vac Collection System

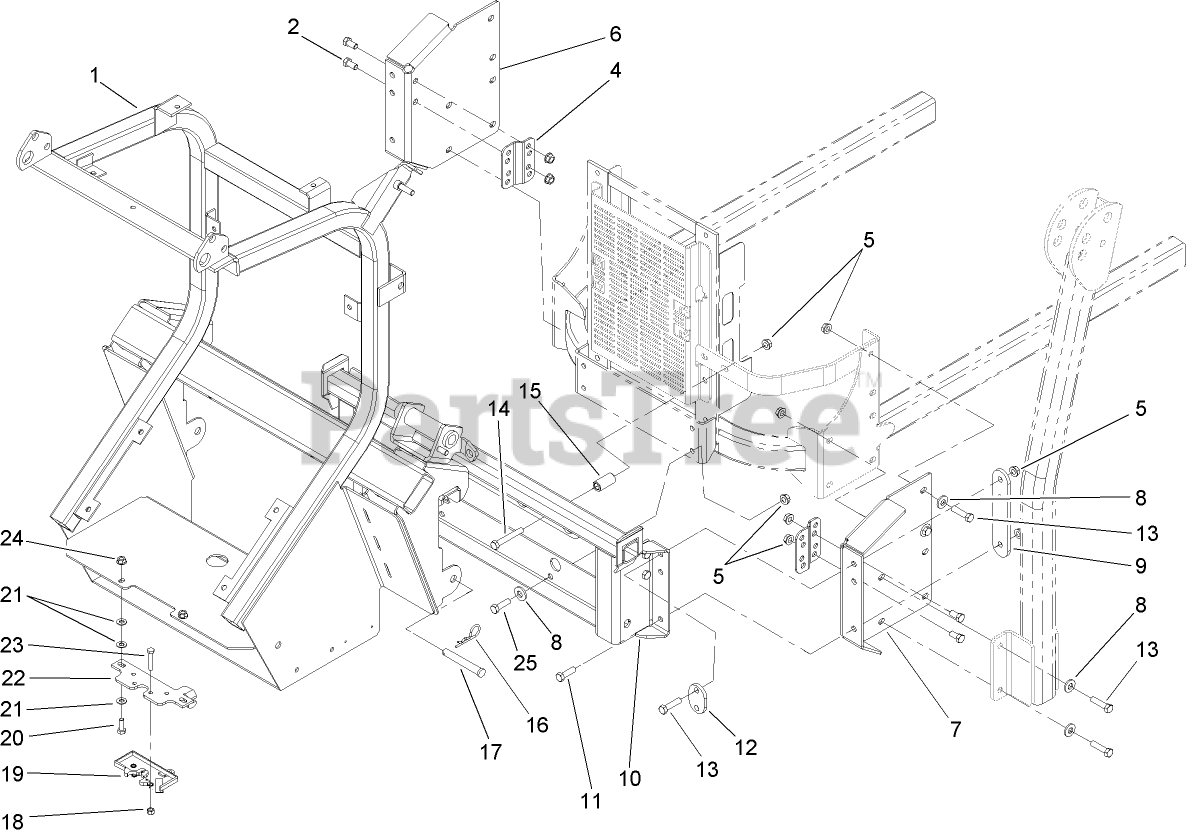

Hopper Frame and Bagger Frame Assembly Parts Diagram

  • Title

1

Toro 106-8972-03

HOPPER FRAME ASM

$

$

Not available

2

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

4

Toro 107-4156-03

BRACKET-STIFFENER

$37.99

$

Usually ships in 3-6 days

0

5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Toro 110-0885-03

BRACKET-MOUNT, BAGGER, LH

$

$

Not available

7

Toro 110-0886-03

BRACKET-MOUNT, BAGGER, RH

$274.99

$

Usually ships in 3-6 days

0

8

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Toro 105-9744-03

SPACER-FRAME

$

$

Not available

10

Toro 105-9719-03

BAGGER MOUNT ASM

$722.99

$

Usually ships in 3-6 days

0

11

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Toro 106-3320-03

SPACER-FRAME, SHORT

$22.99

$

Usually ships in 3-6 days

0

13

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 110-3726

SPACER

$25.99

$

Usually ships in 3-6 days

0

16

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

17

Toro 283-69

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 105-9663

LATCH-ROTOR

$313.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 105-8237

BRACKET-LATCH

$85.99

$

Usually ships in 3-6 days

0

23

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
