78524 - Toro Twin Bagger for Grandstand Mower (SN: 416433627 - 999999999) Bagger Assembly Parts Diagram

Twin Bagger for Grandstand Mower

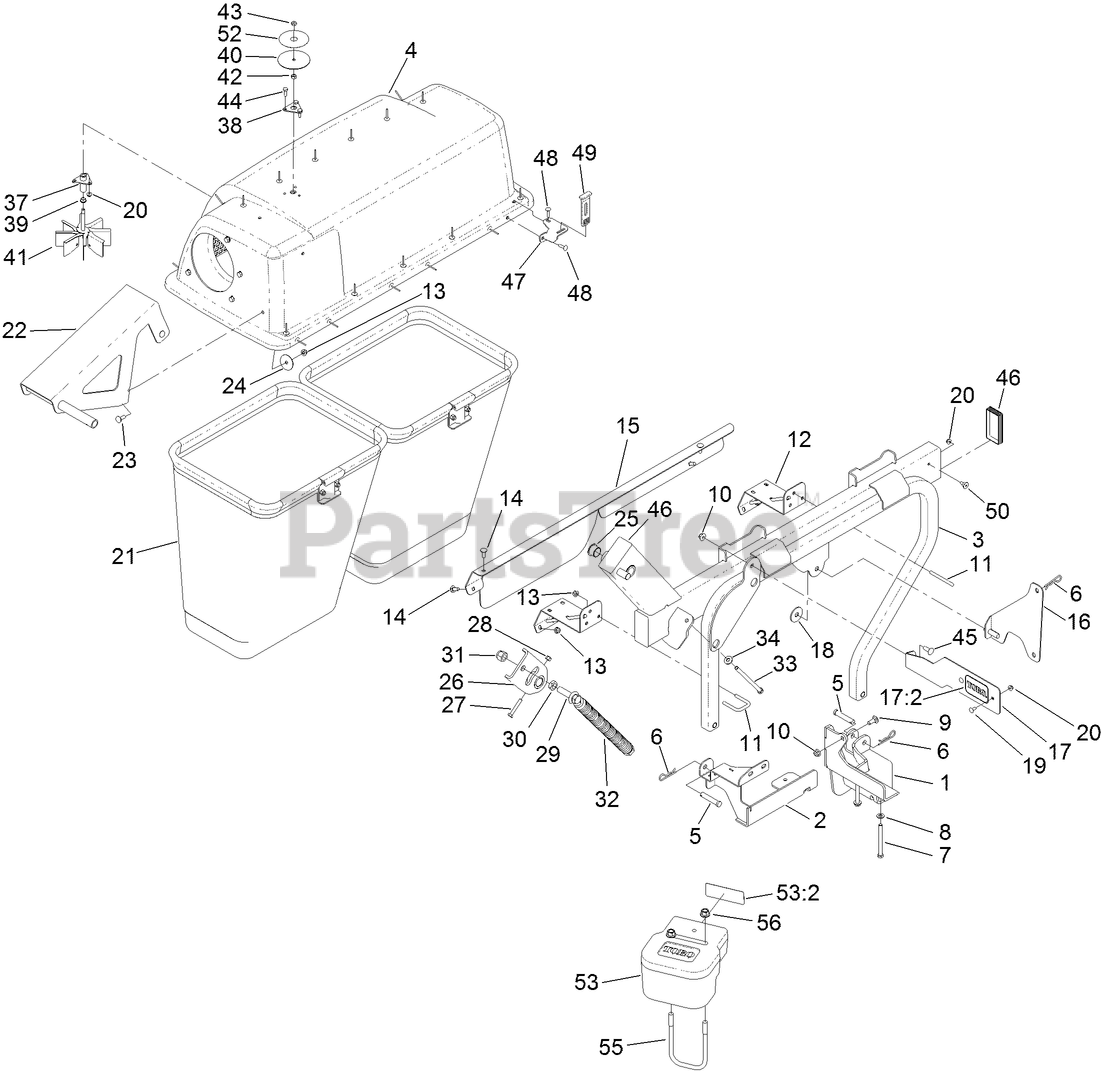

Bagger Assembly Parts Diagram

  • Title

1

Toro 133-8655-01

MOUNT-BAGGER

$235.99

$

Usually ships in 3-6 days

0

2

Toro 133-8670-01

BRACKET-EXTENSION, TUBE

$173.99

$

Usually ships in 3-6 days

0

3

Toro 136-4055-03

FRAME-BAGGER

$1156.99

$

Usually ships in 3-6 days

0

4

Toro 138-4942

HOOD ASM

$892.99

$

Usually ships in 3-6 days

0

5

Toro 92-2743

PIN-CLEVIS

$26.99

$

In Stock, only 2 left!

0

6

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

7

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 301950

U-BOLT-SQUARE

$

$

Currently unavailable

12

Toro 133-8706-03

COVER, WHEEL

$128.99

$

Usually ships in 3-6 days

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

15

Toro 133-8707-03

COVER-WHEEL

$99.99

$

Usually ships in 3-6 days

0

16

Toro 133-8668-03

MOUNT-SUPPORT, BAGGER

$98.99

$

Usually ships in 3-6 days

0

17

Toro 136-4072

BRACKET-MOUNT, BAGGER W/DECAL

$55.99

$

In Stock, only 2 left!

0

17:2

Toro 70-2200

DECAL

$5.99

$

In Stock, only 4 left!

0

18

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, only 2 left!

0

19

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 133-8700

BAG AND FRAME ASM

$

$

Not available

22

Toro 136-4060-03

PIVOT-HOOD

$219.99

$

Usually ships in 3-6 days

0

23

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-653036

WASHER

$5.99

$

In Stock, only 2 left!

0

25

Toro 127-0369

BUSHING

$8.49

$

Usually ships in 3-6 days

0

26

Toro 136-4070-03

BELLCRANK ASM

$91.99

$

Usually ships in 3-6 days

0

27

Toro 112-3305

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

28

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 327-7

SCREW-HH

$14.99

$

In Stock, only 1 left!

0

30

Toro 3218-6

NUT-JAM

$7.49

$

In Stock, Qty 9

0

31

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

32

Toro 116-0000

SPRING-EXTENSION

$153.99

$

Usually ships in 3-6 days

0

33

Toro 323-58

BOLT-TAP, HH

$5.99

$

Usually ships in 3-6 days

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

37

Toro 136-4100-03

MOUNT-FILL INDICATOR

$98.99

$

Usually ships in 3-6 days

0

38

Toro 136-4099-03

PLATE-FILL INDICATOR

$10.99

$

Usually ships in 3-6 days

0

39

Toro 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, only 2 left!

0

40

Toro 136-4104-03

PLATE-FILL INDICATOR

$17.99

$

Usually ships in 3-6 days

0

41

Toro 136-4140-03

BAG FILL FAN ASM

$117.99

$

Usually ships in 3-6 days

0

42

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.99

$

Usually ships in 3-6 days

0

43

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

44

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

46

Toro 136-4112

CAP-END

$19.99

$

Usually ships in 3-6 days

0

47

Toro 136-4115-03

BRACKET-STRAP

$29.99

$

Usually ships in 3-6 days

0

48

Toro 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

49

Toro 131-8402

STRAP-HOLD DOWN

$5.49

$

In Stock, Qty 6

0

50

Toro 125-1122

SCREW

$3.99

$

In Stock, Qty 9

0

52

Toro 136-5663

DECAL-ROTATION INDICATOR

$14.99

$

Usually ships in 3-6 days

0

53

Toro 106-0872

WEIGHT ASM

$991.99

$

Usually ships in 3-6 days

0

53:2

Toro 136-4053

DECAL-WARNING, COUNTERWEIGHT

$20.99

$

Usually ships in 3-6 days

0

55

Toro 136-4090

U-BOLT

$37.99

$

Usually ships in 3-6 days

0

56

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0
