78555 - Toro 72" E-Z Vac Triple Bagging System (SN: 412200000 - 418159999) Hood Assembly Parts Diagram

72" E-Z Vac Triple Bagging System

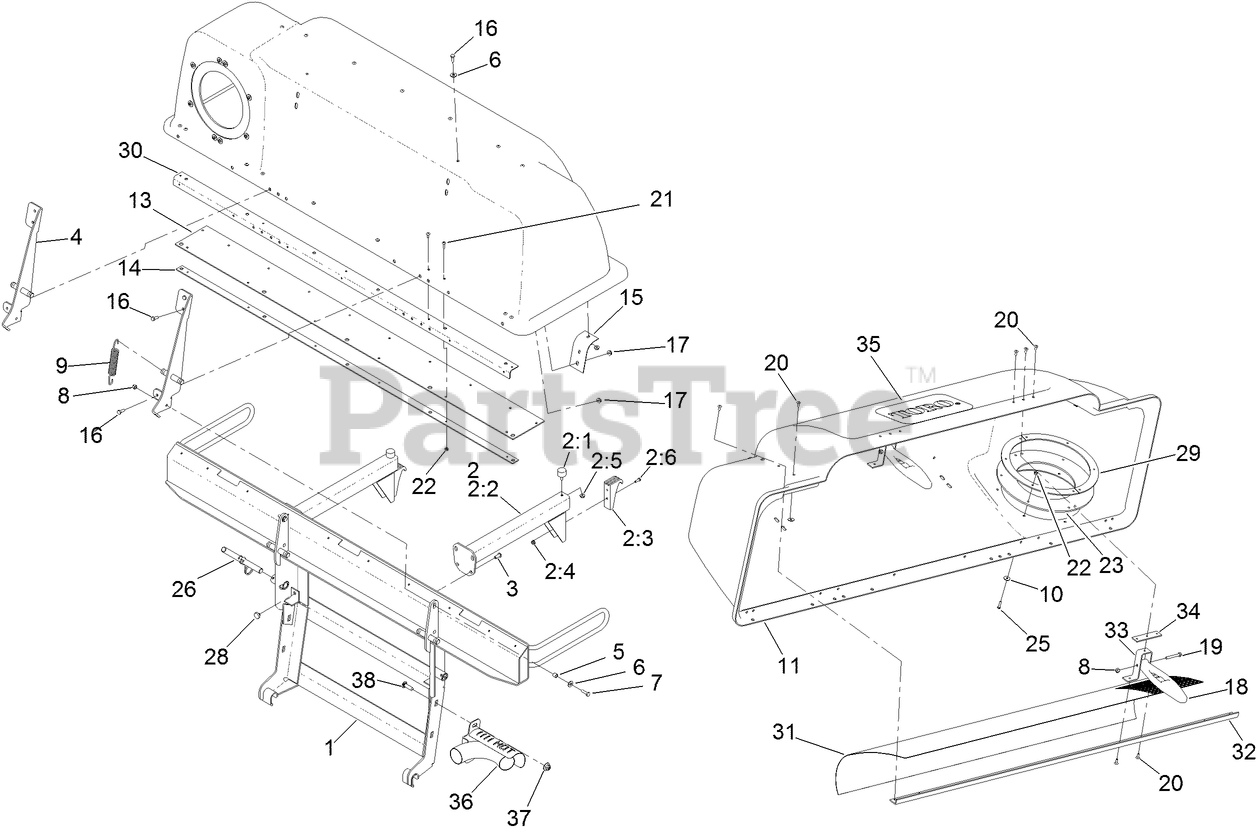

Hood Assembly Parts Diagram

  • Title

1

Toro 109-8706-03

FRAME-TRIPLE BAGGER

$1242.99

$

Usually ships in 3-6 days

0

2

Toro 103-5166

BAG SUPPORT ASM

$189.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-5124-03

SUPPORT-BAG

$180.99

$

Usually ships in 3-6 days

0

2:3

Toro 1-653404

CATCH

$42.99

$

In Stock, only 2 left!

0

2:4

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 7

0

2:5

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

2:6

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

4

Toro 109-8351-03

HINGE

$110.99

$

Usually ships in 3-6 days

0

5

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

7

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 1-653544

SPRING-EXTENSION

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

11

Toro 112-1760

HOOD ASM

$1496.99

$

Usually ships in 3-6 days

0

13

Toro 103-0451

SEAL-HINGE

$316.99

$

Usually ships in 3-6 days

0

14

Toro 103-0452-03

PLATE-BACKING

$45.99

$

Usually ships in 3-6 days

0

15

Toro 103-0391

REINFORCEMENT-HOOD, BAGGER

$13.99

$

Usually ships in 3-6 days

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-653403

LATCH

$90.99

$

In Stock, only 2 left!

0

19

Toro 321-11

SCREW-HH

$0.99

$

In Stock, only 1 left!

0

20

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

21

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 103-0439

SEAL-TUBE

$53.99

$

In Stock, only 2 left!

0

25

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

26

Toro 116-0458

PIN-MOUNT, BAGGER

$17.99

$

In Stock, Qty 10

0

28

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

29

Toro 103-0378

CLAMP-SEAL

$36.99

$

Usually ships in 3-6 days

0

30

Toro 103-0382-03

STIFFENER-BAGGER, TOP

$71.99

$

Usually ships in 3-6 days

0

31

Toro 103-0440

SCREEN-BAGGER

$35.99

$

In Stock, only 2 left!

0

32

Toro 103-0380-03

SUPPORT-SCREEN

$63.99

$

Usually ships in 3-6 days

0

33

Toro 103-0379

BRACKET-MOUNT

$45.99

$

Usually ships in 3-6 days

0

34

Toro 103-0376

PLATE-LATCH, REINFORCEMENT

$9.49

$

In Stock, only 1 left!

0

35

Toro 67-7310

DECAL

$70.99

$

Usually ships in 3-6 days

0

36

Toro 116-2804

EXHAUST DIVERTER ASM

$

$

Not available

37

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0
