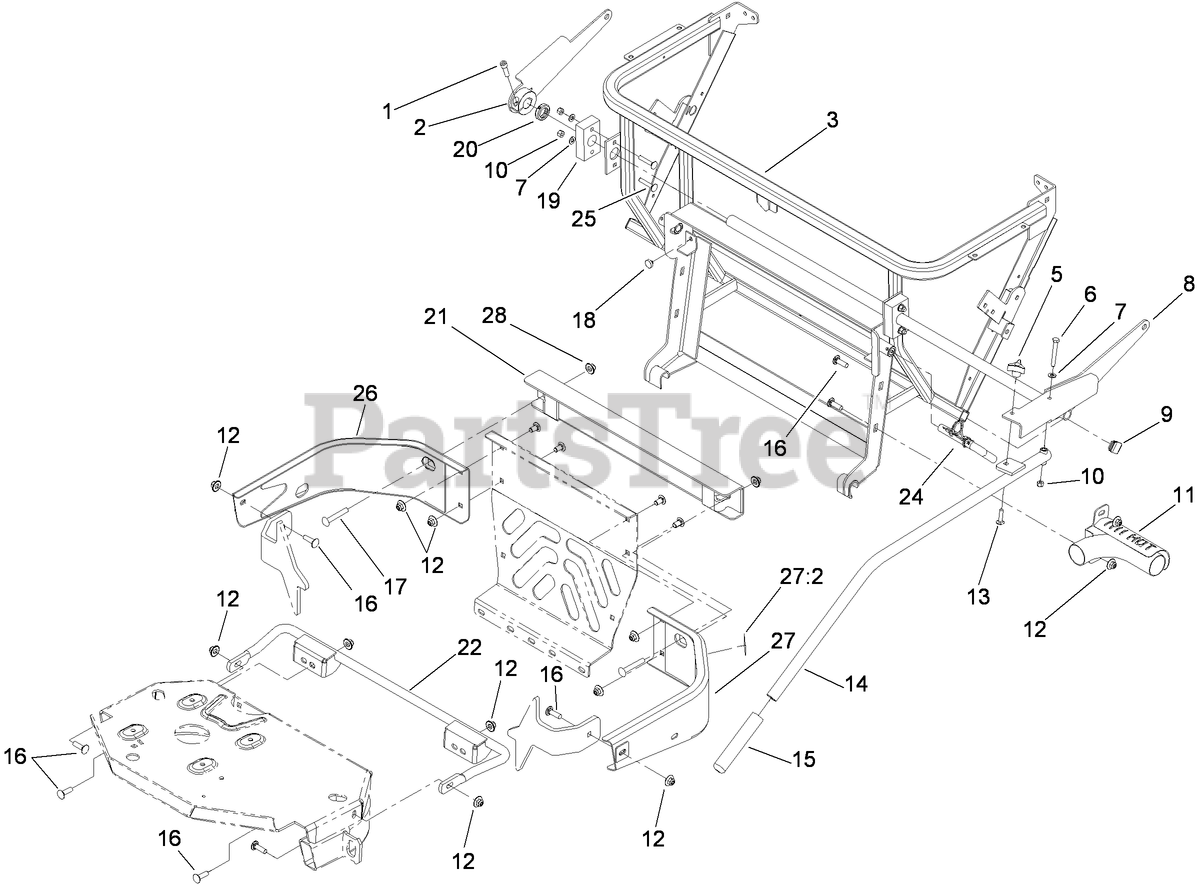

78566 - Toro 48" & 52" E-Z Vac DFS Collection System (SN: 405700000 - 411399999) Bagger Mount Assembly Parts Diagram

48" & 52" E-Z Vac DFS Collection System

Bagger Mount Assembly Parts Diagram

  • Title

1

Toro 3274-1

SCREW-HSH

$9.49

$

Usually ships in 3-6 days

0

2

Toro 103-8835-03

See Supercession: 103-8839
(Superseded to 103-8839)

$182.99

$

Usually ships in 3-6 days

0

3

Toro 109-8701-03

FRAME ASM

$1637.99

$

Usually ships in 3-6 days

0

5

Toro 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

6

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 103-5114-03

BELLCRANK

$259.99

$

Usually ships in 3-6 days

0

9

Toro 103-3202

CAP

$1.49

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-9338

See Supercession: 116-2804
(Superseded to 116-2804)

$

$

Not available

12

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

14

Toro 117-6164-03

HANDLE ASM

$215.99

$

Usually ships in 3-6 days

0

15

Toro 103-7115

HANDLE-GRIP

$8.99

$

Usually ships in 3-6 days

0

16

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

17

Toro 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 5

0

18

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

19

Toro 103-4402

BEARING

$49.99

$

Usually ships in 3-6 days

0

20

Toro 103-4433

SHAFT-COLLAR

$7.99

$

Usually ships in 3-6 days

0

21

Toro 116-0473-03

MOUNT-BAGGER, UPPER

$267.99

$

Usually ships in 3-6 days

0

22

Toro 109-9248

MOUNT-BAGGER, LOWER

$230.99

$

Usually ships in 3-6 days

0

24

Toro 116-0458

PIN-MOUNT, BAGGER

$17.99

$

In Stock, Qty 10

0

25

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 19

0

26

Toro 116-0057-03

BUMPER-RH

$247.99

$

Usually ships in 3-6 days

0

27

Toro 116-0180

LH BUMPER ASM

$167.99

$

Usually ships in 3-6 days

0

27:2

Toro 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

28

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0
